4 Axis Bridge Saw Supplier in China
- As a four-axis bridge saw supplier with a strong presence in China, ElephMax has a mature manufacturing system.
- We have established a dedicated foreign trade service team, providing one-on-one follow-up from inquiry to commissioning.
- We are familiar with voltage, certifications and customs clearance requirements of various countries, and can provide tailored suggestions based on your local working conditions.
- We adhere to the flexible principle of accepting small-batch customization and handling urgent orders with expedited delivery.
What Is the 4 Axis Bridge Saw?

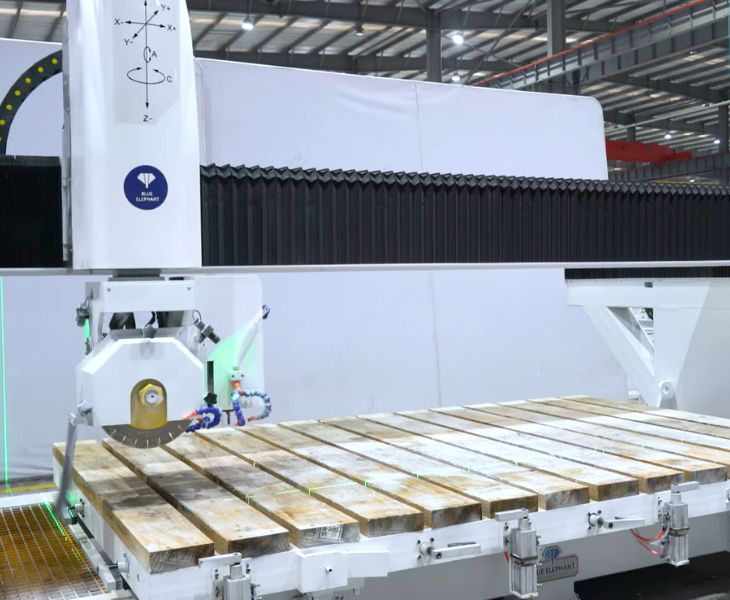

A traditional 3-axis machine requires your manual operator intervention to turn heavy slabs for cross-cuts. But our 4-axis bridge saw is a fully automatic CNC stone processing equipment. It has four independent moving axes: X-axis (front and back), Y-axis (left and right), and Z-axis (up and down), along with a C-axis that can rotate 360° and an A-axis that can tilt from 0° to 45°.
These four axes work in coordination to enable the saw blade and the main shaft to approach the stone from any angle. You can achieve precise cutting of straight lines, beveled edges, arcs, and various irregular contours by our machine.
4 Axis Bridge Saw Types

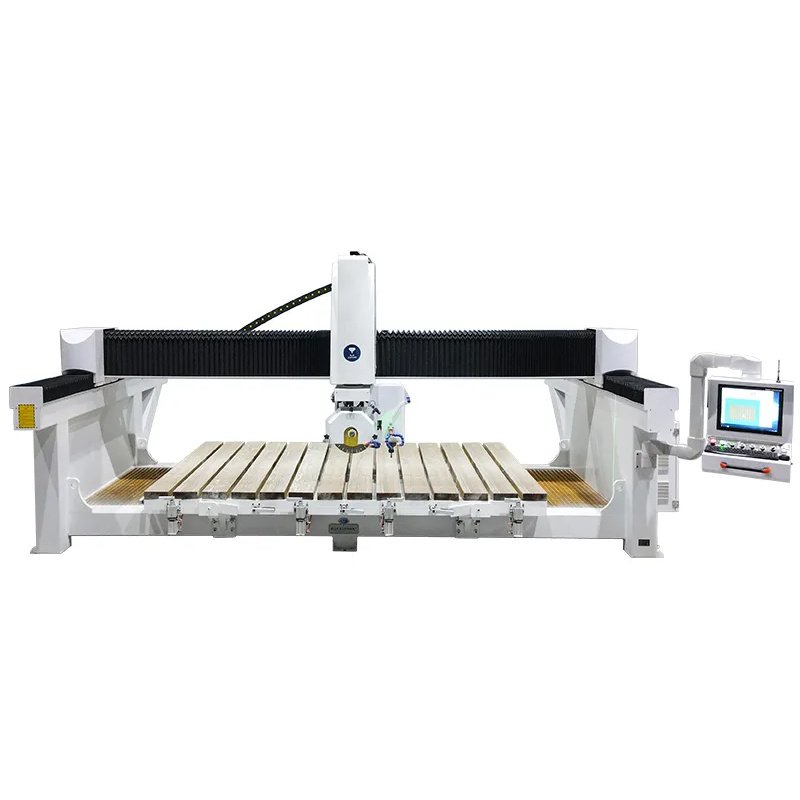

It has a 5.5kw water-cooled spindle and works alternately with its saw blade. You can use it for cross cutting, vertical cutting, etc. But it is not for edge grinding and polishing.

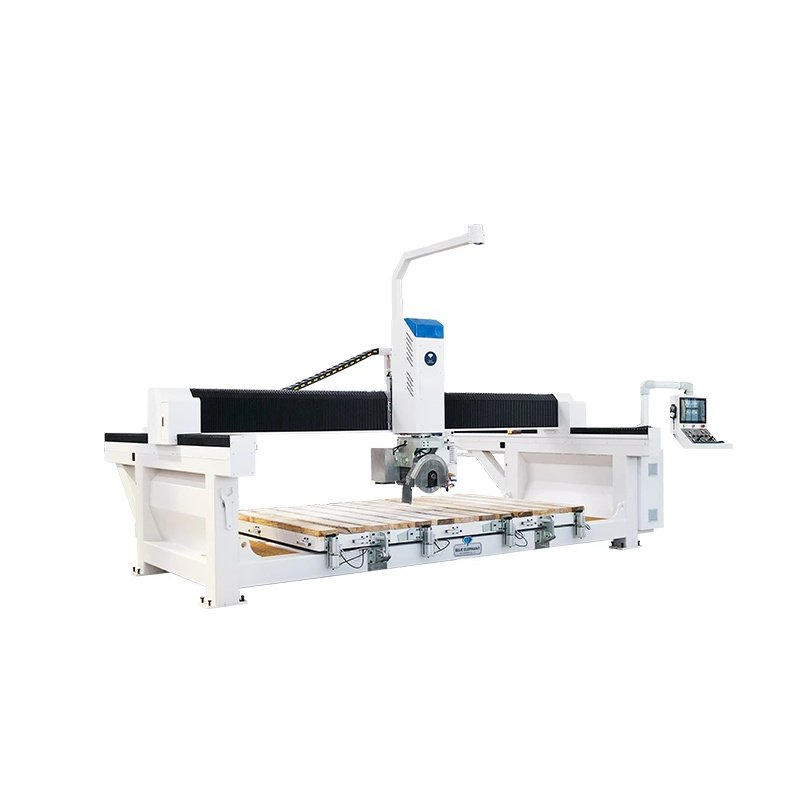

This machine is equipped with an industrial camera and a suction cup with the material moving function. You can use it to avoid cutting material waste.

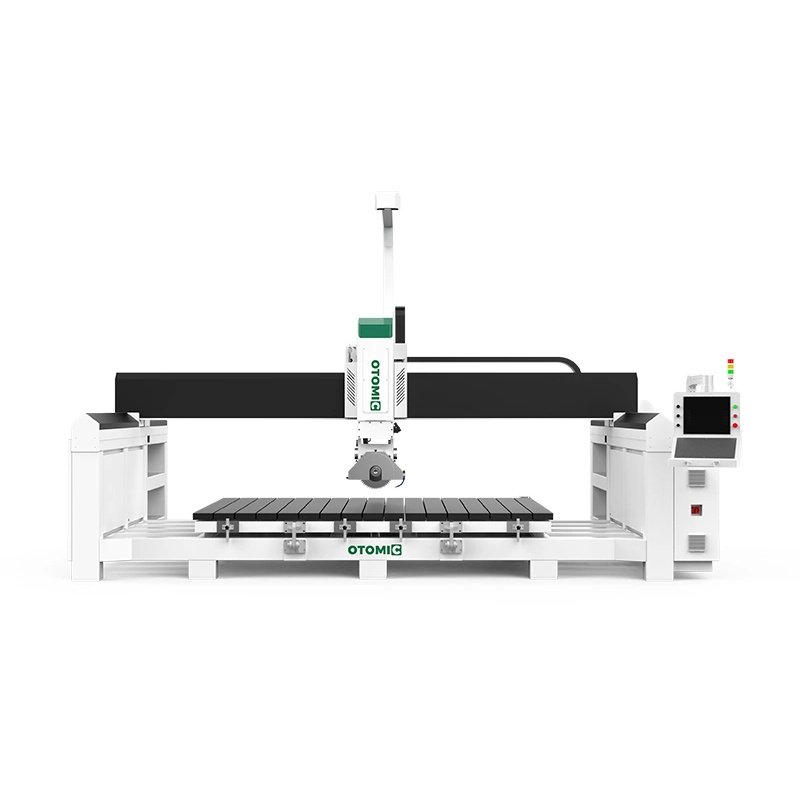

ElephMax adds a camera and infrared head for positioning accuracy and precision. Its axis can rotate 45° to cut stones, and you can use it for four-sided chamfering, plane grooving, basin hole digging, etc.
ElephMax’s 4 Axis Bridge Saw Features
Our machine features a primary high-torque saw blade drive for linear slab breakdown and an integrated 5.5 kW water-cooled auxiliary spindle.
We use a heavy cast-iron and welded steel bed frame. Heat treatment relieves stress and prevents deformation under continuous heavy load.
The user-friendly CNC operation interface is compatible with standard CAD/CAM DXF files, helping the workshop to operate efficiently from the very first day of production.

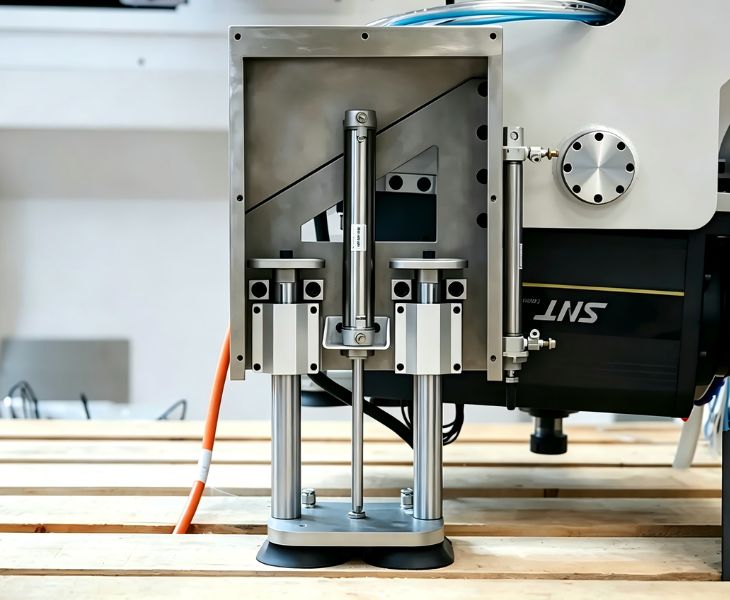

Heavy-lift pneumatic suction pods shift cut pieces automatically during the cutting sequence, preventing blade pinch and enabling full utilization of slab real estate.

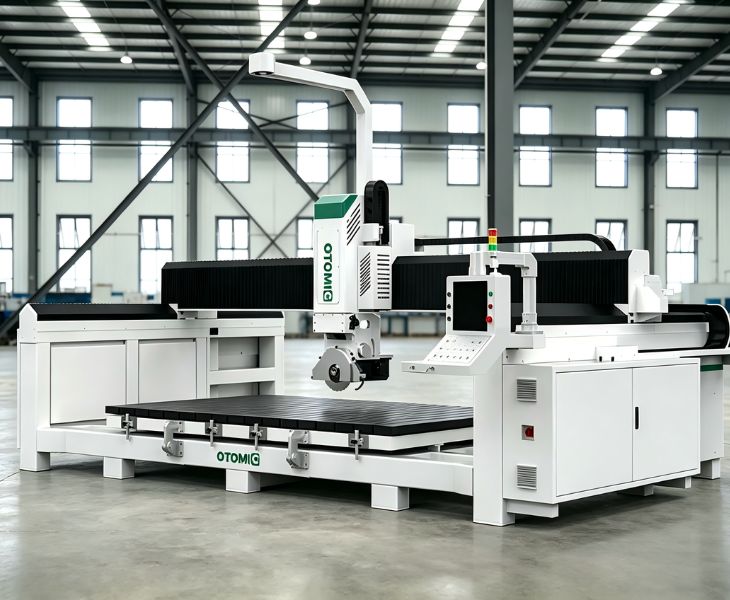

Automated Cutting Cycle
Our four-axis bridge saw can automatically perform linear cutting, 45-degree inclined cutting and arc cutting according to the preset feed speed and spindle speed, without any manual intervention throughout the process. From material loading to the completion of the cutting, the entire process runs automatically, significantly reducing your labor costs.
Complete Material Capabilities
Our machine can not only handle conventional granite and marble, but also handle materials with different toughness and hardness such as artificial quartz stone and fired ceramic panels (such as Desesis/Laminar) with ease. The main saw motor is equipped with variable frequency speed regulation, which can adjust the cutting speed and feed rate in real time according to the material.
Why Choose ElephMax As Your 4 Axis Bridge Saw Partner?
- Direct Factory Manufacturer Pricing: By eliminating intermediate trading companies, ElephMax provides direct-from-factory pricing, giving you maximum ROI and lower capital investment costs.
- Rigid Component Sourcing: We exclusively outfit our machines with industry-recognized core components—including Syntec/NcStudio control systems, Schneider electrical hardware, and premium heavy-duty linear guide rails.
- Pre-Shipment Testing: Every machine undergoes a continuous 48-hour dry-run and live stone-cutting test before packaging. We verify axis alignment, laser positioning, water flow systems, and electrical safety before dispatch.
- Reliable Global After-Sales Support: We back every machine with remote diagnostic support, step-by-step video setup guides, complete English software interfaces, and quick-ship spare parts replacement to keep your workshop running without interruption.
Applications of ElephMax 4 Axis Bridge Saw
From standard rectangles to L-shaped, U-shaped and other irregular countertops, our machine can complete all cutting processes in one setup, ensuring that each countertop fits perfectly with the kitchen space.
Our four-axis bridge saw can help you automatically complete the precise cutting of the under-sink and over-sink sink holes. You can install the faucet and basin directly without the need for any additional trimming.
For building projects such as hotel lobbies, commercial complexes, and villa exteriors, a large amount of uniform-sized and neatly edged stone veneer panels are often required. Our equipment can batch-cut exterior cladding, facade decorative strips, window sills, etc.
Our four-axis bridge-type saw can perform shaping operations such as chamfering, rounding edges, and arc-shaped tops on the monument body. Each stone monument can meet your personalized needs.
More About Our Company
- Certifications
- 4 Axis Bridge Saw Video
- Specification
Our production facility operates strictly under international ISO 9001 quality management standards. Every ElephMax 4-axis bridge saw holds official CE Certification, meeting stringent safety, electrical, and mechanical regulations for import into Europe, North America, and global markets.
| Item | 4+1 CNC Bridge Saw (with Material Shifting) | ES4-3220 4‑Axis CNC Bridge Saw | 4+1 CNC Bridge Saw |
| Model | 4+1 CNC Bridge Saw | ES4-3220 | 4+1 CNC Bridge |
| Blade Diameter | 350 mm | 360 mm | 350 mm |
| Max Cutting Thickness | 80 mm | 60 mm | 80 mm |
| Spindle Power | 5.5 kW (liquid‑cooled) | — | 5.5 kW (water‑cooled) |
| Spindle Speed | 24,000 rpm | — | 24,000 rpm |
| Saw Blade Motor Power | 15 kW (rated 3,300 rpm) | 15 kW (rated 2,930 rpm) | 15 kW (rated 3,300 rpm) |
| 3‑Axis Travel (X×Y×Z) | 3200×2000×400 mm | 3200×2000×200 mm | 3200×2000×400 mm |
| C‑Axis Rotation Range | ±360° | ±360° | ±360° |
| A‑Axis Tilt Angle | 0/45° | 0/45° | 0/45° |
| Worktable Size | 3200×2000 mm | 3200×2000 mm | 3200×2000 mm |
| Worktable Tilt Angle | 0‑85° | 0‑85° | 0‑85° |
| Control System | 5‑Axis System | Customized (with built‑in CAM) | Customized Control System |
| Motor & Drive | Servo motor and drive | Servo motor and drive (HANYU absolute value) | Servo motor and drive |
| Voltage | 380V / 3PH / 50‑60Hz | 380V / 3P / 50Hz | 380V / 3PH / 50‑60Hz |
| Machine Dimensions (L×W×H) | 5.36×3.3×2.41 m | 5.85×4.5×3.6 m | 5.36×3.3×2.41 m |
| Machine Weight | N/A | 3.5 t | N/A |
| Special Features | Industrial camera (auto‑pattern recognition); Material shifting (suction cups) ; Spindle and saw blade work alternately | Infrared positioning head; Automatic suction cup for material movement ; Worktable tilt for easy loading/unloading; Brake on Z‑axis servo | — |
Testimonials
“We upgraded from a 3-axis machine to the ES4-3220, and the difference is night and day. The 45° tilting axis for miter cuts is a game-changer for our L-shaped countertops—we’ve eliminated manual turning. Our production manager loves the infrared positioning head.”
Surfacing Fabricator | Rechard from Australia“For our hotel façade project in Milan, we needed 2,000+ identical marble panels with perfect beveled edges. The ElephMax 4 axis saw ran 16 hours a day for three weeks straight without a single calibration issue. The dual-drive configuration handles our heavy 30mm slabs with minimal vibration during heavy cutting. We’re now standardizing on ElephMax for all our upcoming commercial cladding contracts.”
Project Manager | Dr. Elena Rossi from Italy“We process thousands of square meters of granite and marble vanity tops annually. The material shifting function with the suction cup is a lifesaver – it automatically repositions offcuts for secondary cutting, which adds an extra 8-10% yield from every block. Our operators learned the DXF-based interface in just two days.”
Stone Manufacturer | David from New Zealand“We were worried about cracking 6mm sintered ceramic panels (Laminam). But the VFD speed control on the ElephMax saw adjusts RPM so smoothly that we’ve had zero breakage since installation. The 0.6 MPa pneumatic table makes loading fragile sheets safe and easy.”
Factory Manager | Nguyen Van Tuan from Vietnam
A 4-axis bridge saw automates 0-360° blade rotation and 45-90° tilting, making it fully capable of executing linear cuts, mitered edges, sink cutouts, and 2D profiling. A 5-axis machine adds a fully interpolating tool head for complex 3D sculptural carving. For standard countertop fabrication, architectural cladding, and mitered joints, you can just choose a 4-axis machine at a lower cost and with simpler shop operation.
Yes. Sintered stone requires stable blade travel, controlled RPM, and precise water coolant delivery to prevent tension cracking. Our machines utilize variable frequency drive (VFD) speed adjustment and rigid anti-vibration bed frames to handle fragile sintered slabs smoothly.
The machine typically runs on 380V / 3‑Phase / 50Hz or 60Hz power (custom voltage configurations like 220V or 440V 3‑phase are available upon request). It requires an external air compressor supplying more than 0.6 MPa pressure for pneumatic table tilting and vacuum cup operations.
Our system uses a simple graphic touch-screen interface that accepts standard DXF files. Operators do not need advanced G-code programming skills. We provide complete English tutorial videos, step-by-step user manuals, and online remote assistance. Most shop operators become fully proficient within 2 to 3 days.
The machine typically runs on 380V / 3-Phase / 50Hz or 60Hz power (custom voltage configurations like 220V / 440V 3-Phase are available upon request). It requires an external air compressor supplying more than 0.6 MPa pressure for pneumatic table tilting and vacuum cup operations.
We ship all machines with an essential wear-parts kit (limit switches, water nozzles, seals). In case of operational or technical issues, our engineers connect remotely via internet diagnostic tools to calibrate systems and resolve settings. Replacement hardware parts are dispatched via express courier within 24 to 48 hours.
Not at all. Your daily maintenance just has three simple steps.
- cleaning the working table and settling tank;
- checking that the cooling water circuit is clear;
- regularly lubricating guide rails and ball screws (the system will automatically remind you).
Our standard system supports bilingual switching between Chinese and English. If your workers prefer Spanish or other languages, we can provide custom language packs (please discuss this with our sales engineer before ordering). The interface is also graphically designed, so even without reading text, operators can understand functions through icons – greatly reducing language barriers.
