What is an Exchange Table Laser Cutting Machine?
The ElephMax exchange table laser cutting machine is a sheet metal cutting system with two alternating worktables. While one table performs laser cutting inside the machine, processing your products, the other can be loaded or unloaded outside the cutting area. Once cutting is completed, the tables exchange positions, reducing waiting between jobs and creating a smoother, more continuous workflow.
ElephMax exchange-table system is particularly suitable for sheet metal fabrication, machinery manufacturing, electrical cabinets, automotive components, signage, and other metal processing applications. With a full or semi-enclosed design on selected configurations, ElephMax also helps you create a controlled cutting environment by containing laser radiation, sparks, fumes, and flying debris. Combined with flexible laser power(1-6kW), working area(1515*3030, 2020*4040, 2525*6050available), and automation options, the machine can be configured around your material thickness, production volume.
Whether you are upgrading from a standard fixed-table laser cutter or looking to increase throughput without adding another complete cutting line, ElephMax exchange table laser cutting machine gives you a practical way to keep production moving. Contact our experts today for a tailored quote.
This machine combines a semi-enclosed protective cover and exchange table. With 1–6 kW laser power, ±0.03 mm positioning accuracy, and up to 140 m/min running speed, it supports fast and precise processing of carbon steel, stainless steel, aluminum, copper, and galvanized sheets.

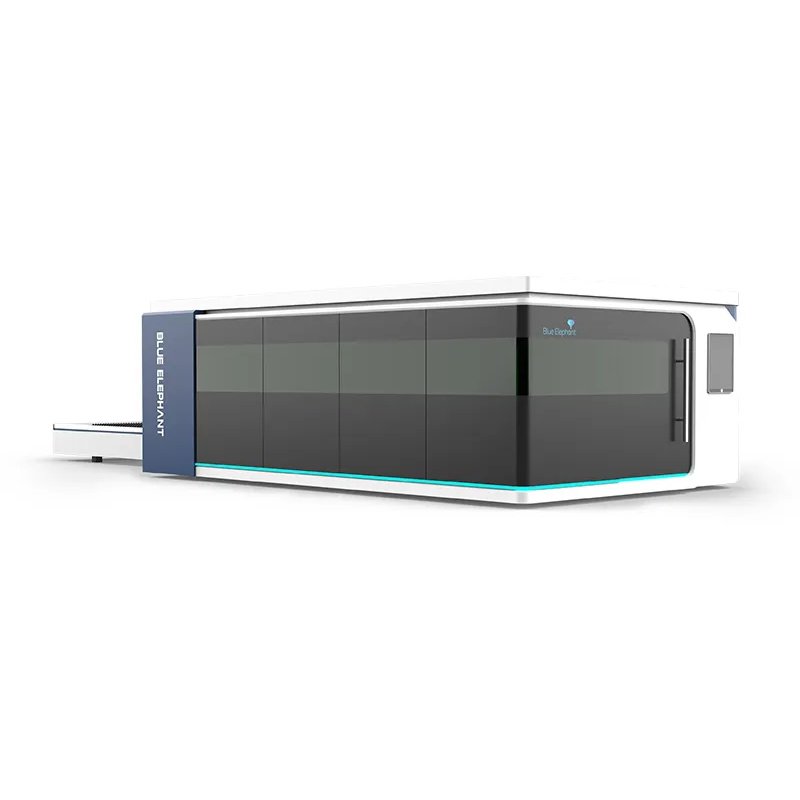

This machine combines a fully enclosed protective structure and automatic exchange platform. With 1–3 kW laser power and 15-second exchange platform, it enables rapid loading and unloading, while the enclosed design helps contain smoke and dust for a safer, cleaner production environment.
With 1–6 kW laser power, ±0.03 mm positioning accuracy, and up to 140 m/min running speed, it is designed for demanding metal fabrication. The 20–25 second exchange cycle enables rapid loading and unloading. The welded steel bed and aircraft-grade aluminum beam provide you with stability for high-speed cutting.

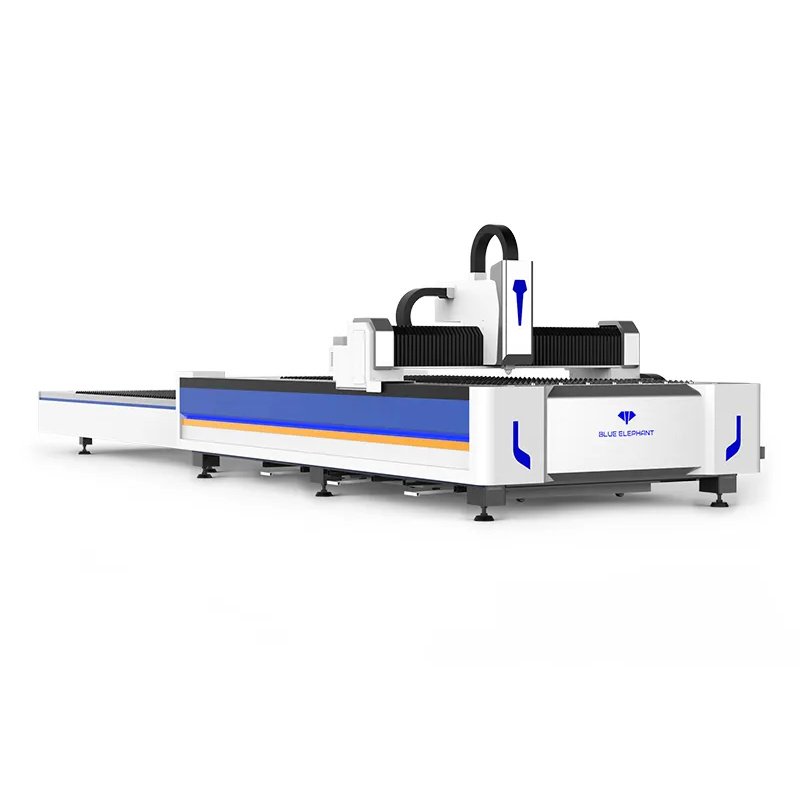

Available with 1–6kW laser power and three working-area options, the 1530E accommodates different sheet sizes while its automatic exchange platform supports continuous loading and cutting.

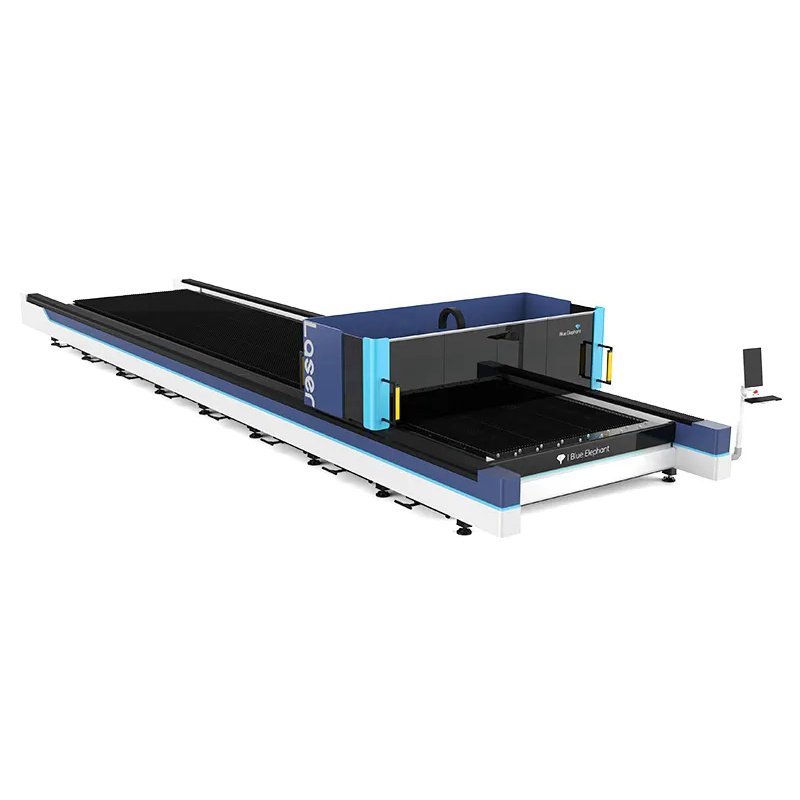

Smoke extraction follows the laser cutting position automatically, keeping the 1530SG’s large working area under targeted exhaust during sheet metal processing.
A hollow-cavity aluminum beam forms the gantry, with a structure designed to limit deformation and vibration during high-speed cutting.
See Dual Table Fiber Cutting Machine/ Our Factory in Action
Exchange Table Laser Cutter’s Feature
The exchange table lets one worktable remain in the cutting zone while the other is loaded or unloaded. keeping your laser cutting machine with exchange table ready for the next job.
Automatic table exchange reduces the waiting time between cutting cycles, helping you load, cut, and unload with less interruption.
Selected fully enclosed models help contain laser radiation, sparks, fumes, and flying debris, providing a more controlled workspace.
With loading and unloading performed outside the active cutting area, your operators spend less time waiting for the machine and more time preparing the next batch.
Lightweight Beam, Faster and More Stable Cutting
The lightweight aviation aluminum beam gives ElephMax exchange table laser cutting machines the strength to move fast without adding unnecessary moving weight. Its high rigidity helps resist twisting, tilting, and deformation, keeping the laser head stable during rapid acceleration and direction changes. The corrosion-resistant aluminum construction also supports long-term operation. The result is faster response, smoother motion, and more consistent cutting accuracy—helping you push production speed while maintaining reliable cut quality.
Cut While You Load the Next Sheet
Why stop your laser cutter just to load material? The exchange table lets you cut on one platform while loading or unloading on the other, so material handling no longer has to wait for the cutting cycle to finish. With exchange times of as little as 15–25 seconds on selected ElephMax models, you can shorten changeover time, reduce manual waiting, and keep operators focused on preparing the next batch. You get faster material turnover, fewer interruptions, and more cutting output from every shift.
Configure the Machine Around Your Production
If your materials, sheet sizes, thicknesses, and production volumes are different from every other fabricator, your laser cutting machine should be built around your actual workflow. ElephMax offers flexible configurations for laser power, working area, enclosure type, sheet and tube cutting, exchange-table design, and automatic loading and unloading. Whether you need a compact setup for everyday sheet cutting or a higher-power system for continuous production, you can select the configuration that matches your material range, cutting thickness, workspace, throughput, and automation needs—without investing in features your production does not require.
Why Choose ElephMax as Your CNC Partner?
- 16+ Years Experience: Over 16 years of expertise in making high-quality CNC machines.
- 180+ Countries Covered: Exported to and trusted by workshops in over 180 countries.
- 5,500+ Happy Clients: Chosen by thousands of global businesses for reliable daily production.
- Large Modern Factory: Built in our 75,000 m² factory with strict quality checks.
- Global Certifications: Fully certified with CE, ISO 9001, SGS, and TÜV standards for safe use.
- Direct Factory Price: Buy straight from the ElephMax maker—no middleman, no extra markups.
- 24/7 Fast Support: Lifetime technical help with rapid response whenever you need it.
Target Industries & Applications
Ideal for continuous cutting of enclosures, chassis, electrical cabinets, brackets, and sheet metal components. The exchange table helps shorten loading and unloading intervals for higher-volume production.

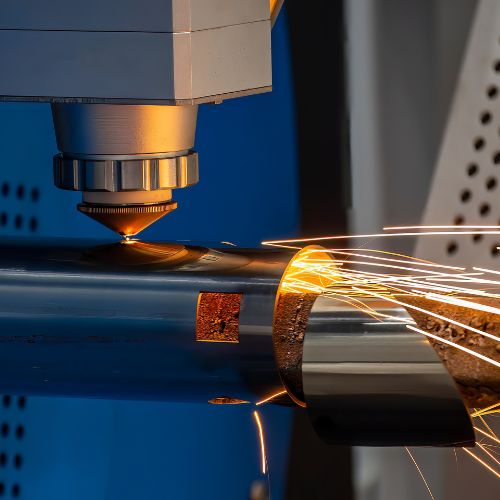

Suitable for cutting automotive brackets, panels, structural components, and other precision sheet metal parts, supporting repeatable production across different material thicknesses.
Handles a wide range of metal components for industrial machinery, equipment frames, machine covers, brackets, and structural parts, making it suitable for both customized and batch production.
Efficiently cuts stainless steel kitchen components, sinks, hardware parts, fixtures, and decorative metal products, with fast processing for manufacturers handling frequent production orders.

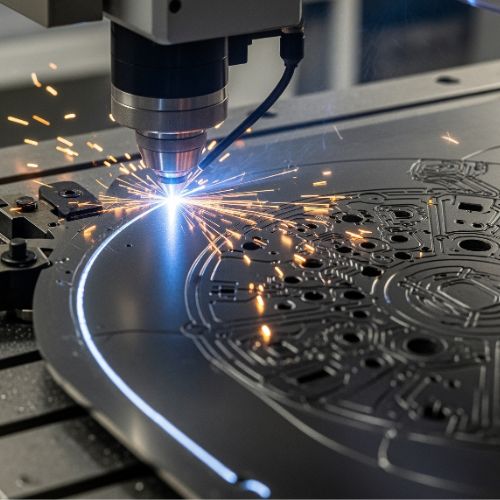

Suitable for producing metal signs, decorative panels, screens, letters, and architectural cutouts. Fast cutting and flexible exchange-table operation help improve efficiency for customized and short-batch orders.
More About Our Company
- Certifications
- Specifications
ElephMax laser cutting machines with exchange table are prepared for international delivery with strict quality inspections and performance testing before every shipment. Export machines can be supplied with relevant certifications like CE, ISO9001, BV, SGS, and TUV
Each machine is tested for laser cutting performance, exchange-table operation, and overall system stability before delivery.
| Item | Specification |
| Working Area | 1515 × 3030 mm / 2020 × 4040 mm / 2525 × 6050 mm |
| Laser Power | 1–6 kW / 1–3 kW |
| Positioning Accuracy | ±0.03 mm |
| Repositioning Accuracy | ±0.02 mm |
| Max. Running Speed | Up to 140 m/min |
| Max. Acceleration | Up to 2.0G |
| Exchange Time | 15–40 s, depending on model |
| Focusing Method | Auto / Auto & Manual |
| Laser Source | Multiple Options |
| Machine Bed | Welded Steel Bed |
| Beam | Aviation-Grade Aluminum Beam |
| Processing Type | Sheet Metal / Sheet & Tube |
| Enclosure Options | Fully Enclosed / Semi-enclosed |
| Materials | Carbon Steel, Stainless Steel, Aluminum, Copper, Galvanized Sheet… |
An enclosed laser cutting machine provides total optical radiation safety (OD6+ level) and contains metal dust and fumes within the enclosure. Compared with an open-type model, it helps contain laser radiation, sparks, fumes, and flying debris, while observation windows allow operators to monitor the cutting process without direct exposure to the cutting area. For workshops prioritizing operator protection, cleaner operation, and a more controlled production environment, an enclosed model is often the better choice.
Most metalworking factories can achieve a return on investment (ROI) of 100 per cent within 6 to 18 months. The combination of ElephMax’s high cutting speed, low energy consumption, minimal consumables and automatic dual-table switching results in higher daily output and lower fiber laser cutter cutting costs per unit.
To recommend the right laser cutting machine with an exchange table and provide an accurate quote, please share:
- Material: carbon steel, stainless steel, aluminum, copper, etc.
- Maximum material thickness
- Sheet size/working area
- Tube size and length, if tube cutting is required
- Expected production volume
- Preferred laser power, if known
- Automation needs: loading/unloading, enclosure, etc.
- Destination country for shipping and configuration requirements
With these details, ElephMax can recommend a more suitable model and configuration for your production needs.
The floor space required depends on the machine model, the machining area, the type of protective enclosure and the automation configuration. For ElephMax fibre laser machining centres with a changeable worktable, sufficient space should be set aside to accommodate the machine body and ensure that operators can move freely around the equipment.
Taking a typical 1530 series model as an example, with a working area of 1500 × 3000 mm, the total installation area should be planned to be approximately 8–10 metres in length and 3.5–5 metres in width, depending on the specific configuration. In addition, extra space should be allowed around the equipment to accommodate sheet loading and unloading, maintenance, ventilation and operator movement.
