ElephMax Industrial CNC Drilling Machine Manufacturer
ElephMax intelligent CNC drilling machine is an advanced, computer-controlled woodworking solution that automates high-precision drilling, grooving, slotting, and milling operations for your panel furniture production. For maximising your production efficiency, this machine can automatically execute complex machining tasks through its seamlessly integrated CAD/CAM software and scanning system.
ElephMax has focused on developing high-performance CNC machinery for the global woodworking and furniture industry for over 16 years. We offer a full spectrum of intelligent drilling solutions—including 6-side CNC drilling machines, side hole drilling machines, and hinge hole drilling machines—as well as complete panel furniture production line integration for your well-established company. Besides, we offer 24/7 remote online training, including pre-installed software, a touch interface, and video tutorials/manuals, and support on-site service by overseas engineers.
Tell us your requirements! Our engineers will recommend the most satisfying CNC drilling machine design for your business!

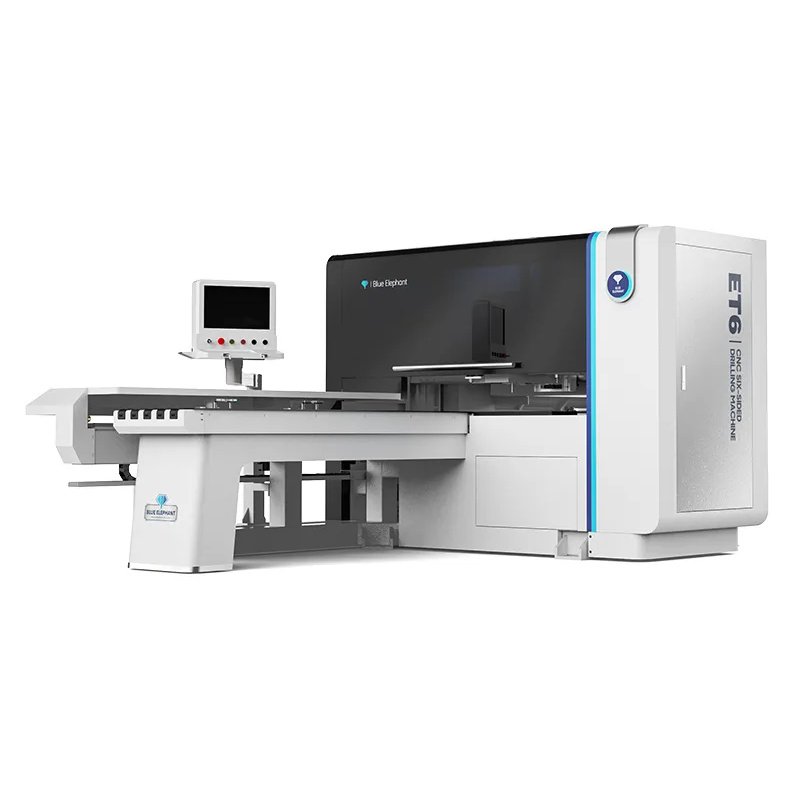

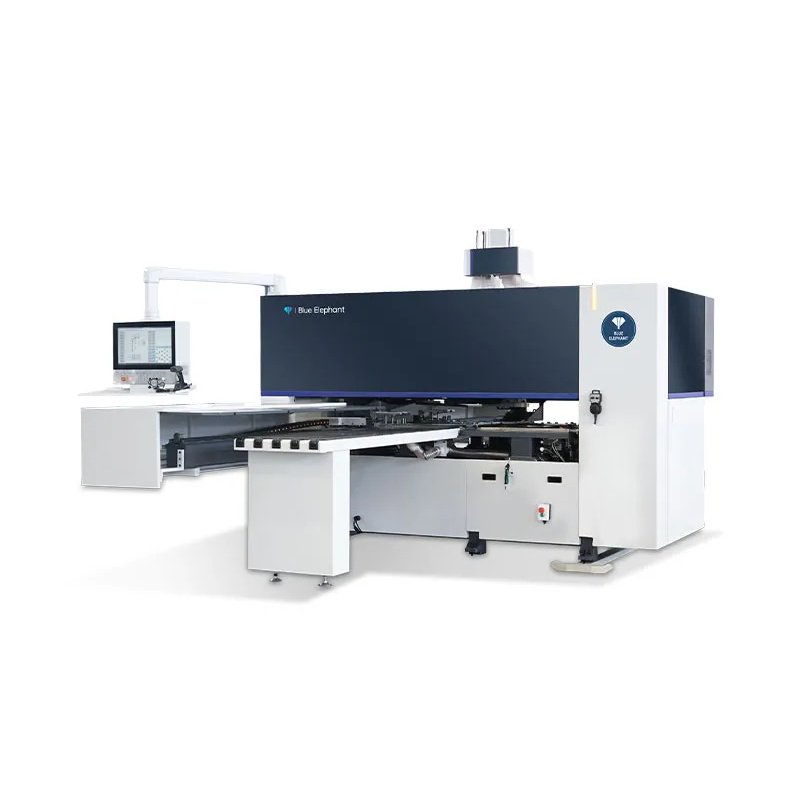

6 Side CNC Drilling Machine

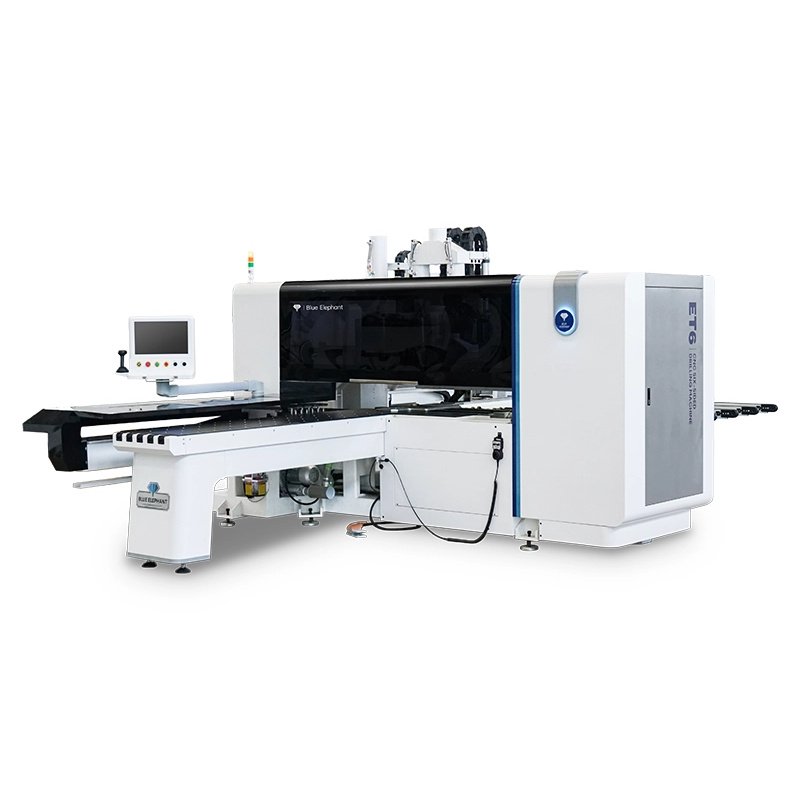

Features dual drilling units, ISO30 ATC, four-head right-angle head, and saw blade unit for six-sided panel machining.
Combines wireless code scanning, auto loading, smart sorting, and dual lower spindles for automated six-sided panel drilling and milling.
Features skin-breaking drilling, an integrated Lamello saw, air-float table, and ±0.03mm repositioning accuracy for precise panel machining.

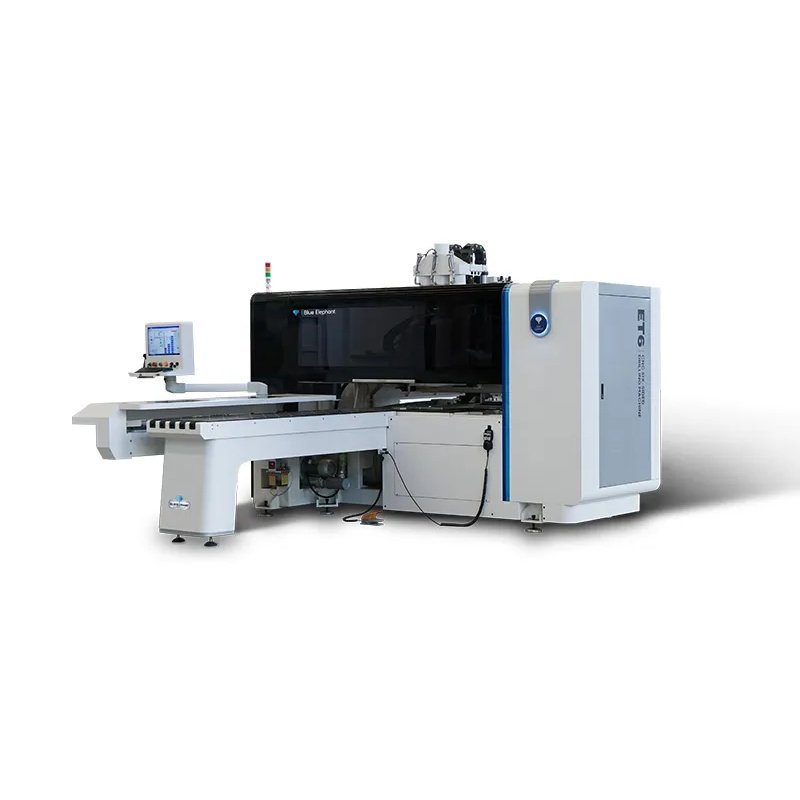

Six-sided drilling, automatic tool changing, four-head milling, side milling, and two-in-one connector processing for complete panel machining.

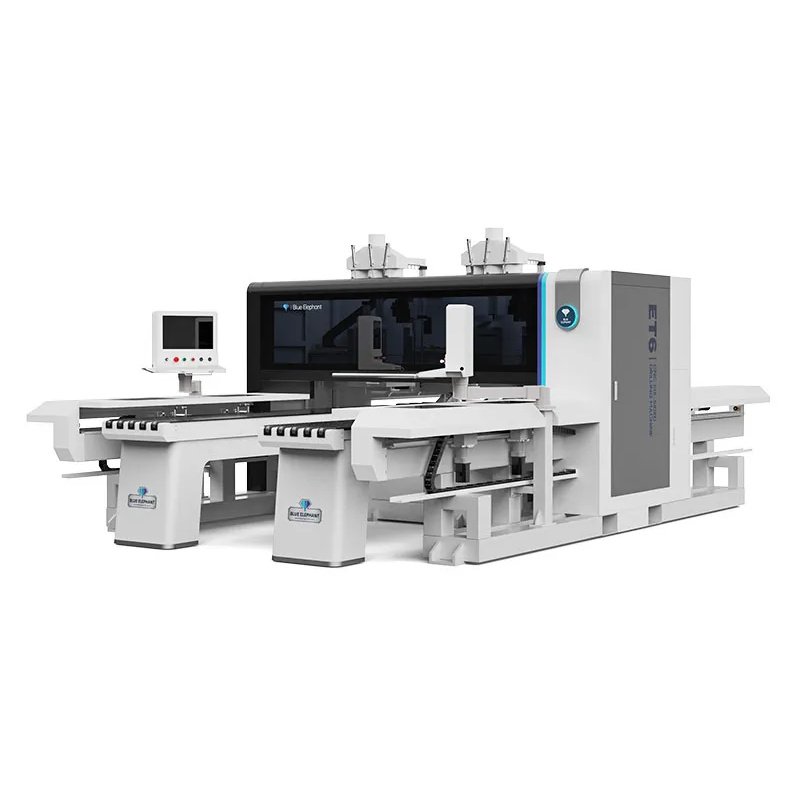

Dual independent stations, simultaneous panel processing, automatic loading and unloading, and compact space-saving six-sided drilling.

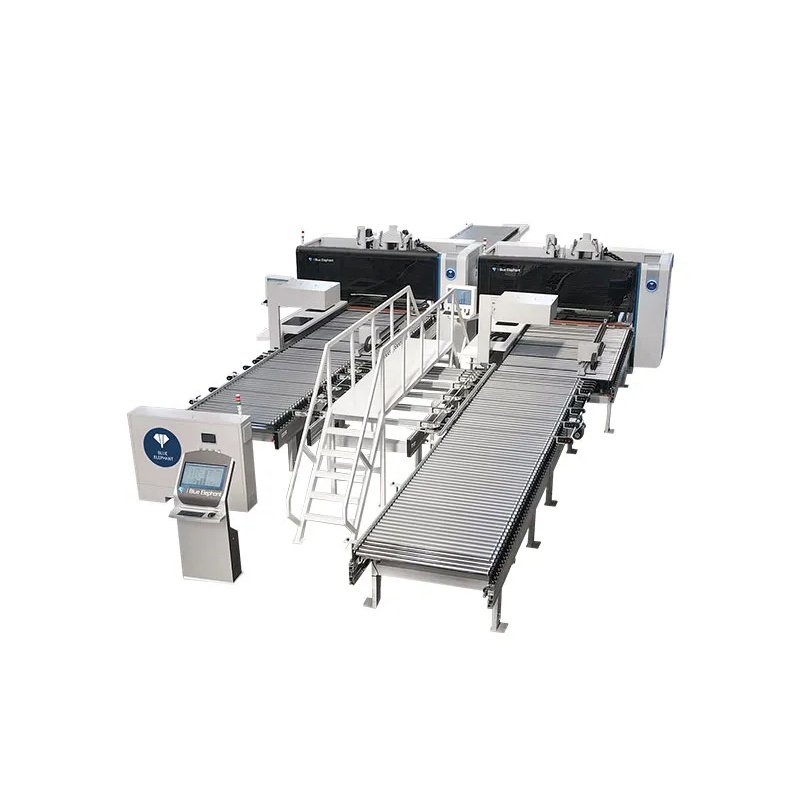

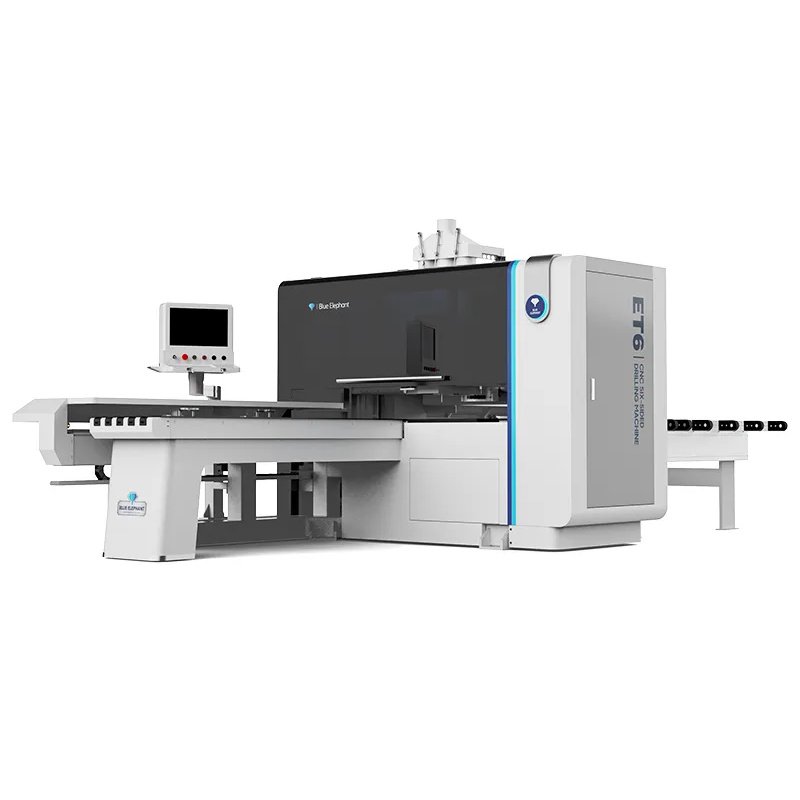

Dual drilling units with synchronized upper and lower drill packages, increasing drilling efficiency by 30% while reducing labor requirements.
Six-direction drilling, front-and-back grooving, automatic board positioning, and wireless code scanning for fully automated panel processing.

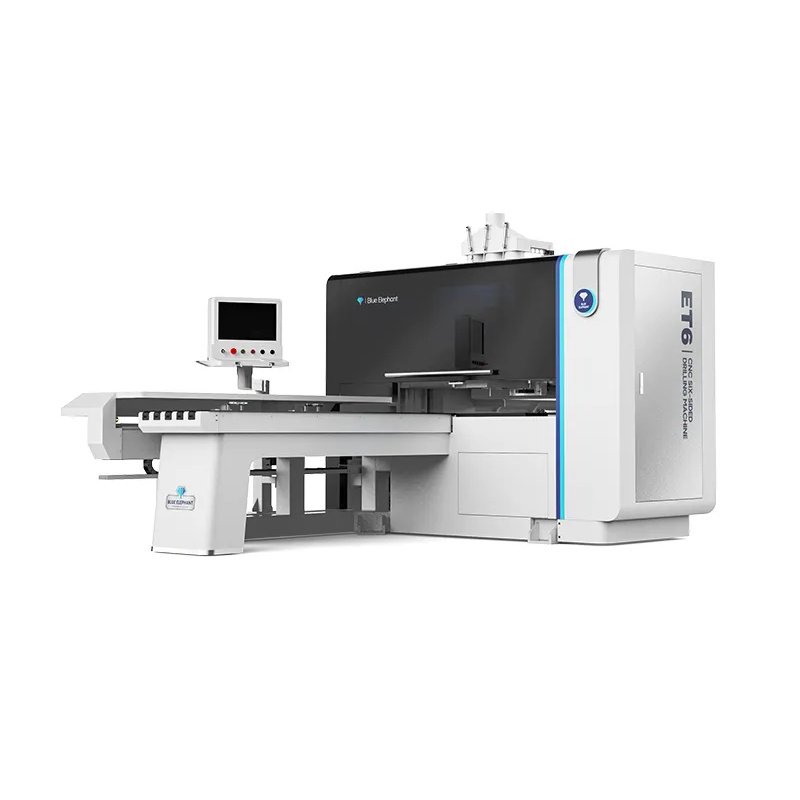

A return table for single-operator loading and unloading, with automatic board orientation, six-sided drilling, and front-rear grooving.

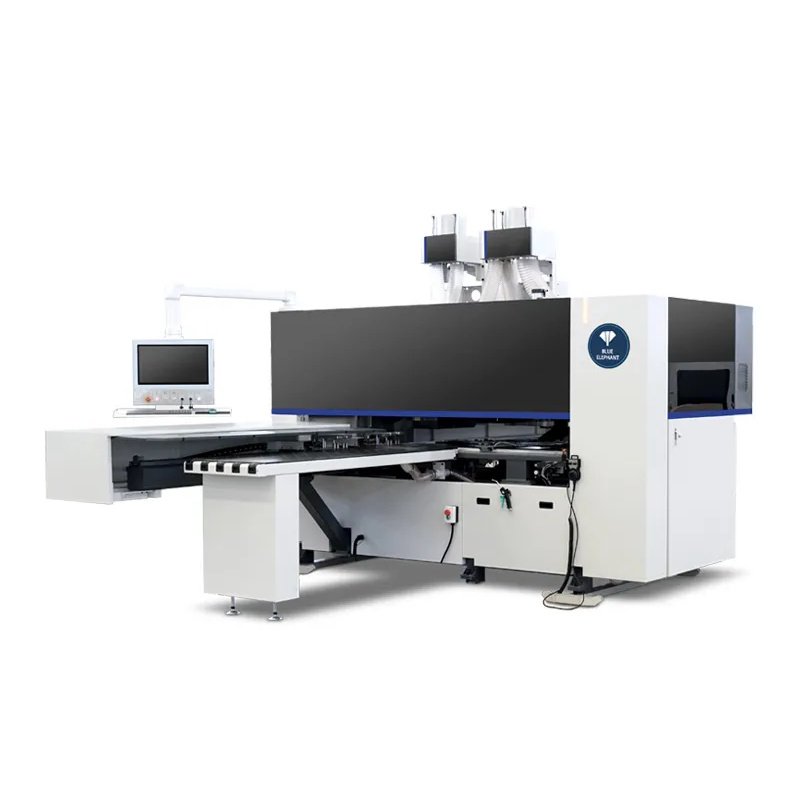

Dual drill units with ATC, six-position tooling, and simultaneous processing for drilling, grooving, milling, and laminar operations.

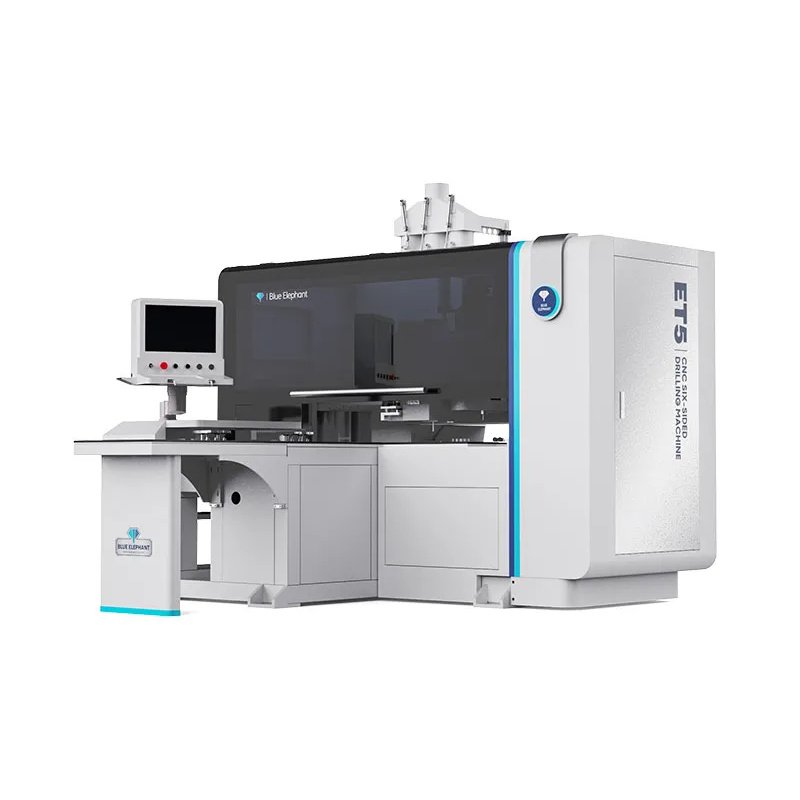

A compact footprint, wireless code scanning, automatic sorting and positioning, plus six-sided drilling without manual panel turning.
Hingle Hole Drilling Machine

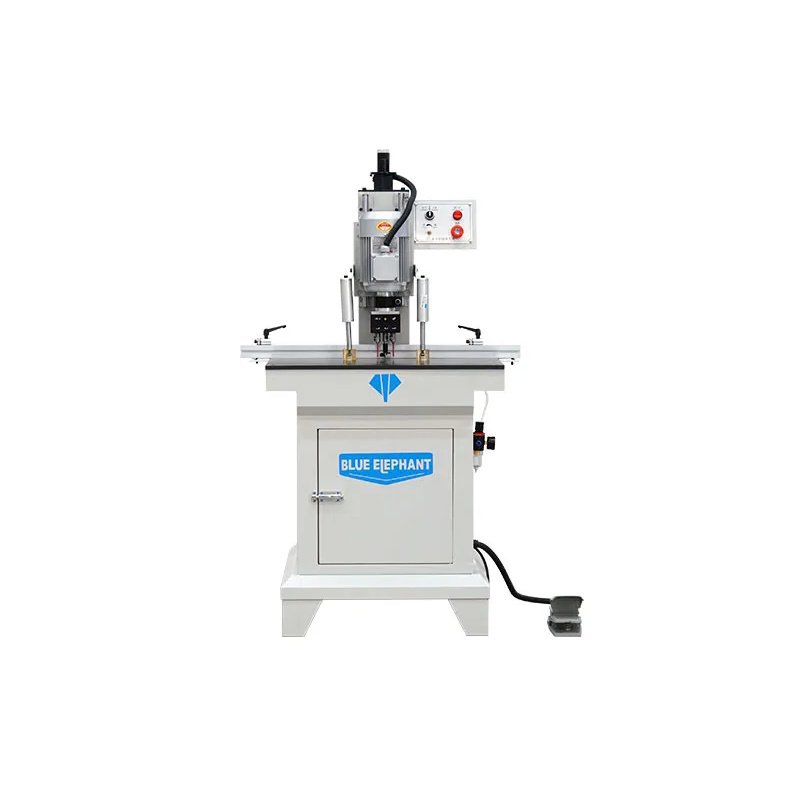

The single-head design drills up to five hinge holes at once, with an adjustable positioning baffle for accurate placement on furniture door panels.
Supports longitudinal and horizontal drilling position adjustments, adapting quickly to different hinge hole layouts on cabinet and wardrobe doors.
Side Hole Drilling Machine

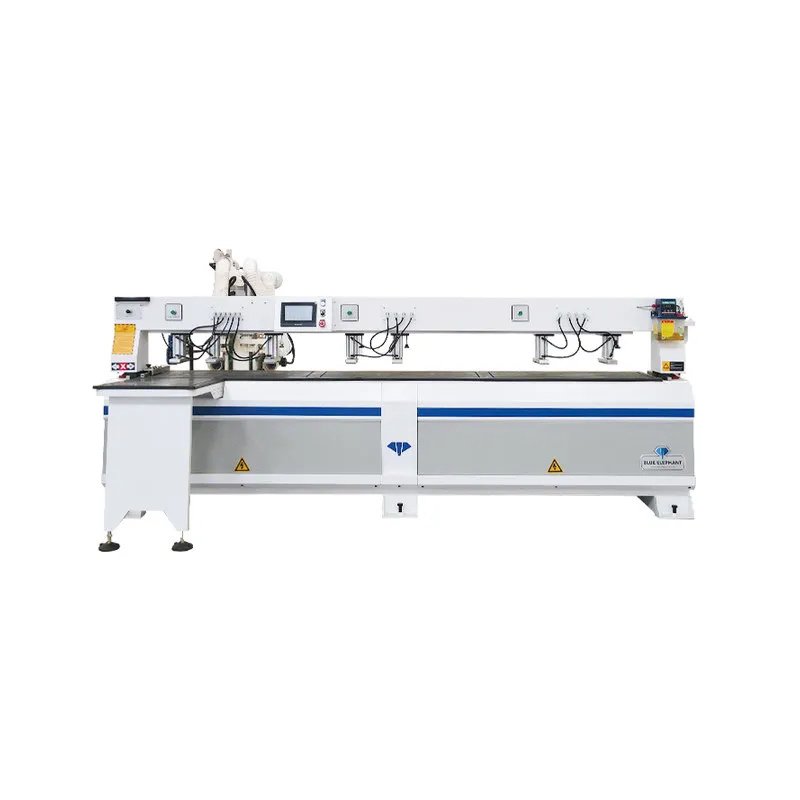

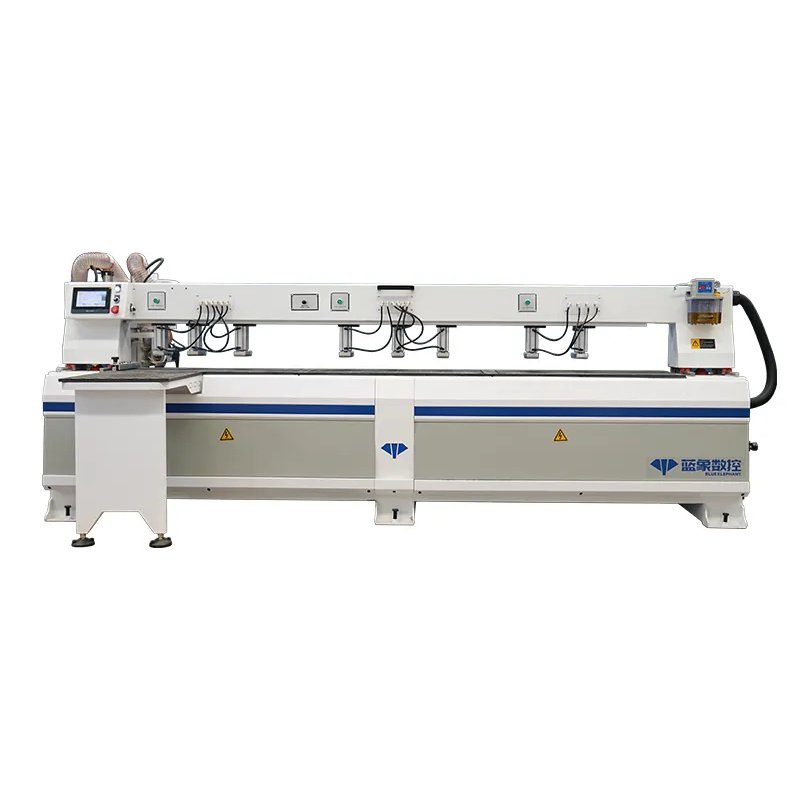

The four-process design handles hinge holes, connectors, handle-free grooves, lamp grooves, and other panel processing for cabinet and wardrobe doors.

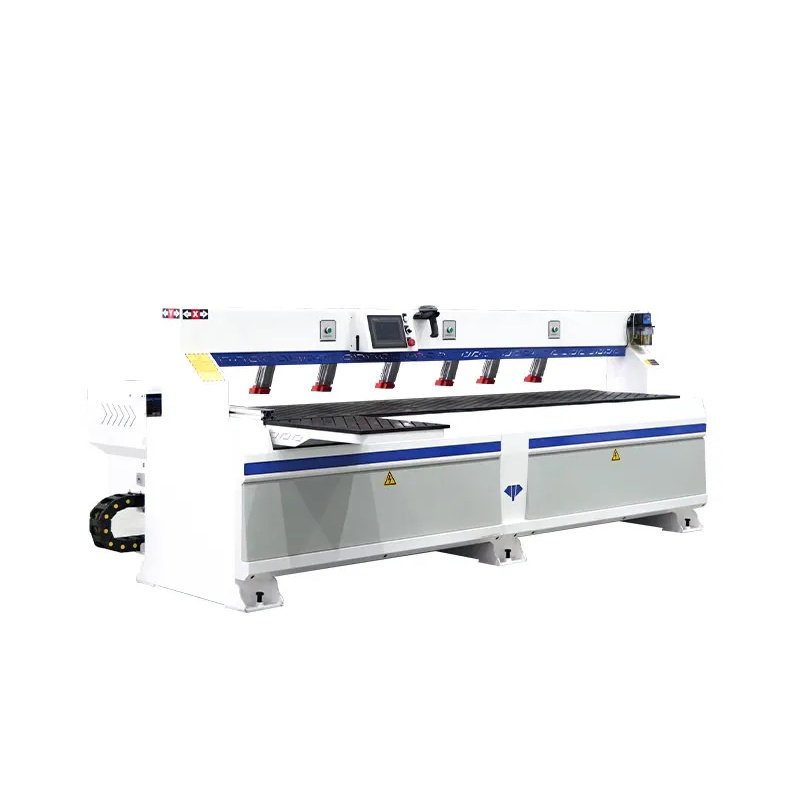

This handles side holes, dowel holes, blind holes, grooves, and concealed hardware processing, with laser positioning for accurate panel drilling.

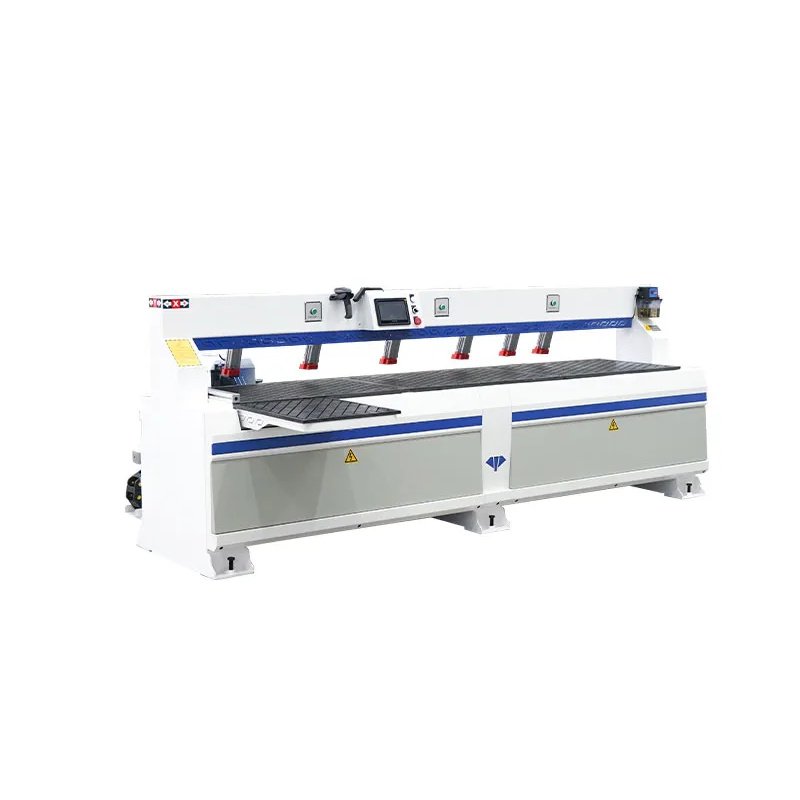

The single-head machine handles side holes, dowel holes, blind holes, and grooves, with code scanning and laser positioning for automated panel drilling.
Supports handle-free cabinet and door processing, including horn, arc, and angled handles, plus mortise-and-tenon and Lamello joints.
CNC Drilling Machine’s Feature
Complete multiple drilling operations quickly with optimized drilling units, reducing cycle times and increasing overall production efficiency.
Industrial servo systems and precision linear guides ensure accurate hole locations and consistent machining quality, even during continuous production.
Integrate drilling, routing, grooving and milling into one machine to minimize equipment investment and simplify your production workflow.
Automatic tool changing, optimized drilling cycles and intelligent positioning reduce manual intervention while improving productivity and repeatability.

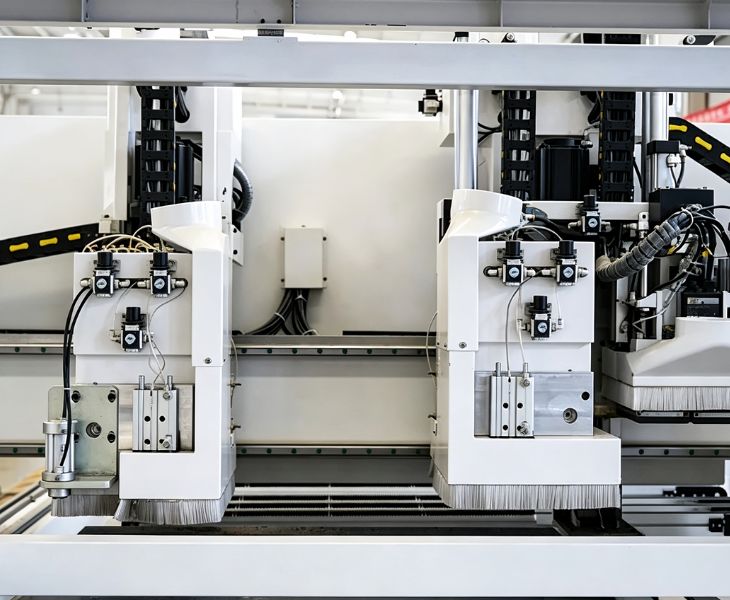

Complete More in One Setup
The ElephMax CNC drilling machine combines drilling, grooving, routing and milling into a single automated process. This means that sheet material can be machined on all six sides—top, bottom, front, back, left and right—with vertical and horizontal holes and grooves, all in a single set-up. This integrated solution is particularly beneficial for the manufacture of complex furniture, ensuring excellent processing quality for every workpiece whilst minimising the inefficiencies caused by repeated clamping operations.

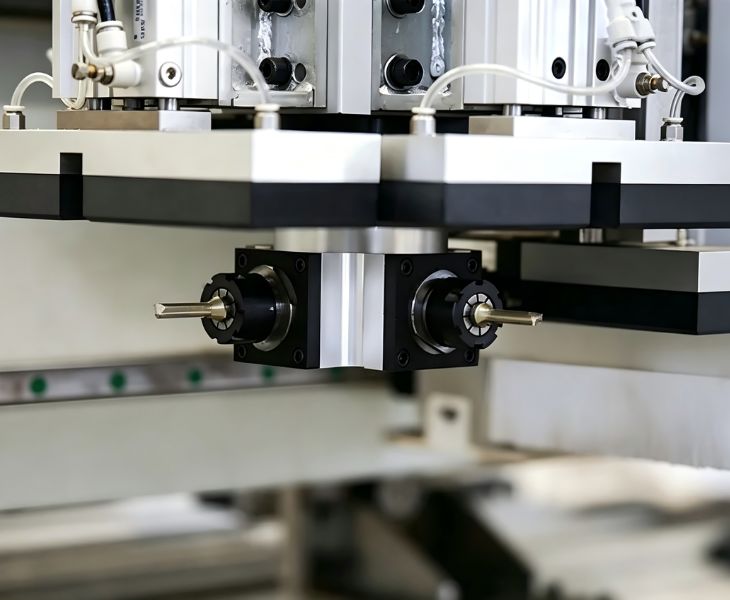

Boost Efficiency with Intelligent Automation
Designed for modern furniture production, ElephMax CNC drilling machines feature intelligent CNC control, automatic positioning and optional labeling, loading and unloading systems. In addition, it is equipped with intelligent infrared/laser sensors and a pneumatic positioning stop system, allowing the workpiece to be automatically moved out of the way along the toolpath during machining. For your large-scale operations, you can seamlessly integrate it into automated production lines in order to reduce manual labour and ensure continuous, high-speed processing.

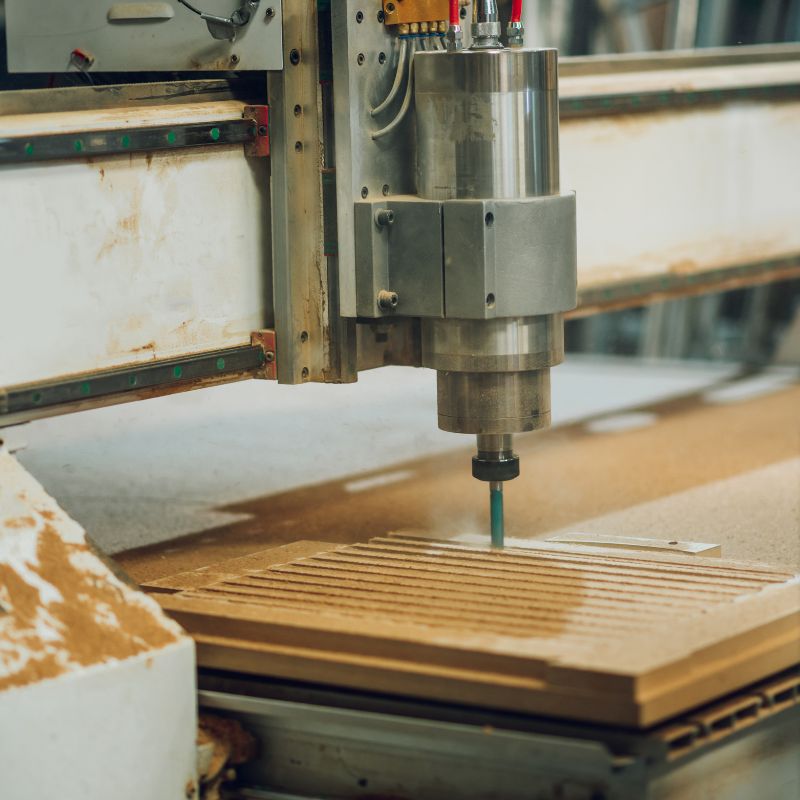

Flexible Production for Custom Furniture

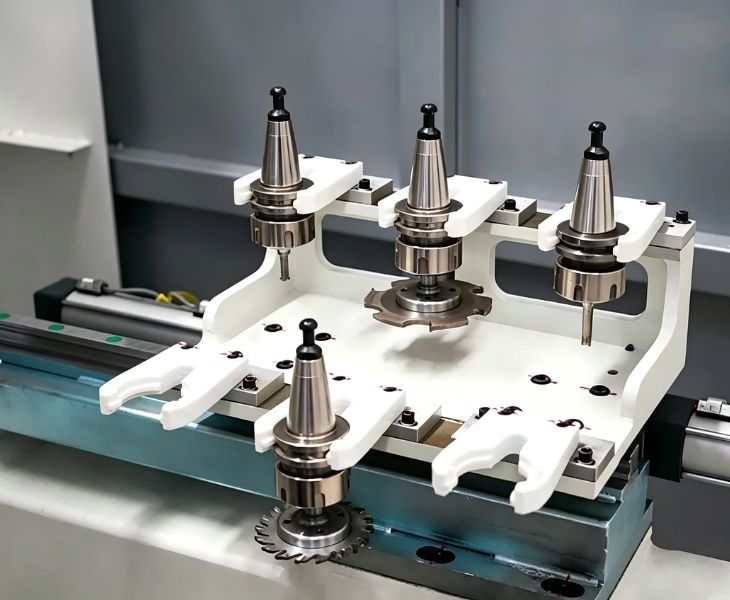

ElephMax CNC drilling machines can easily handle diverse panel sizes, drilling patterns, and furniture designs with ease. The equipment features an automatic tool change (ATC) spindle and multi-drill units, eliminating the need for manual tool changes or repeated adjustments to drill spacing. As you transition from one custom panel to the next, the machine automatically switches between drill bits, milling cutters, and grooving saw blades in seconds, effortlessly handling customization demands involving diverse product types and mixed-size production runs.
Achieve Precision on Every Panel
Each CNC drilling machine is equipped with high-performance, high-precision photoelectric sensors and a laser detection system, enabling it to automatically detect deviations in the edges and positioning of sheet materials prior to material clamping and drilling. Whether you are manufacturing bespoke kitchen units or mass-producing furniture components, this equipment can always precisely correct the machining position in the event of any deviation. This helps your factory improve product quality and reduce material wastage.
Why Buy Directly From ElephMax?
- 16+ Years of Industry Experience: Over a decade and a half of innovation and expertise in manufacturing high-performance CNC machinery.
- Global Footprint in 180+ Countries: Exported and trusted by businesses across 180+ countries and regions worldwide.
- 5,500+ Trusted Partnerships: Over 5,500 global clients recognize our commitment to quality, precision, and reliable production.
- 20,000+ CNC Machines Delivered: Proven track record of boosting productivity and efficiency with tens of thousands of units deployed globally.
- 120+ Recognized Certifications: Compliant with international standards to ensure rock-solid stability, safety, and long-term use.
- Offers 24/7 Remote Online Training: Includes pre-installed software, a touch interface, and video tutorials/manuals; and supports on-site service by overseas engineers.
Industries We Serve

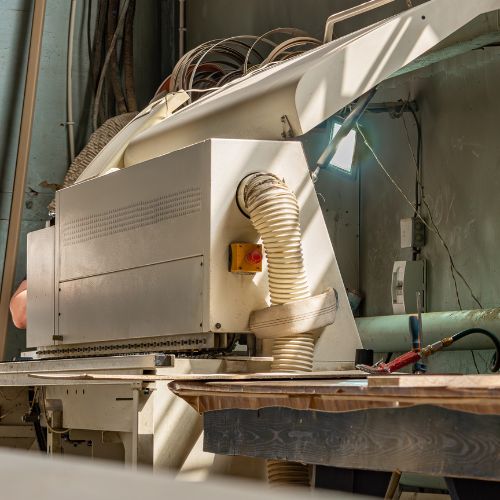

The processing of panel furniture materials typically involves laborious and complex procedures, requiring a significant amount of manpower. This CNC drilling machine can efficiently carry out composite operations, drilling holes on all six sides of sheet materials quickly and accurately. It effectively reduces a factory’s reliance on manual labour.
With bespoke kitchen units, once holes have been drilled in one panel, it must be manually turned over to another machine to drill the side holes, which can lead to cumulative errors. This machine supports rapid six-sided drilling, facilitating the single-operation machining and seamless assembly of modular furniture.
Office filing cabinets involve multiple drilling operations, such as positioning holes for drawer runners. This CNC drilling machine achieves a positioning accuracy of 0.05 mm and provides stable multi-surface drilling precision. By using it, you will significantly reduce your assembly lead times, resulting in finished products that assemble smoothly and offer high durability.

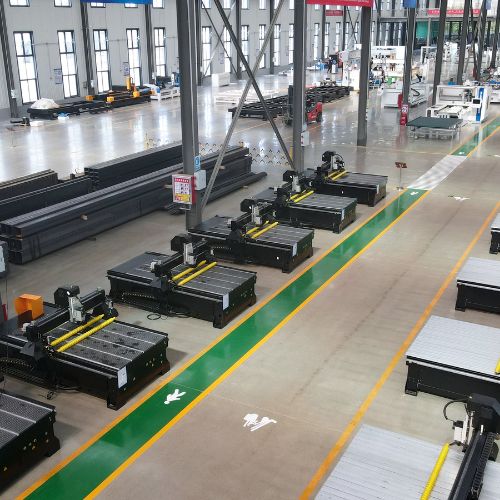

Ideal for customized home furnishing projects, the machine supports complex panel drilling requirements across diverse interior designs. It ensures precise positioning for connectors and hardware, enabling faster installation, improved fit accuracy, and higher-quality customized home solutions.
Widely used in interior door and engineered panel production, this CNC drilling system delivers clean, accurate six-sided machining. It enhances structural assembly precision, reduces rework rates, and supports efficient batch production for high-demand construction and building material applications.
More About Our Company
- Certifications
- CNC Drilling Machine Video
- Specification
ElephMax CNC machinery strictly adheres to international manufacturing standards. We have obtained over 120 authoritative certifications, such as CE, ISO 9001, BV, SGS and TÜV.
| Parameter | Specification |
| Panel Size | Length: 200–3300 mm; Width: 30–1220 mm; Thickness: 9–55 mm |
| Control System | ElephMax Custom CNC System |
| Worktable | Air-Floating Table |
| Drilling Configuration | Upper: 12 Vertical + 8 Horizontal Drills; Lower: 9 Vertical Drills |
| Spindle Configuration | Upper: 6–9 kW ATC Spindle; Lower: 3.5–6 kW × 2 |
| Spindle Speed | 18,000 rpm |
| Tool Changer | ATC |
| Positioning Speed | X: Up to 130 m/min; Y: Up to 100 m/min; Z: Up to 50 m/min |
| Drive System | Absolute Value Servo Motors |
| Scanning System | Barcode / QR Code Scanner |
| Saw Blade | Optional Side Processing Saw Blade |
| Dust Collection | 1.6 kW Standard |
| Voltage | 380V / 3P / 50Hz |
| Machine Dimensions | Approx. 3750 × 2800 × 2600 mm |
Our machines can be delivered within 7 to 30 working days after the deposit is confirmed and final drawings are approved (depending on the manufacturing process, shipping distance, and transport method); we support sea, air, and rail freight.
Choosing a 6-sided CNC drilling machine is one of the most effective upgrades you can make for panel furniture manufacturing (such as custom kitchen cabinets, wardrobes, and office furniture).
If your goal is to boost production speed, eliminate human error, and achieve seamless automation, here is why a 6-sided CNC drilling machine is the right choice:
- Complete in One Setup: Processes drilling and grooving on all six sides in a single pass—no manual panel flipping or alignment errors.
- Smart Automation: Barcode scanning instantly loads CAD/CAM files, while dual drill banks maximize speed and cut labor costs.
- Panel Protection: Air-floating tables and pneumatic grippers prevent scratches on delicate melamine or high-gloss surfaces.
Switching from manual drilling to ElephMax CNC drilling machines brings massive benefits to your workshop: You’ll get far more precise, faster, and uniform drilling results every single time. No more messy inconsistencies caused by human mistakes. It cuts down your labor expenses drastically and lets you run fully automated mass production effortlessly.
Better yet, our CNC equipment easily handles complicated multi-sided hole and slot layouts that are nearly impossible to drill perfectly by hand. It’s a perfect fit for you aiming for standardized output and smooth business expansion.
Choosing the right CNC drilling machine depends on production volume, panel size, and required automation level. For small workshops, you can choose compact models, while large factories prefer double-station or 6-sided systems.
Consider drilling speed, spindle configuration, and ATC functions. High-end models are ideal for mass production requiring efficiency, accuracy, and reduced labor dependency.
Reference ElephMax CNC drilling machine are as follows:
- ElephMax side hole machine is designed for edge hole drilling;
- ElephMax 6-sided drill completes 6-sided drilling and slot milling in one clamping;
- ElephMax hinge drill specializes in cabinet door hinge holes.
The typical ROI (Return on Investment) for an automated CNC drilling machine is between 6 to 18 months. 6-sided CNC drilling machines process top, bottom, and four side holes plus grooving in a single pass without manual panel flipping. Boosts daily panel output by 200% to 300% compared to traditional side-hole drilling methods, allowing factories to take on more orders without increasing shift hours.
