Advantages of ElephMax Digital Cutter
- Adopts a quick-release and modular design. Can simultaneously mount or quickly switch to different tools.
- The intelligent vacuum adsorption system dynamically adjusts suction zones to secure materials and prevent movement during cutting.
- Linear motors reduce mechanical transmission components, improving motion accuracy, response speed, and long-term stability.
- The blade undergoes high-frequency reciprocating vibrations, allowing for easy cutting through thick, dense, and resilient materials.
Professional Digital Cutter Supplier in China
Digital cutters can perform high-precision cutting, creasing, scoring, and processing on various flexible and semi-rigid materials. They operate by driving the motion axes based on digital design files.
ElephMax has manufactured digital die cutters for over 16 years. We insist on providing reliable digital cutting solutions with strict quality control for customers all over the world. When designing, our engineers continuously optimize the structure of the machine tools, the motion system, the tool configuration, and the control software. Therefore, the cutting accuracy, efficiency, and material compatibility of our digital cutter machines are ensured.
Contact ElephMax now to receive a free process analysis and a tailored digital die cutter solution!
ElephMax Digital Cutter Types
An 8-tool carousel ATC handles routing automatically, while the oscillating knife cuts PVC, leather, fabric, paper and other flexible materials on the same machine.

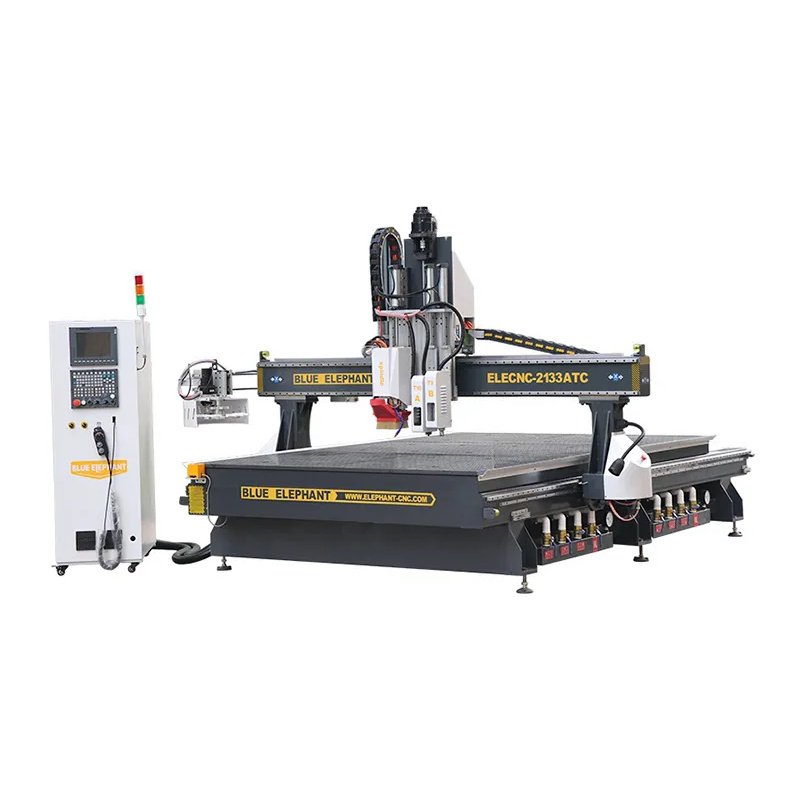

German EOT-3 oscillating knife cuts leather, carpet, rubber and carton, while the 9kW ATC spindle processes wood, MDF and acrylic on the same 2000×3000mm table.

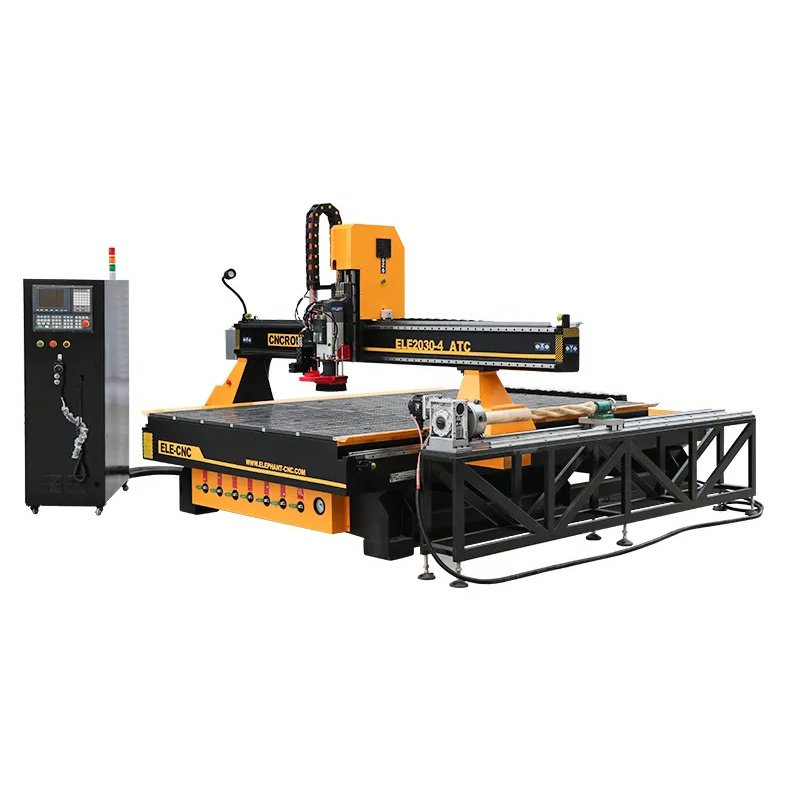

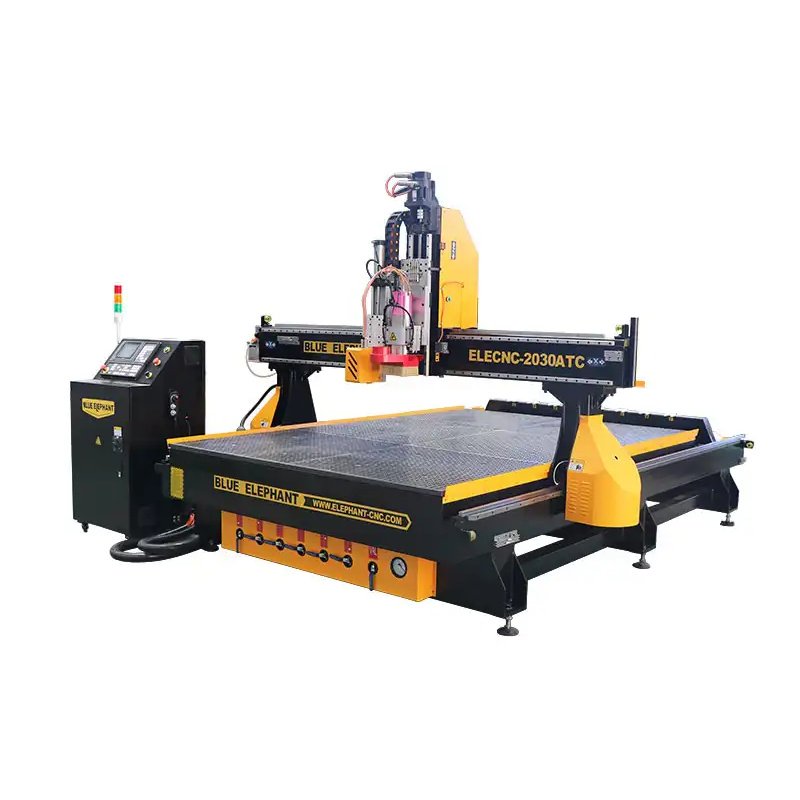

A portable rotary axis adds 3D wood carving to the 2030’s ATC routing and oscillating-knife cutting, with the rotary unit designed to save space when not in use.

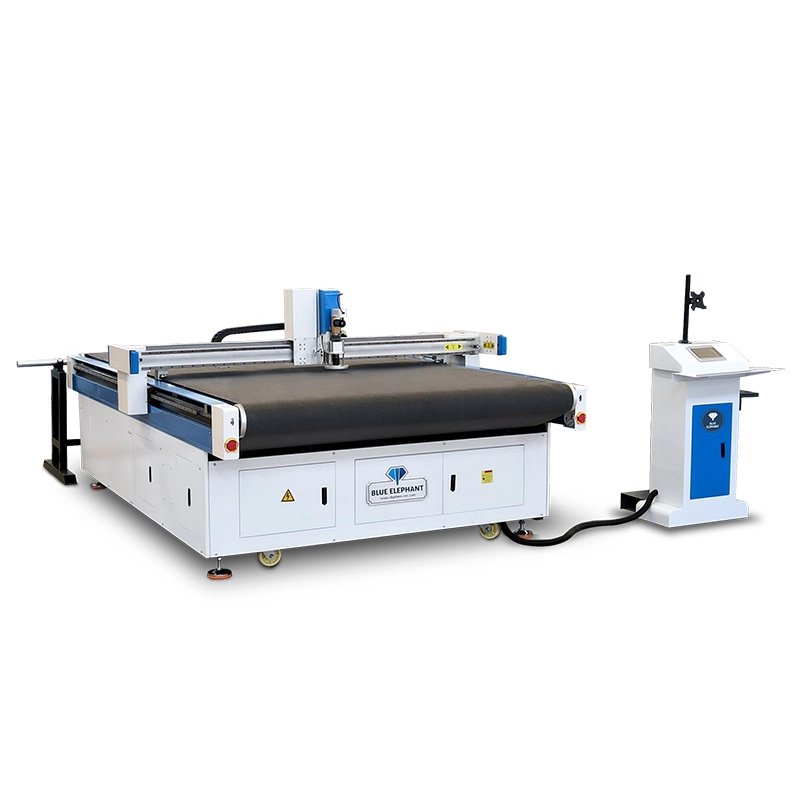

Red-light positioning sets the cutting reference before processing, while integrated nesting software lays out patterns automatically on the 1600×2500mm cutting area.

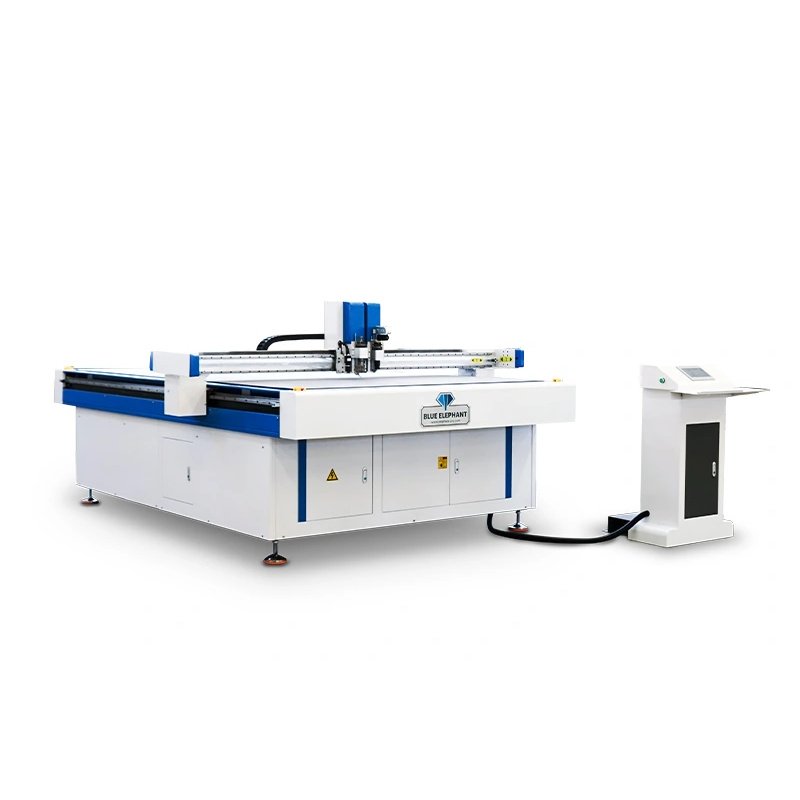

CCD vision reads printed contours for automatic pattern cutting, with oscillating, angled and kiss-cut tools covering flexible and composite materials up to 30mm thick.

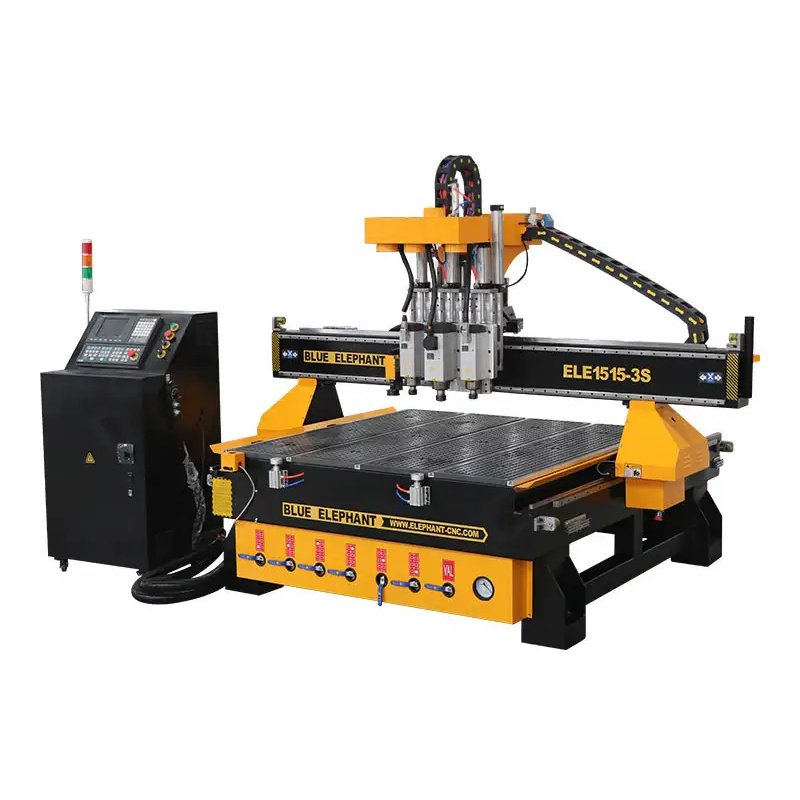

Three spindles handle cutting, engraving, drilling and milling, with CCD vision locating printed contours for irregular-shape cutting on PVC, KT board and other sheets.

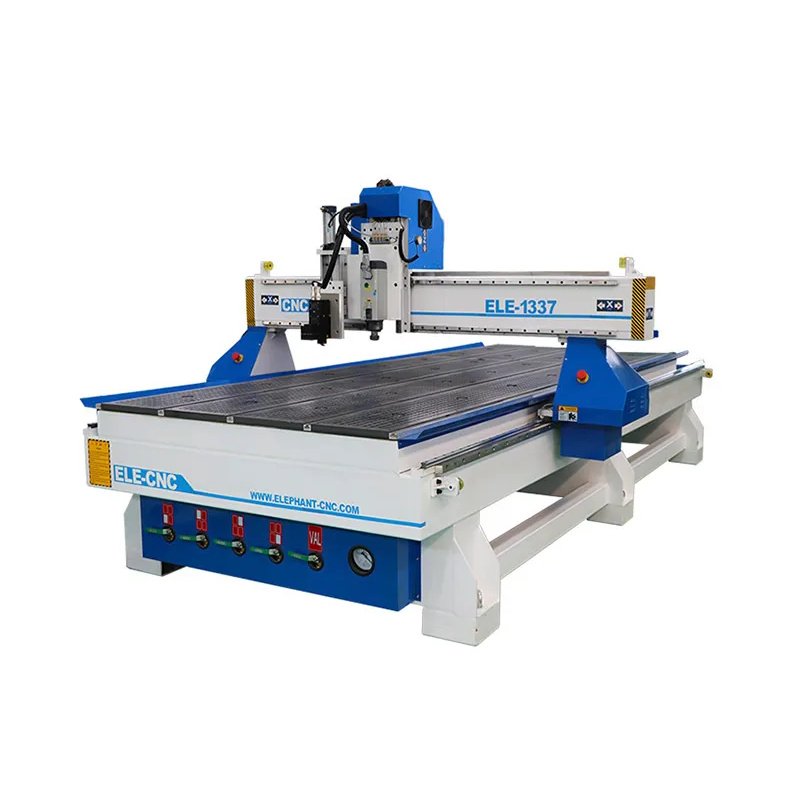

EOT-3 handles leather, foam, rubber, carpet and other flexible materials; the 3kW HSD spindle takes over for wood, plywood, acrylic and soft metal.
ElephMax Digital Cutter Features
No need to make any physical cutting dies. Just import the vector file into the system, and you can start the cutting immediately.
Adjustable tool angle enables the creation of V-shaped grooves, facilitating the perfect folding of materials at high angles.
The software of the system can automatically rotate, optimize placement, and intelligently trim the complex and irregular shapes to be cut, significantly minimizing material waste.
Adopt a conveyor system and a fully automatic feeding rack, realizing automatic feeding, edge cutting, and edge conveying without manual intervention.

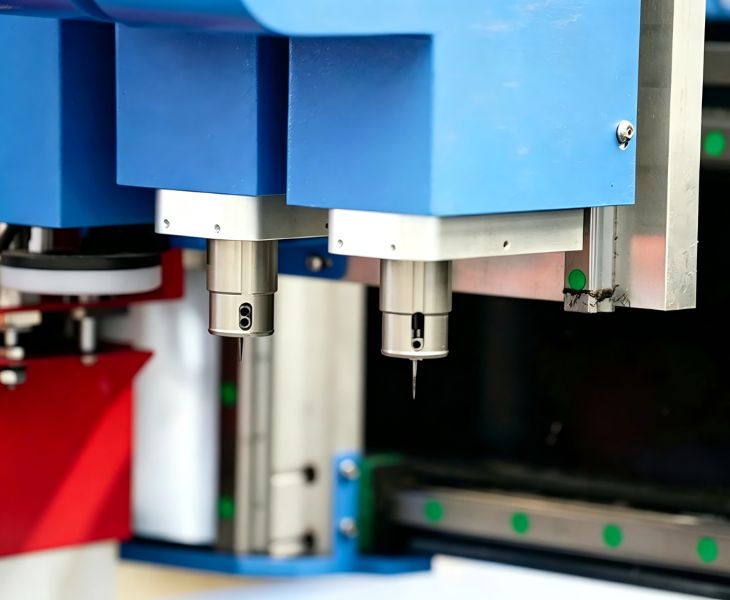

Advanced Optical Registration & Vision System
ElephMax digital cutter equipment achieves CCD visual automatic alignment. When designing, we employ high-definition industrial cameras and a fully automatic alignment algorithm. They can automatically capture the registration marks on the printed materials and correct the deformations caused by printing or material stretching. This ensures that the cutting edges have an extremely small tolerance to the printed patterns, which can be as low as ±0.1 mm.

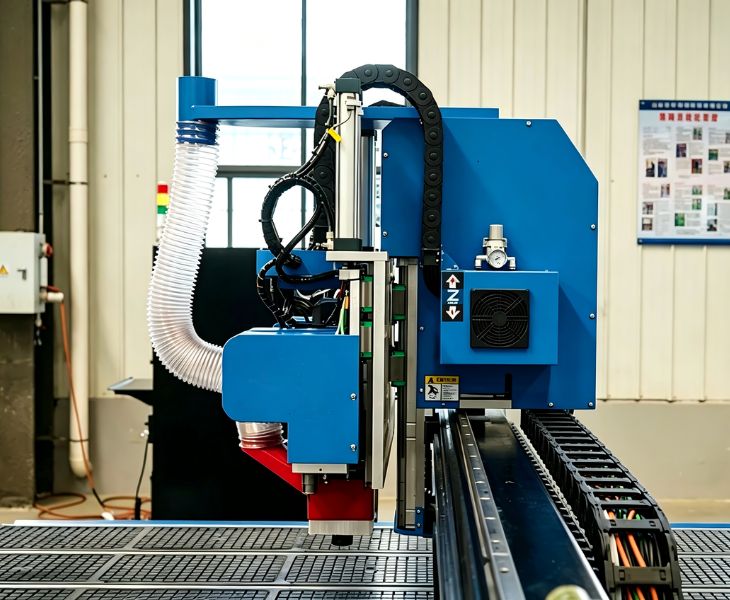

Complete Digital Security Protection
To enhance safety, we install infrared sensor safety curtains and touch-rebound anti-collision devices in front of the digital cutter machine. Once an operator’s hand or an unexpected object enters the safety area, the machine will immediately apply emergency braking. This ensures the safety of human-machine collaboration.
Why Choose ElephMax for Your Digital Cutter Solution?
Up to now, ElephMax has successfully helped over 9000 furniture factories and manufacturers maximize productivity, reduce operating costs, and achieve consistent cutting performance with our advanced digital cutters.
We have a 75,000 m² production base, equipped with advanced manufacturing equipment, precision machining centers, and modern assembly lines. To ensure high quality, each of ElephMax digital cutter equipment is manufactured according to standardized production processes and must undergo over 160 quality inspection procedures. Therefore, you do not need to worry about the machine quality consistency.
ElephMax Digital Cutter Applications

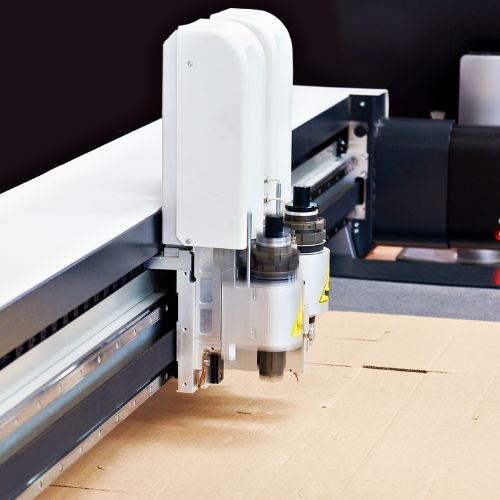

You can use ElephMax digital cutters to easily deal with short-run packaging production like corrugated boxes, cardboard gift boxes, premium grayboard presentation boxes, etc. They can realize zero tooling cost and instant modification and cutting.

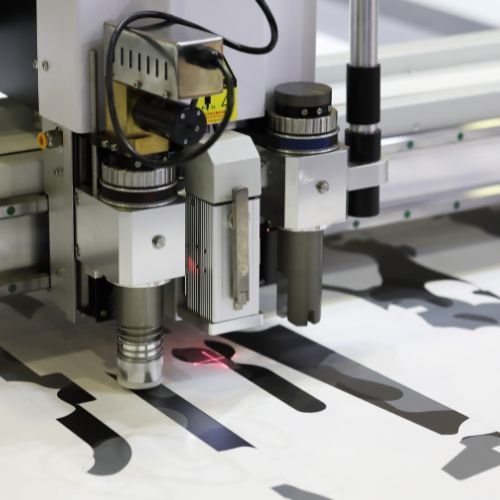

ElephMax digital cutters can capture the marking points through a high-definition camera and automatically correct the deformation offset. This achieves perfect alignment of the cutting path. Therefore, you can apply them in manufacturing KT board display boards, workshop signs, banners, various special-shaped promotional display stands, etc.
When processing natural leather, our digital cutter system can automatically identify natural scars on the leather surface with a projector. The software automatically arranges to avoid these flaws, highly improving the material utilization rate. Therefore, ElephMax digital cutters are ideal for making leather floor mats, leather seat covers, anti-glare pads, trunk pads, etc.

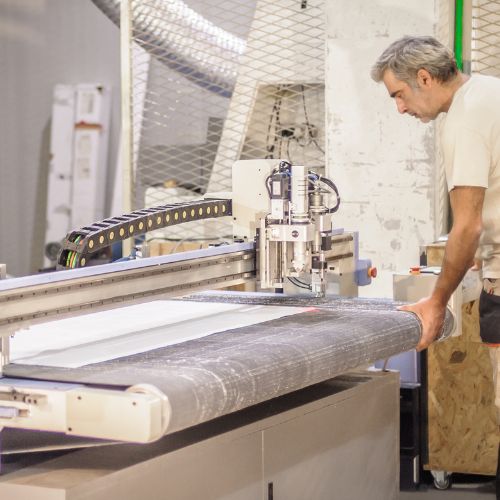

It’s cost-saving and environmentally friendly for you to use digital die cutter machines in the customized tailoring of occasional wear garments, production of waterproof clothing fabric, high-stretch fabric for swimsuits, canvas luggage, leather handbags, and shoes. These digital cutters can be equipped with a high-speed active rotary tool to prevent the fabric from being dragged.

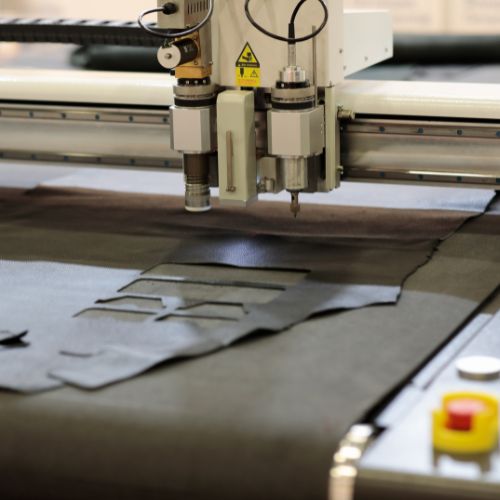

ElephMax digital cutters can be used to manufacture graphite gaskets, silicone seals, dry cloths, and sports equipment. They can easily cut through industrial foam with a thickness of several centimeters. Besides, they do not damage the molecular structure of the composite materials due to their cold-state physical tools.
More About Our Company
- Certification
- Digital Cutter Machine Video
- Specification
Supported by more than 120 patents and certifications, ElephMax ensures every digital cutter machine is ready for your long-term industrial operation.
| Performance Specifications | |
| Model Series | DFC-2516 / DFC-3020 (Customizable) |
| Drive System | High-Precision Digital Servo System / Linear Motor |
| Max. Cutting Speed | 1,200 mm/s – 1,500 mm/s (Up to 59 in/s) |
| Max. Acceleration | 9.3 m/s² – 10 m/s² |
| Cutting Accuracy | ± 0.1 mm / m (± 0.0012”/ft) |
| Repeatability | ± 0.03 mm – ± 0.05 mm |
| Mechanical Resolution | 0.005 mm (5 µm) |
| Max. Material Thickness | 50 mm / 110 mm (Standard / Extended Beam) |
| Media Hold-down Method | Intelligent Zoned Vacuum Adsorption |
| Processing Capabilities | |
| Tool Head Configuration | Dual/Triple Interchangeable Tool Slots |
| Oscillating Cutting | 18,000 – 25,000 SPM (Electric/Pneumatic) |
| Kiss-Cutting (Half-Cut) | Adjustable pressure, electronic control |
| Creasing & Scoring | Interchangeable Creasing Wheels (Various depths) |
| V-Cutting / Grooving | Bevel angles: 0°, 15°, 22.5°, 30°, 45° |
| High-Speed Milling (Router) | 1.0 kW – 3.6 kW spindle, Max. 60,000 rpm |
| Marking / Drawing | Universal Ballpoint Pen / Inkjet Module |
| Software & Vision Control | |
| Vision System | CCD Industrial High-Resolution Camera |
| Registration Speed | < 3 seconds for 4 registration marks |
| Data Formats Supported | DXF, PLT, AI, PDF, HPGL, SVG, ISO (G-code) |
| Nesting Function | Automated True-Shape Nesting Software |
| Job Retrieval | Barcode / QR Code Scanning Integration |
| Hardware Requirements | |
| Interface / Connectivity | Ethernet TCP/IP (2x 10/100 Mbit) / USB 3.0 |
| Power Supply | AC 3-Phase + N + GND, 228V / 400V, 50/60 Hz |
| Power Consumption | Machine: 2.0 kW – 4.5 kW | Vacuum Pump: 5.5 kW – 11 kW |
| Compressed Air Supply | 0.6 – 0.8 MPa (6 – 8 bar), Flow rate > 200 L/min |
| Noise Emission | < 75 dB (A) |
| Operating Environment | Temperature: 10°C – 35°C (50°F – 95°F) |
| Safety Certification | CE Mark / ISO 9001 / UL Compliance |
Testimonials
“We use ElephMax’s conveyor digital cutters to improve our corrugated box sample production. Their cutting accuracy is great. Our design changes can now be completed without making new dies. This has significantly shortened our lead time.”
Michael Schneider | Packaging Manufacturer | Germany“ElephMax flatbed digital cutters have nicely helped us handle PVC foam board, corrugated plastic, and display materials with impressive precision. Our material waste has been greatly reduced. Our production efficiency for large signage projects is also improved.”
David Wilson | Sign & Display Manufacturer | United States“We purchased ElephMax foam digital cutters. They produce clean, consistent cuts for upholstery foam and cushioning materials. Compared with manual cutting, our productivity has greatly improved.”
Marco Rossi | Furniture Manufacturer | Italy“ElephMax leather digital cutter has greatly improved the accuracy of our sofa and chair component cutting. The nesting software also helps us maximize leather usage and reduce production costs.”
Anna Kowalska | Upholstery Manufacturer | Poland“Since installing ElephMax textile digital cutter, we can now process large fabric orders much faster. The machine’s cutting quality is consistent. Our operator workload has been reduced considerably.”
Mehmet Yılmaz | Textile Manufacturer | Turkey“Our ElephMax composite material digital cutter shows excellent edge quality when processing fiberglass and carbon fiber sheets. Now, it has become an important part of our prototype and small-batch production.”
Daniel Thompson | Composite Materials Manufacturer | Canada
ElephMax Digital Cutter Selection Guide
| Digital Cutter Type | Key Advantages | Best For |
| Oscillating Knife Cutting Machine | High-speed cutting, no material burning, clean edges | Heavy-duty material cutting |
| CNC Router With Camera | Camera positioning, cutting + engraving + milling | Precision contour cutting & milling |
| Flatbed Digital Cutter | High flexibility, high accuracy, multiple tools | Multi-material sheet cutting |
| Roll-Feeding Digital Cutter | Automatic feeding, higher productivity, reduced labor | Continuous roll material processing |
| Roll-to-Roll Digital Label Cutter | Continuous production, fast label processing | Label & sticker production |
| Digital Laser Cutter | Fine details, sealed edges, engraving capability | Precision cutting & engraving |
| Digital Knife Cutter | Cost-effective, clean cutting, versatile applications | General material cutting |
| Digital Plotter Cutter | Easy operation, high-speed graphic cutting | Lightweight material cutting |
Usually, a digital die cutter price is influenced by lots of factors, including machine size, cutting area, tool head, tooling options, feeding, bed structure, drive motors, motion control, vision and automation features (such as a CCD camera system), software license, nesting optimization, brand, and after-sales support.
To show our sincerity, ElephMax always gives a transparent quote, and we provide various free after-sales services. If you want to get more information, just contact us.
On most occasions, although a digital cutter can cut paper, it cannot replace a digital paper cutter. That’s because the digital paper cutter can deal with a whole stack of paper (for example, 500 sheets of paper, with a thickness of several centimeters) at one time.
However, the digital cutter only processes several pieces of paper at a time because it focuses more on cutting out complex irregular contours.
Yes. We provide various kinds of digital cutter machines, including digital fabric cutters, digital foam cutters, digital cardboard cutters, etc. We can provide custom services according to your specific production requirements. If you have such requests, contact our engineering team to request a customized tooling layout.
Yes, a digital cutter can replace a digital mat cutter, but you have to add a bevel cutting tool to your digital cutter machine.
Yes, our digital cutters can be used to cut artistic edges. Whether it’s intricate and independent artistic trimmings, carved window decorations, or special decorative edges on packaging boxes or art framing, they can handle them with ease.
No, the digital craft cutter is always used for household, DIY, craft workshops, and small-scale cultural creations. If you want a machine for industrial manufacturing, our industrial digital cutter is totally qualified for the job.
