CNC 6-sided Drilling Machine Manufacturer in China
- Dual-Clamping & High-Speed Feeding: Features pneumatic grippers that tightly secure panels during high-speed movement, preventing slipping and ensuring exact hole placement.
- Comprehensive Grooving: An integrated high-power routing spindle allows seamless back-panel grooving and invisible fastener slots alongside standard drilling.
- Heavy-Duty Welded Frame: The heavy steel gantry and bed eliminate structural vibration and maintain long-term stability.
- Intelligent Barcode Scanning System: Workers simply scan the label, and the machine automatically loads the corresponding program.
What Is the CNC 6-sided Drilling Machine?
The CNC six-sided drilling machine is one piece of numerically controlled drilling equipment that integrates multiple drill head units. It can complete drilling, routing, and slotting operations on multiple surfaces of panel materials in one setup. You can use it for the production of panel furniture such as cabinets, wardrobes, office furniture, and custom furniture.
Compared with traditional drilling methods, after the sheet material is fed into our CNC six-sided drilling machine, you do not need manual flipping. Your production line adopting our six-sided drill technology can increase the drilling efficiency by more than 40% and reduce the labor cost by 30%.
CNC 6-sided Drilling Machine Types
The ATC system handles automatic tool changes, while the right-angle head and saw blade unit support side milling and laminar mortise groove processing.
Two drilling units and four milling heads expand the machine’s processing range for drilling, milling, grooving, and connector operations.
Four drilling heads provide multiple drilling positions for panel processing, with ATC technology handling automatic tool changes during production.
Four milling heads work with the single drill unit to handle side milling, grooving, and two-in-one connector processing.
The double-station design allows two work areas to operate independently, supporting continuous panel drilling without waiting for one station to finish.
Dual drilling units work from different positions on the panel, increasing drilling efficiency by 30% and reducing manual processing requirements.
Wireless code scanning identifies each panel before machining, while automatic positioning coordinates six-sided drilling with front and rear grooving.
The return table brings processed panels back to the loading position, allowing one operator to manage panel loading and unloading.
The double drill units work with ATC tooling to combine drilling, grooving, milling, and laminar processing in one machining cycle.
The compact ET5 combines one drill unit with automatic sorting, positioning, and wireless code scanning, eliminating manual panel turning.
ElephMax’s CNC 6-sided Drilling Machine Features
Our CNC 6-sided drilling machine can complete six-sided drilling and slotting in one setup, eliminating the need for manual flipping and improving processing accuracy.
ElephMax’s machine adopts the air-floatation-type desktop design to avoid damaging the panels and reduce labor intensity.
Our CNC 6-sided drilling machine is equipped with an automatic program recognition function for reducing the need for manual intervention and enhancing operational efficiency.
With a positioning tolerance of ±0.1 mm, our six-sided CNC drilling center ensures that every hole, groove, and gap is perfectly aligned.
Flexible Material Compatibility
No matter whether you are processing particleboard, medium-density fiberboard, multi-layer board, or solid wood finger-jointed board, the ElephMax CNC six-sided drilling machine can handle it easily. Our equipment is compatible with the vast majority of commonly used substrates on the market from conventional artificial boards to solid wood boards.

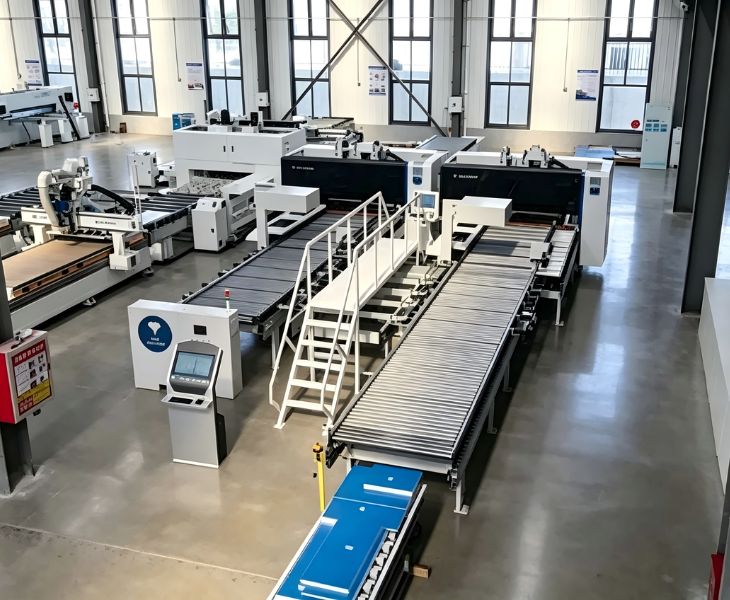

Unmanned Production Lines
Our equipment is equipped with industrial-grade communication interfaces for supporting seamless integration with automatic loading and unloading systems and power conveying lines. You can link it with core equipment such as fully automatic edge-fitting machines and CNC cutting machines to quickly form a 4.0 intelligent automated production line for panel furniture.
Why Choose ElephMax?
- Rich Experience in Research and Development: Our R&D team has over 100 people to improve the performance of the equipment and the service support. ElephMax has obtained more than 120 patents both domestically and internationally.
- Custom Furniture Manufacturing Capability: We have three factories that independently produce based on your customized requirements. Each machine undergoes rigorous testing before leaving the factory.
- Global Market Recognition: Our products are sold to 180+ countries and regions worldwide and serve over 9,000 enterprise customers.
- Reliable After-sales Support: A comprehensive after-sales service system and 24-hour multilingual online assistance.
Applications of ElephMax Wood Door Making Machine
From standard cabinets to custom kitchen designs, ElephMax delivers precision drilling for hinge holes, connecting rod holes, shelf support holes, and back panel grooves—all in a single setup for you.
We handle varying sizes, hole patterns, and hardware configurations effortlessly with six‑sided processing in one clamping.
From desktops and pedestals to bookcases and modular workstations, office furniture requires precision drilling for connectors, hinges, and adjustable shelving systems. ElephMax ensures accurate hole positioning for your perfect assembly.
If you have some demands such as small batches, frequent order changes, and unique designs, ElephMax meets your needs with barcode scanning, automatic program loading, and instant switching between different panel sizes and patterns.
For your mass production, our equipment can achieve smooth material flow from cutting to drilling, which minimizes handling and reduces errors. ElephMax is a ideal choice for your flat-pack furniture, cabinets, and office furniture manufacturing.
More About Our Company
- Certifications
- CNC 6-sided Drilling Machine Video
- Specification
From raw material inspection to the final machine testing, we ensure that each CNC 6-sided drilling machine complies with international standards such as ISO9001 quality management system certification, SGS product quality technology certification, and CE EU product quality certification.
| Model | Workpiece Size (mm) | Spindle / Tool Highlights | Key Selling Points |
|---|---|---|---|
| ET5 Compact | Length 200‑2800 Width 30‑1220 Thickness 12‑45 | 3.5kW × 2 Upper: 12V+8H; Lower: 9V | Small footprint, lower shipping cost, 3‑clamp flexible positioning |
| ET6 Single Drill Unit + 4 Milling Heads | Length 250‑2800 Width 50‑1200 Thickness 12‑45 | Upper: 5.5kW ATC Lower: 2×3.5kW +2.5 kW 4‑head milling | ATC auto tool change: complete 6‑side processing in one setup |
| ET6 Double Drill Units + 4 Milling Heads | Length: 70‑3300 Width: 30‑1200 Thickness: 9‑55 | Upper: 9kW (C‑axis + ATC) Lower: 6kW × 2 | Parallel processing with dual drill units, up to 30% higher efficiency |
| ET6 Double Drill Units + ATC + Right‑Angle Head + Saw Blade | Length: 250‑2800 Width: 50‑1220 Thickness: 12‑45 | Upper: 6kW ATC Lower: 3.5kW × 2 Includes saw blade unit | All‑in‑one: Lamello slots, invisible connectors, side milling, sawing |
| ET6 with Return Table | Table size: 1300×2500 | 2×3.5kW Upper: 12V+8H; Lower: 9V | Return table design; only one operator needed for loading/unloading |
| ET6 Double Stations | Length: 250‑3000 Width: Left 50‑650 / Right 50‑800 | 3.5kW × 4 Each station has an independent drill unit set | Left and right stations operate independently, doubling throughput |
Testimonials
“The ET6 ATC CNC 6-Sided Drilling Machine is incredibly efficient. The ATC feature saves so much time, and the precision is impressive. I can complete multiple drilling and milling operations in one pass, which has greatly improved our workshop productivity. Great investment for any furniture business.”
OEM Woodworking Factory | Matej from Slovenia“I’ve been using the ET6 ATC CNC 6-Sided Drilling Machine for a few weeks now, and it’s a game-changer. The automatic tool changer makes complex jobs so much easier, and the four milling heads allow me to handle multiple operations in a single setup. Excellent build quality and very smooth operation. Highly recommend!”
Modular Furniture Manufacturer | John Miller from America“This machine exceeded my expectations. The single drill unit combined with four milling heads allows precise drilling and slotting on all six sides of my panels. Setup was straightforward, and the machine runs quietly and efficiently. Perfect for high-volume production.”
Office Furniture Factory | Maria Fernandez from Vietnam“I am very satisfied with this purchase. The ET6 handles complex panel operations with ease, and the automatic loading and tool-changing system is fantastic. The four milling heads work perfectly for grooves and connector holes, and the machine’s stability is outstanding. Definitely worth every penny.”
Wooden Board Manufacturer | Sophie Dubois from France
Yes. Our 6-sided CNC drilling machine is fully compatible with popular international furniture design and nesting software, such as Cabinet Vision, AlphaCAM, IMOS, Mozaik, and WoodCAD/CAM. It directly accepts standard ISO G-code and DXF/XML files exported from these platforms.
Our equipment features an intelligent barcode scanning system. Workers simply use a handheld scanner to read the barcode printed on the panel’s edge label. The controller instantly matches and loads the corresponding drilling and grooving program, eliminating manual file selection errors.
Yes. Our machines equipped with a right-angle head, C-axis spindle, and ATC system can process Lamello slots, Clamex connectors, invisible connectors, and other concealed fastening solutions. These features expand the machine’s capabilities beyond standard drilling and make it suitable for your advanced furniture assembly requirements and modern design trends.
A 6-sided drilling machine is primarily designed for drilling, grooving, and routing on all six sides of a panel in a single setup. A CNC nesting machine is mainly used for cutting and shaping panels from raw boards. In a modern furniture factory, the nesting machine performs panel cutting, while the 6-sided drilling machine completes precision drilling and machining operations. You can use these two machines together to create a highly automated production workflow.
No. With the intuitive touch-screen interface (powered by SYNTEC) and the barcode scanning workflow, any operator does not need to know complex CAD/CAM programming. Most workers can master basic operation within a single day of training.
ElephMax provides comprehensive multi-language digital user manuals and step-by-step HD video tutorials for installation, wiring, and daily maintenance. For on-site needs, we can dispatch experienced mechanical and software engineers to your factory for professional commissioning and staff training.
Based on factors such as your production scale, processing complexity, and budget. For small and medium-sized factories, the ET5 compact model or the ET6 single-drill package is suitable for you; for batch production, we recommend you choose a double-drill package; for complex processing requirements, the ATC automatic tool changer model is better. Please feel free to contact us for professional selection advice.
You need to clean the workbench and the dust collection port daily and regularly inspect the pneumatic system and its lubrication status. Our equipment is equipped with an automatic lubrication system to reduce the amount of manual maintenance work. For detailed maintenance procedures, please refer to our user manual that comes with the equipment.
The machine is carefully wrapped with moisture-proof plastic film, cushioned with protective foam, and securely fastened inside a heavy-duty, fumigation-free wooden export crate to withstand long-distance ocean transit and port handling.
The exact delivery date depends on your model and order quantity. Generally, after you sign the contract, it will take 30 to 45 working days. For more details, please contact our sales representative.
