Edge Banding Machine Manufacturer in China
- Our fully automatic edge banding machines are equipped with a high-speed feeding system with speeds of up to 23 m/min to suit mass production.
- Each machine tool in ElephMax that we manufacture undergoes over 160 quality inspection procedures before shipment.
- You can start with a manual edge banding machine and upgrade to semi-automatic or fully automatic models as your orders grow.
- We also offer a range of optional upgrades, such as heating lamps, air compressors, pre-melting devices, and upper glue pots.
What is the Edge Banding Machine?
Our edge banding machines are core woodworking equipment for panel furniture, specifically used for attaching edge banding (PVC, ABS, wood veneer, melamine, etc.) to the exposed sides of boards. From manual to fully automatic, ElephMax’s edge banding machines serve both small workshops and large-scale furniture manufacturers, helping improve efficiency in daily manufacturing. They are used in furniture, cabinets, and interior decoration production and can achieve clean and strong edge finishes on different types of boards, reducing product defects.

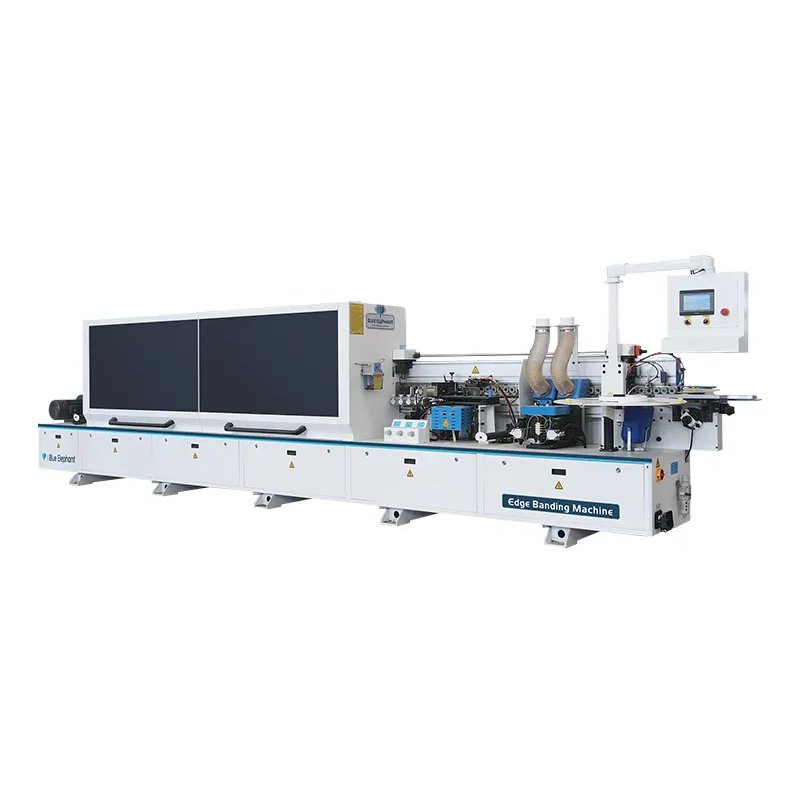

Automatic Edge Banding Machine

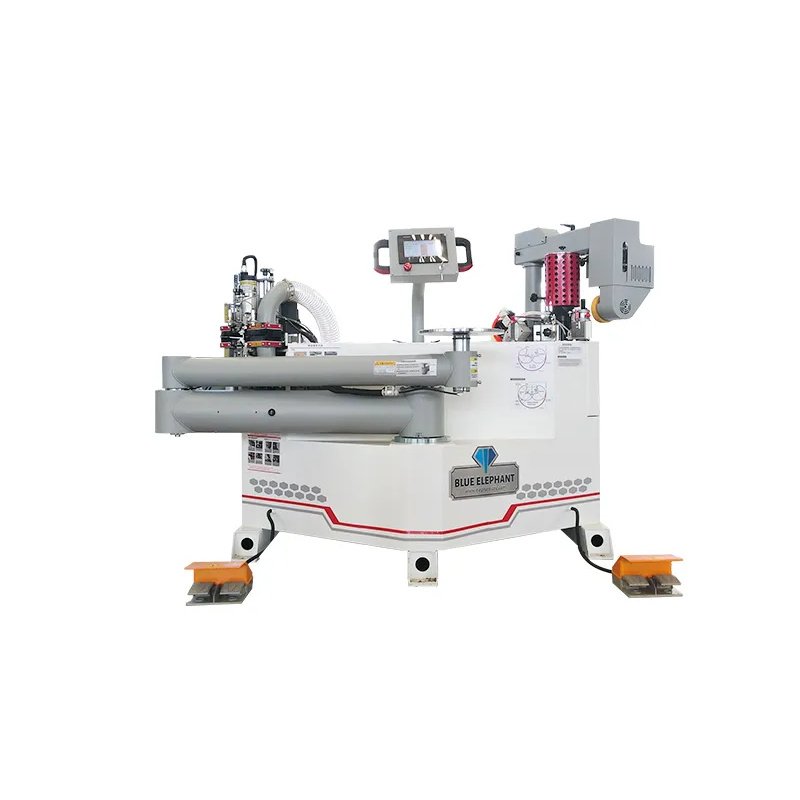

Curved edge bander with 15° tilting head for round/oval panels, upper Teflon-coated glue pot, secondary pressing roller, and 14-70mm edge width range.
Dual-mode edge bander switches between straight and 45° bevel banding with pre-milling, end cutting, scraping, buffing, and panel pre-heating for cold conditions.

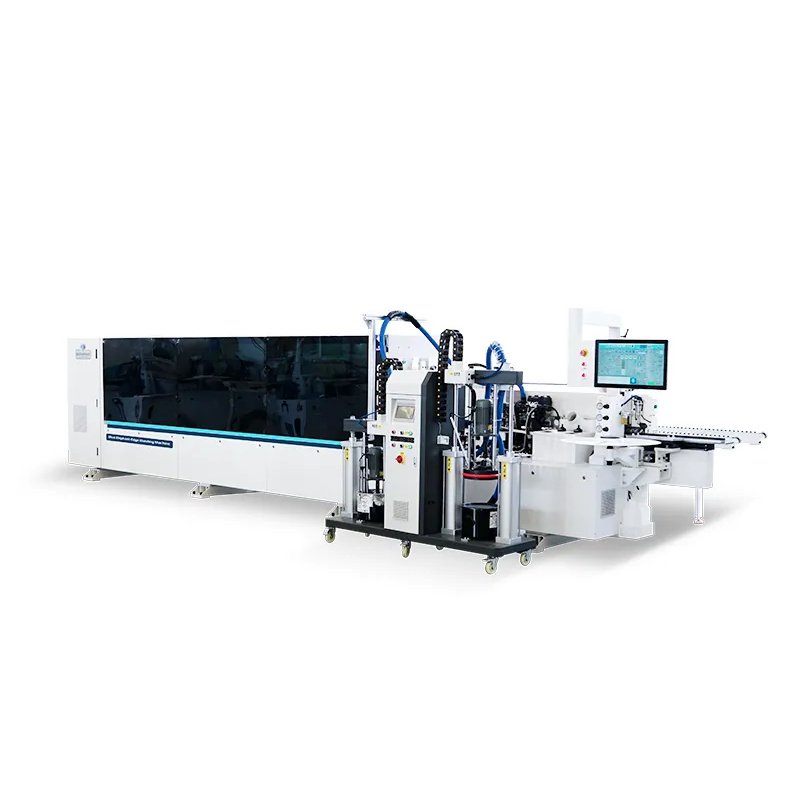

Heavy-duty narrow-panel edge bander with integrated steel beam, servo-controlled edge feeding, offset six-wheel pressure, and heavy-duty tracking/rounding for high-volume production.
Pre-milling edge bander with fast glue melting, multi-point pressure, end cutting, rough/fine trimming, tracking rounding, scraping, and buffing for seamless MDF/plywood finishes.

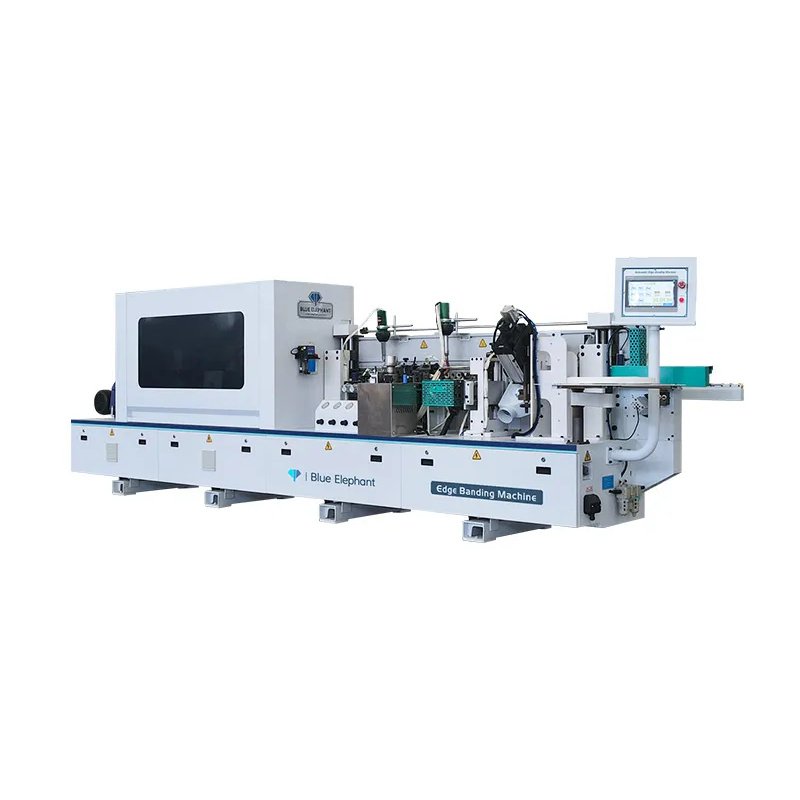

45° bevel edge bander with slotting, bevel/straight dual glue pots, hot-air shaping, and integrated pressing for aluminum honeycomb and PET panels.

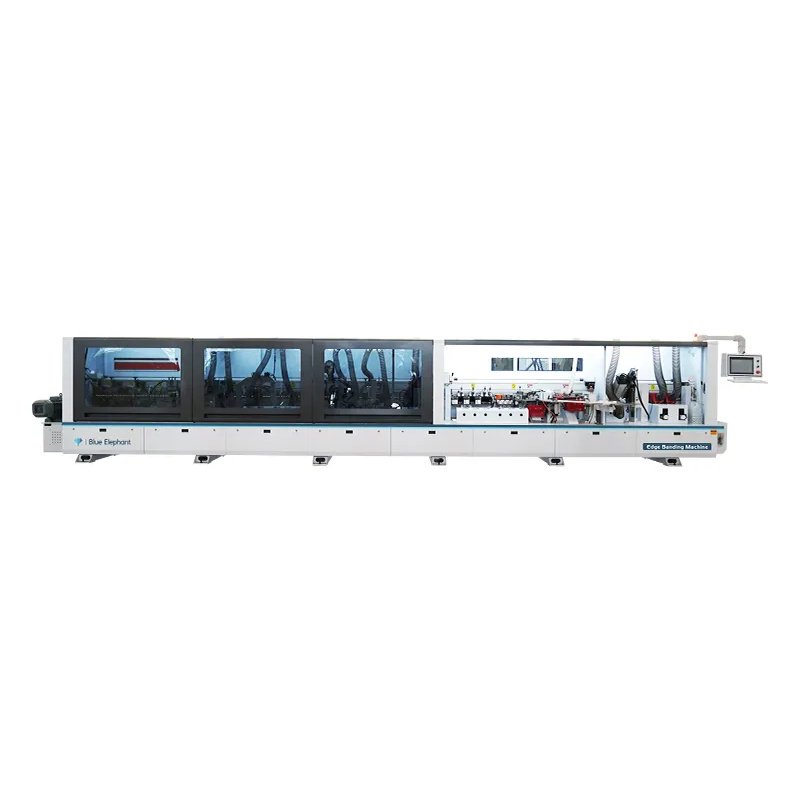

Dual-mode edge bander with 5.5KW bevel saw-milling, hot-air pre-heating, profile tracking, and 17-step process for bevel/straight switching in high-end furniture.

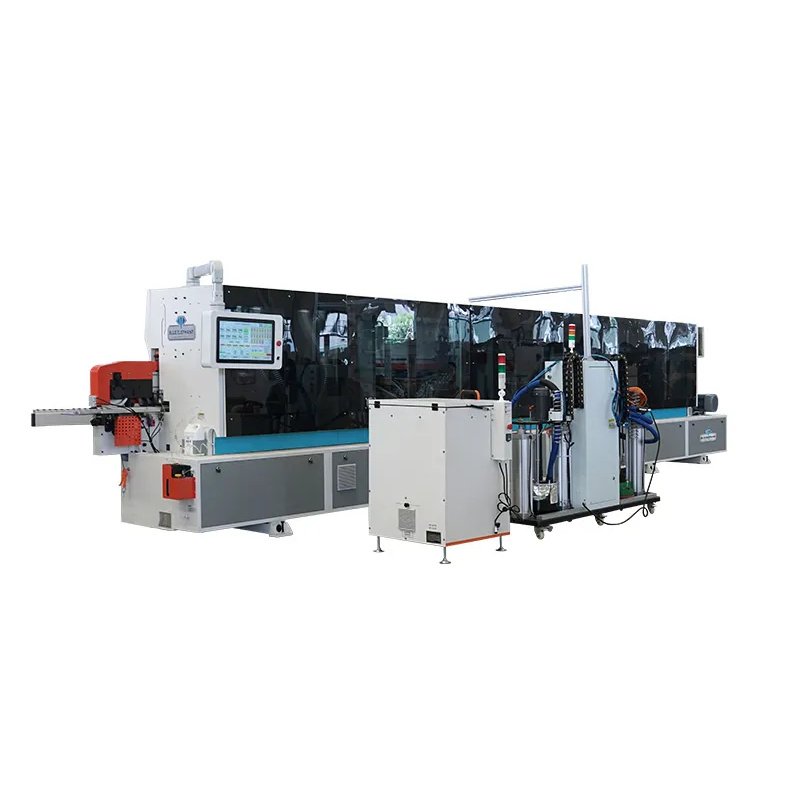

Soft-forming edge bander with 21 profile shapes (J/C/diamond/teardrop), touchscreen one-touch switching, precision template milling ≤0.2mm, for handle-free panel doors.

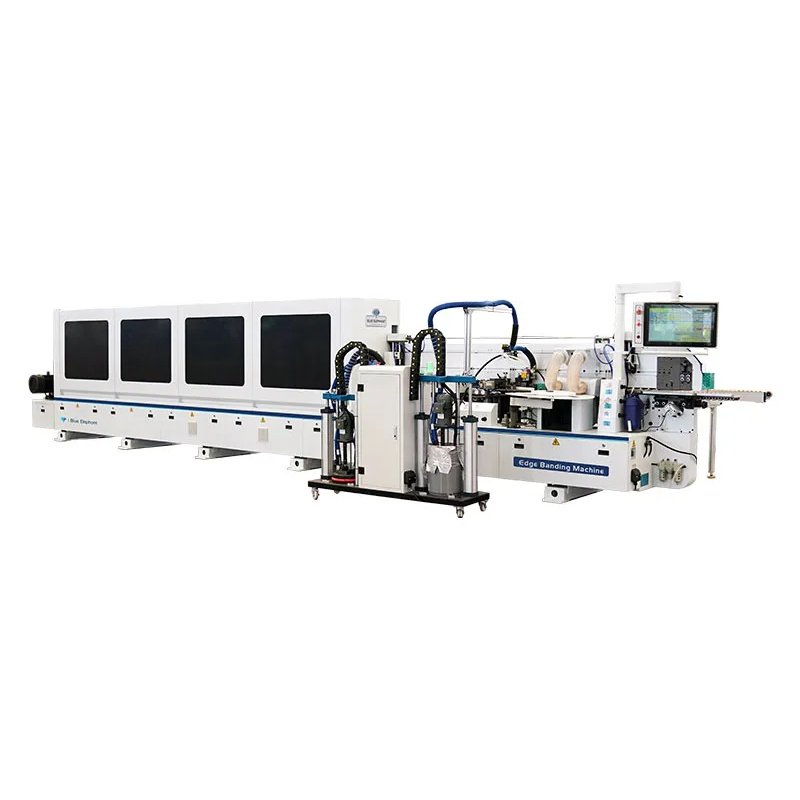

Aluminum-wood dual-purpose edge bander with PUR double glue pots, steel/rubber/belt combo pressing, rough/fine trimming, and double scraping/buffing for honeycomb panels.
Semi-Automatic Edge Banding Machine

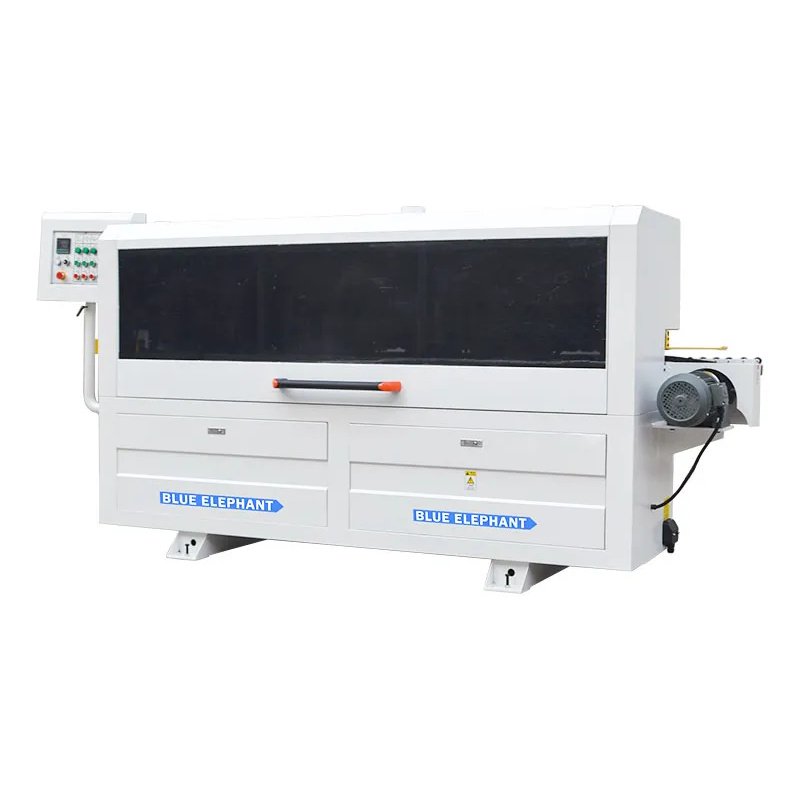

Semi-automatic edge bander with conveying, gluing, cutting, flushing, trimming, and buffing—cost-effective straight/curve banding for small workshops.
Manual Edge Banding Machine

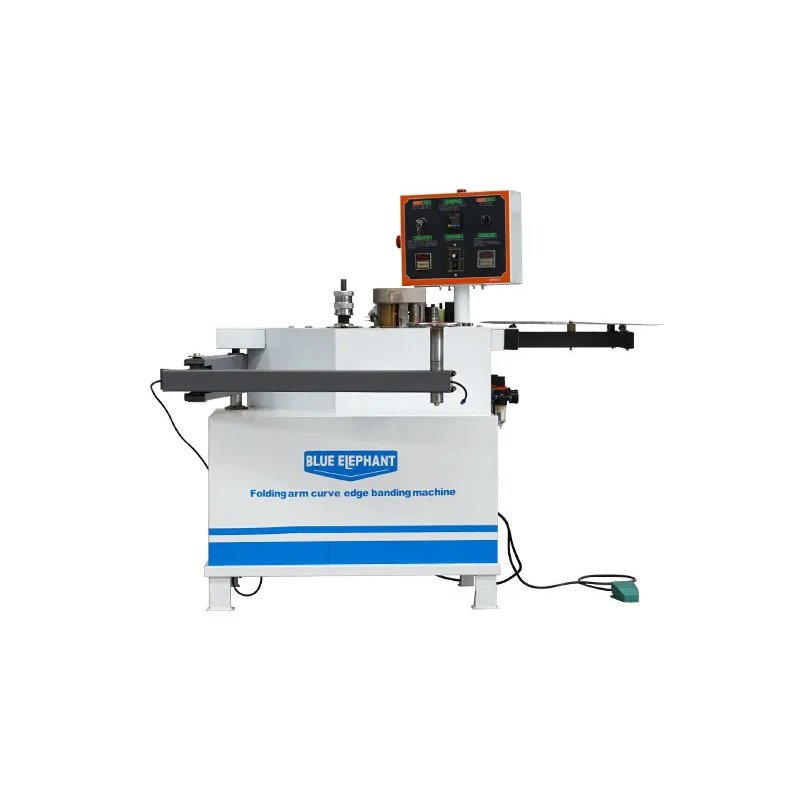

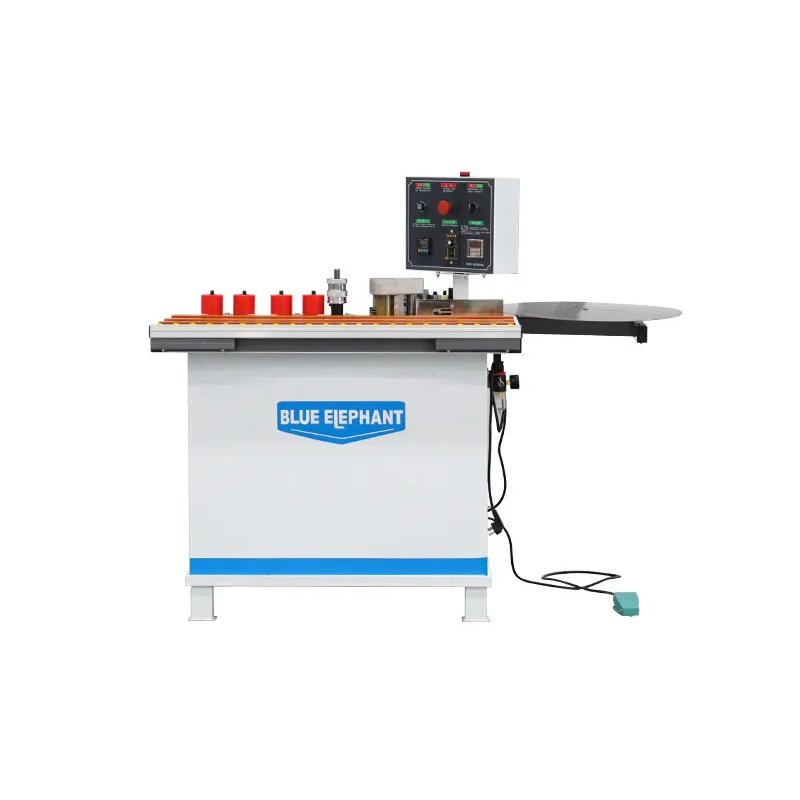

Manual folding-arm edge bander with digital display, timing cut-off, suction cups, 0-26cm/s speed, and 88kg lightweight design for straight/curve edges.
Manual edge bander with plate-type quick-positioning gluing for ultra-thin edges, no glue tank clogging, panel length unlimited, and 0-26cm/s speed.

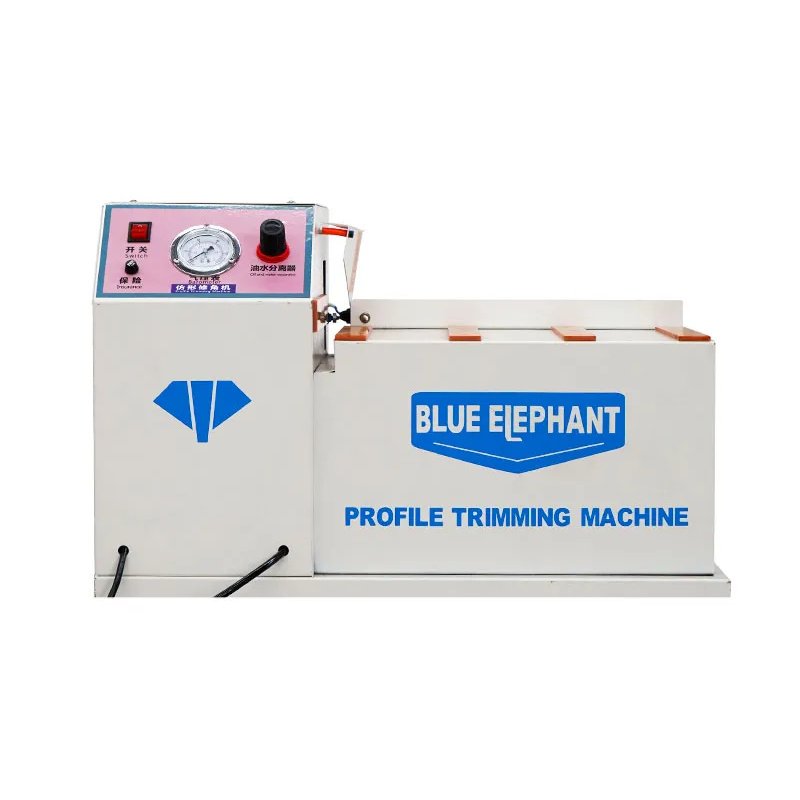

Profiling Corner Trimming Machine
Corner profiling trimmer for R-arc chamfering on door panels, adjustable angle, precision cutter head with guard, 27kg portable, 350W.
Why Choose Our Edge Banding Machine
All of our machines comply with ISO9001 and CE standards for safety and reliability, and each of them is tested before shipment to ensure stable performance.
We offer more than 30 models to suit your different needs. Popular options include E-70JDSR Automatic Bander Machine, 380CK Semi-Automatic Edge Banding Machine, and W1 Folding Arm Manual Edge Banding Machine.
The machine supports PVC edge banding, ABS, and acrylic edge banding materials, allowing you to flexibly process different materials.
Our machines can work with MDF, particle board, plywood, melamine board, and other engineered wood panels, providing you with stable edge banding results for different types of furniture panels.

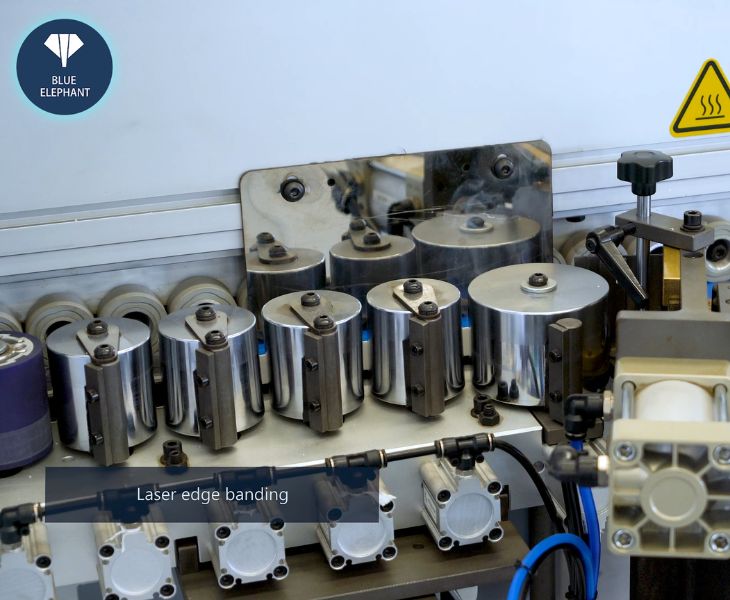

Our machines can combine optional laser banding and hot air fusion to achieve a near-zero glue line appearance.
Our products can be equipped with a precision glue roller, so you don’t have to deal with visible corner glue lines, which helps reduce glue overflow.
Equipped with precise temperature control, our equipment prevents the adhesive from overheating or cooling too quickly, so you don’t have to face panel burn or weak bonding.
The basic operation of our edge-banding machine can be learned in just 1 to 2 days of training, and within two weeks, your worker can become familiar with daily operation within two weeks, boosting your production efficiency.

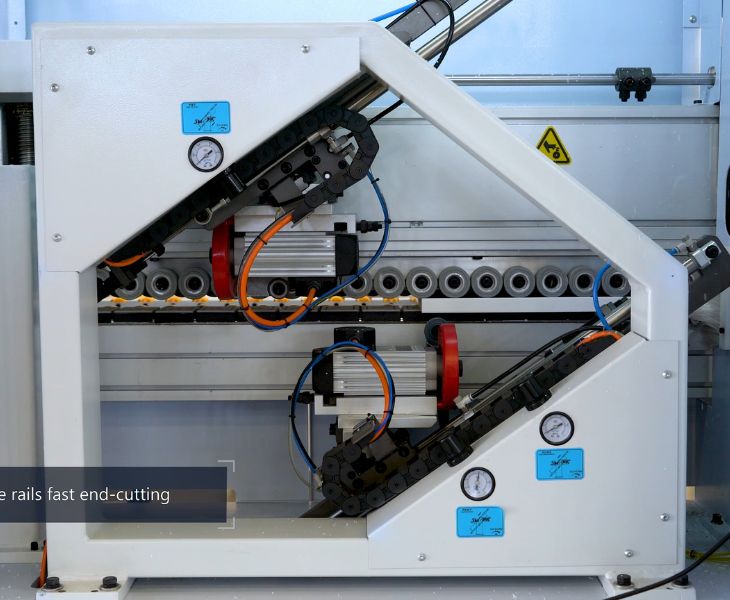

Smooth and Durable Edge Banding Finish
Our edge banding machines have accurate pressure rollers and optional PUR to help achieve minimal glue lines and seamless edge banding. Our machines are also equipped with components from well-known brands such as SIEMENS, BECKER, and OMRON, so you don’t need to worry about unstable edge banding quality. If you are concerned about the corner glue line, we also offer machines equipped with a corner rounding system to meet your precise corner trimming needs. Furthermore, our high-pressure system firmly bonds the edge banding material to the board, reducing edge peeling and cracking.
Full Range of Optional Equipment
Our products can be used in factories of all sizes. If you run a small-scale workshop with mainly custom orders, a manual edge banding machine is more suitable for you. It fits a narrow, small workshop layout, is flexible for different panel shapes, and has a lower initial investment.
If it is a small or medium-sized factory, a semi-automatic machine can help you further improve efficiency.
If continuous large-scale production is needed, a fully automatic edge banding machine can help you increase efficiency and output.
You can choose the suitable machines based on your factory size and production needs.
Why Choose ElephMax?
- Factory and Technical Team: 75,000 m² modern production base and a 500-person professional technical service team. 30+ locations worldwide to support edge banding machine installation and service.
- Rich Industry Experience: As an edge banding machine company, we have 16 years of experience providing customized edge banding machines for sale to more than 9,000 domestic and overseas manufacturers.
- Customization and OEM Available: Adjustable power levels and software integration, color and appearance styles.OEM solutions with your logo for market distinction.
- Reliable After-sales Support: 12-month warranty, 60-day trial period, plus lifetime technical guidance and support.
Common Applications of Our Edge Banding Machines
The use of the edge banding machine can effectively make the furniture more durable and help extend the furniture’s service life and ensure consistent edge banding quality under mass production.
Our edge banding machine can improve the appearance of panels, providing neat and attractive edge finishes, while enhancing the professionalism of interior decoration projects.
With our edge banding machines, you can ensure clean, consistent edge finishes across commercial display fixtures. Faster production and reliable delivery for multi-store rollout projects are supported.
Our edge banding machines can achieve high-quality edge finishing for custom furniture and woodworking projects. Their use can also increase production and keep a stable finishing quality.
More About Our Company
- Certification
- Edge Banding Machines Video
- Specification
Over 120 patents and authoritative certifications meet internationally recognized standards.
Watch our machine perform to create smooth, seamless edges and improve the finish.
| Item | Specification / Description |
| Product name | Edge Banding Machine |
| Machine type | Manual / Semi-automatic / Fully automatic |
| Edge Band Thickness | 0.4–3.0 mm standard (higher capacity available on selected models) |
| Panel thickness | 10 – 60 mm (customizable) |
| Panel width | ≥ 60 mm |
| Edge banding width | 12 – 70 mm |
| Feeding speed | 0-23 m/min (adjustable, high-speed optional) |
| Working pressure | 0.3 – 0.8 MPa (depending on machine models) |
| Gluing system | EVA / PUR system (single glue pot / dual glue pot optional) |
| Cleaning system | Optional automatic glue cleaning spray system |
| Suitable materials | MDF, particle board, plywood, melamine board, solid wood panels, and other engineered wood panels |
Testimonials
As our business continued to grow, our original edge banding machine could no longer keep up with production demands. We needed a more efficient and cost-effective solution. Thanks to ElephMax’s recommendation of the E-70J Automatic Edge Banding Machine, our production efficiency has improved significantly.
Vietnam | Furniture FactoryNguyen Van Minh — Factory SupervisorWe are a company that specializes in custom wooden furniture. We needed a reasonably priced edge banding machine for small shops that could handle irregular shapes. The F97 special-shaped manual edge banding machine is very good. It can work on different shapes and help us complete custom orders easily. They told us the adhesive layer uses a plate-type fast positioning design, which allows ultra-thin edge banding. This is exactly true.
Indonesia | Wooden Furniture WorkshopBudi Santoso — Operations ManagerAt the beginning, we used semi-automatic equipment. The efficiency was low and the edge quality was not consistent. Later, we used the 783J bevel and straight integrated edge banding machine recommended by them. The production line became much more stable. The machine handles continuous panel feeding smoothly and reduces manual adjustment during operation.
United States | Cabinet ManufacturerRobert Johnson — Production Manager
The changeover process is straightforward and intuitive. Fully automatic edge banding machines are equipped with a control system that allows operators to switch parameters for material changes, helping to reduce downtime.
For manual and semi-automatic edge banding machines, the process usually involves replacing the edge banding roll and making basic parameter adjustments, which takes a relatively short time.
In most cases, these changes have little impact on normal production.
Many factors affect performance, but a few are especially important. Improving edge banding machine performance usually starts with the following points:
- Edge banding material
Commonly used materials include PVC, ABS, wood veneer, and melamine edge banding tape. Different materials affect bonding strength and edge finishing quality.
- Glue quality and application
Glue directly affects bonding strength and final appearance. Poor temperature control or uneven glue application may cause edge lifting, weak bonding, or visible glue lines.
- Board type and quality
Uneven edges, high moisture content, or inconsistent board density can reduce bonding quality. Proper edge preparation helps improve results.
- Machine accuracy
Feeding stability, pressure control, trimming precision, and polishing quality all affect the final finish. Higher precision usually means cleaner edges and less rework.
This mainly depends on your budget and production requirements. A new edge banding machine is more stable in performance and has a warranty and after-sales service.
Second-hand machines are cheaper but involve higher risk.
If you want to purchase a used machine, please pay attention to the following points:
- Check the key components, such as the gluing system and control system to make sure all key parts are working properly.
- It is also necessary to review the maintenance times and make sure you can accept possible wear and replacement of certain parts.
- Test whether the machine runs smoothly during operation.
Many edge banding machines are equipped with a cold air system. However, a hot air system can be installed according to your needs. If you need to preheat the edges of the panels or the edge banding to improve adhesion (especially at low temperatures or when using high-end PUR), choosing a hot-air edge banding machine will help achieve this.
Adhesive marks often appear when too much adhesive is applied, the adhesive is applied unevenly, or temperature control is improper. This may also be related to the condition of the panel surface or insufficient trimming after sealing.
EVA has weaker water resistance and moisture resistance compared to PUR. If you use them at low or high temperatures, EVA is more likely to delaminate. So if your panels are used for cabinets, bathrooms, outdoor areas, or in high-temperature, high-humidity environments, PUR is a better choice. In addition, PUR glue lines are almost invisible, which gives a more refined appearance and gives off very little odor.
EVA can be re-melted, while PUR can’t be re-melted once cured, which makes rework more difficult.
If your budget is limited and your quality requirements are moderate, EVA is a more cost-effective option.
During the edge banding process, glue overflow is a relatively common issue. Without an automatic glue cleaning spray system, it is more likely for glue buildup and blockages to occur. The following aspects can be considered for improvement:
- Adjust the glue pot so the glue layer is not too thick
- Make sure the glue temperature is stable and suitable for the adhesive type
- Check that the pressure rollers are applying stable pressure
- Keep the glue system clean and carry out routine maintenance
Daily output of our manual or semi-automatic edge-banding machines: approximately 1,500–3,000 meters per day; daily output of our standard fully automatic edge-banding production line: approximately 3,000–6,000 meters per day.
Our manual or semi-automatic edge banding machines have a payback period of approximately 7–16 months, with limited output and a high reliance on manual labor. If you want a faster ROI, choose an automatic edge banding machine, which typically takes about 6–12 months. When machine utilization remains high, you can also invest in a high-speed automatic edge banding machine, which has a payback period of 5–7 months.
It depends on your product requirements. If you manufacture high-end furniture or export to the high-end furniture market, then PUR is worth it because it provides excellent edge-banding results, is water- and moisture-resistant, and is less likely to delaminate in high-temperature, high-humidity environments. If your factory operates on a low-cost, mass-production model, then EVA is more cost-effective.
If you choose EVA adhesive, the cost is about $0.02–$0.06 per linear meter of edge banding. With a moderate annual production volume of 50,000–200,000 meters, the annual cost would be $1,000–$12,000. The cost of PUR adhesive is about $0.05–$0.15 per linear meter; for the same production volume, the annual cost is approximately $3,000–$30,000.
