Stone CNC Router Supplier in China
- Built for the rigorous demands of global stone fabricators, contractors, and monument makers.
- Engineered with heavy-duty cast-iron structure frames, high-torque water-cooled spindles, and advanced dust-and-water protection systems.
- ElephMax machines have unyielding stability, micron-level precision, and continuous 24/7 heavy-cutting capability.
- Meet your various cutting needs: Fast, straight, and angled cutting with integrated saw spindles.
What Is the Stone CNC Router?
A Stone CNC Router is an automated, computer-controlled power tool designed for deep cutting, carving, drilling, routing, and edge profiling on hard stone materials, such as granite, marble, quartz, etc.
Unlike standard wood or soft-metal CNC machines, our industrial Stone CNC Router is specifically engineered to withstand extreme vibrations and heavy tool-load resistance. Our machines are equipped with high-power water-cooled spindles, heavy-duty linear guide rails, and integrated water recirculation systems. You can use them to replace traditional, dust-heavy manual hand tools with our automated CAD/CAM digital workflows.
Stone CNC Router Types

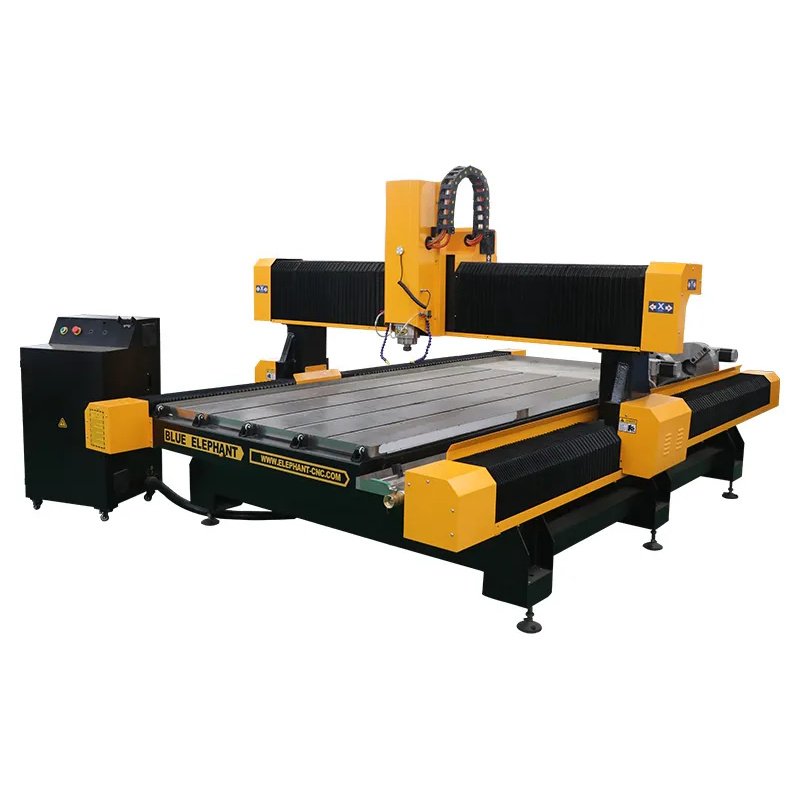

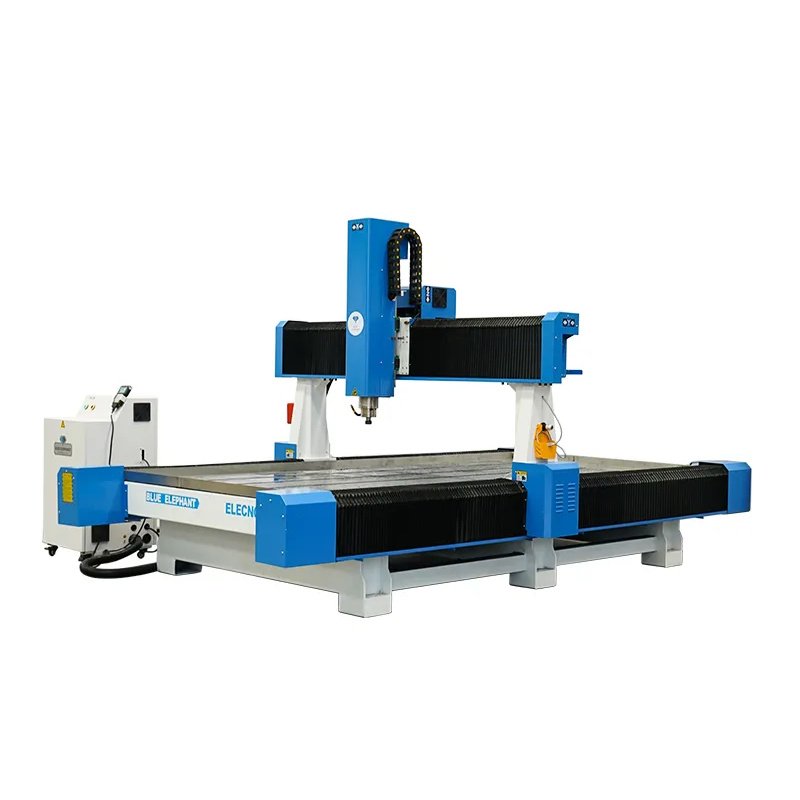

You can use this machine with its horizontal saw spindle to cut, engrave, and shape stone slabs. ElephMax adopts a DSP A11 control system to monitor the operation status.
It is equipped with a 6.0 kW water-cooling spindle and a 7.5 kW Fuling inverter. ElephMax uses a 300 mm diameter rotary device with double chucks for your needs.

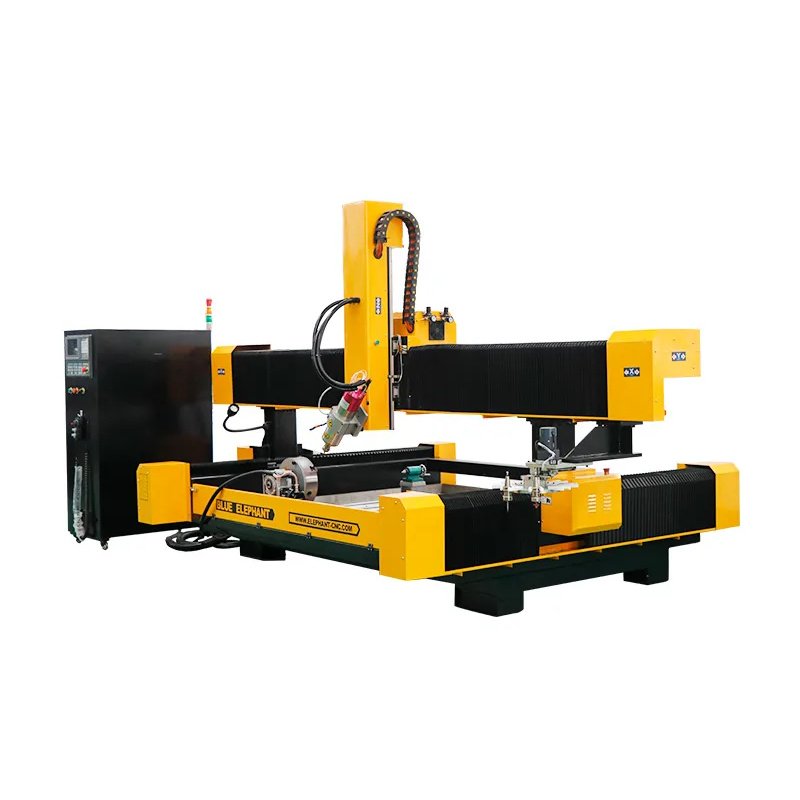

ElephMax adopts a carousel automatic tool changer and a rotary device. It is also equipped with a Changsheng ATC water cooling spindle with a speed of 18000 rpm per minute.
ElephMax designs a water-cooling spindle for high speed and high precision in stone cutting or carving. This machine is equipped with an SS water tank with a mist cooling sprayer.

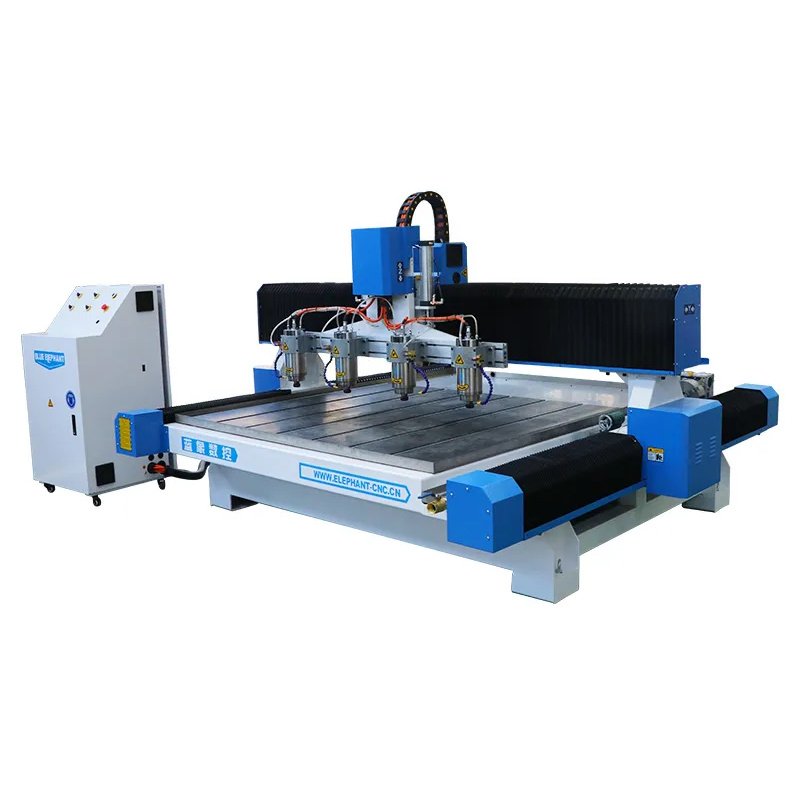

It has 4 spindles for processing at the same time. ElephMax equips it with a countertop with a sink, and its water spray function can reduce the wear on the spindle during processing.
ElephMax’s Stone CNC Router Features
Industrial-grade 5.5 kW-7.5 kW+ water-cooled spindle running up to 24,000 RPM, designed for high-hardness stone cutting without thermal degradation.
Premium HIWIN/PMI linear guide rails paired with helical gear racks and planetary reducers for high dynamic precision under heavy loads.
A linear or disc tool magazine allows seamless switching between roughing bits, fine engraving tools, and polishing wheels without operator intervention.
The enclosed protective guard design protects internal electronics and maintains a cleaner, safer workshop environment.

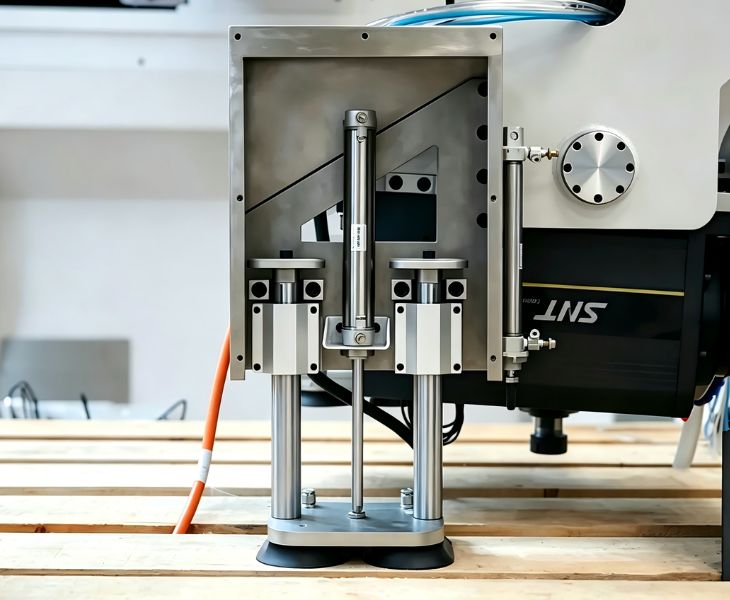

Complete Stone Material Compatibility
Our stone CNC router machines are built to process a complete spectrum of natural and engineered stones, such as granite, marble, sintered stone, quartzite, slate, sandstone, travertine, jade, terrazzo, etc. ElephMax’s equipment can meet your diverse needs.
Streamline Your Stone Fabrication
Our machines are equipped with flexible configurations such as automatic tool changing, rotating axes, or multi-spindle structures, enabling batch production and uninterrupted operation. This not only reduces your waste rate but also significantly increases your output per unit time.
Why Choose ElephMax As Your Stone CNC Router Partner?
- Decades of Manufacturing Expertise: ElephMax has many years of experience, nizhiqs dedicated exclusively to industrial stone and metal CNC processing machinery.
- Strict Quality Control Standards: Every machine undergoes over 20 factory inspection steps, including geometric accuracy verification and continuous granite cutting tests.
- Custom OEM/ODM Engineering: We can specialize in table sizes, spindle powers, z-axis heights, and multi-head configurations based on your requirements.
- Global Technical Support and Training: ElephMax provides comprehensive video instruction and remote diagnostic software support.
Applications of ElephMax Stone CNC Router
Our machine enables you to complete slotting, drilling, and contouring in a single operation. With its high-rigidity frame and water-cooled spindle, our stone CNC router ensures high-precision processing of both natural and engineered stone materials. You can use it to replace multiple manual tools and reduce your delivery cycle time.
You can use our equipment to automatically drill holes in the basin, shape the edges, and polish the surface. Our integrated water-cooling system prevents the cracking of heat-sensitive materials such as quartz. You can get a smooth and edge-free cutting surface and have less waste.
Our equipment is equipped with a large Z-axis travel range to accommodate your thick billets. The high-precision system ensures that the text strokes and curves on the monument are reproduced with micrometer accuracy. Your monument is durable, and the text is clear by our machine.

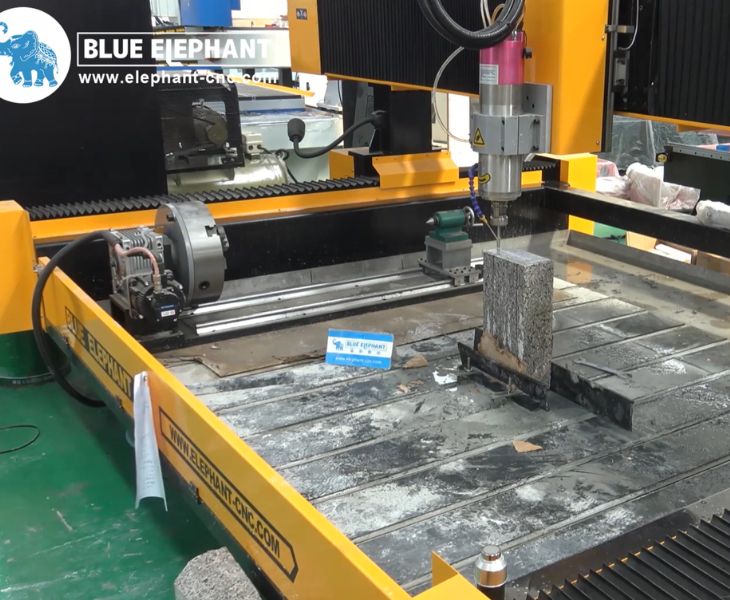

Our equipment can help you with the forming and processing of complex three-dimensional components such as columns, cornices, railings, and decorative facades. Our spiral rack and optional rotating axis enable your continuous four-axis engraving.
ElephMax’s equipment is compatible with mainstream design software in the market. You can use it for precisely reproducing the gradations of color and the surface textures. Our machines can meet your personalized needs of stone decoration and art creations.
More About Our Company
- Certifications
- Stone CNC Router Machine Video
- Specification
Our commitment to engineering excellence is based on international safety and quality compliance standards, including CE Certification, ISO9001 Quality Management System, and multiple utility patents for vibration resistance and water-protection design.
| Model | ELECNC-1228 | ELECNC-1325S | ELECNC-2113ATC-4A | ELECNC-1325S | ELECNC-1815-4S |
| X×Y Working Area | 1200×2800 mm | 1300×2500 mm | 2100×1300 mm | 1300×2500 mm | 1800×1500 mm |
| Z-Axis Travel | 400mm | 300mm | 600mm | 200mm | 200mm |
| Spindle | 5.5 kW water-cooled | 4.5 kW water-cooled | 5.5 kW ATC water-cooled | 3kW water-cooled | 3 kW water-cooled (×4) |
| Inverter | 7.5 kW Fuling | 5.5kW | 5.5kW | 3.7 kW Fuling | 3.7 kW Fuling |
| Control System | DSP A11 | Mach-3 (4-axis) | SYNTEC/LNC | Mach-3 | Mach-3 |
| Drive System | 850W Leadshine servo | FL118 stepper + YAKO2811 | 1 kW Yaskawa AC servo | Stepper motor | Stepper motor |
| Guide Rails | Taiwan #25 linear | Taiwan linear | Taiwan linear | Taiwan #20 linear | Taiwan #20 linear |
| Transmission | – | Helical gear rack (X/Y); TBI ball screw (Z) | Helical gear rack (X/Y); TBI ball screw (Z) | Helical gear rack (X/Y); TBI ball screw (Z) | Helical gear rack (X/Y); TBI ball screw (Z) |
| Tool Changer | – | – | Rotary ATC | – | – |
| Rotary Device | – | Optional | Yes (-90° to +90°) | Optional | – |
| Travel Speed | 25 m/min | 25 m/min | 40 m/min | 25 m/min | 25 m/min |
| Working Speed | 0-15 m/min | 0-15 m/min | 0-20 m/min | 0-20 m/min | 0-20 m/min |
| Repositioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.05mm | ±0.05mm |
| Working Accuracy | ±0.05mm | ±0.05mm | ±0.03mm | ±0.05mm | ±0.05mm |
| Voltage | 220V/380V | ||||
Testimonials
“As a complete beginner, I was amazed by how patiently ElephMax guided me through every step of machine setup and operation. The installation was quick, and the intuitive controls made learning a breeze. Now I’ve fully mastered the system. The machine runs stronger and moves with rock-solid stability, which has already boosted the quality of my furniture business. I am already planning to order another machine very soon!”
Furniture Manufacturer | Nicolas Tchakamian from France“Thanks to ElephMax for the swift installation and hands-on training – my machine is now running perfectly. I’m still getting familiar with all its features, but I already love the smooth performance and build quality. Choosing ElephMax was definitely the right decision for my business.”
Equipment Purchaser | Enrique from Spain“Now everything works great – tight joints, smooth cuts, and I’ve already finished multiple bathroom projects with excellent results. This machine delivers the precision and surface quality I need for my work, and it has never let me down. Highly recommended!”
Decoration Company | John from America“We’ve truly enjoyed our cooperation with ElephMax. Their engineers are knowledgeable and patient – they guided me through every step until I felt fully confident operating the machine. The after-sales support has been exceptional from day one.”
Project Manager | Gary from the USA
Yes. We provide a user-friendly interface (available in multiple languages) alongside step-by-step video tutorials and instruction manuals. It is a Mach3 control system. You can operate the Mach3 control system by laptop. Our Mach-3 system has been upgraded since 2020 with a memory function.
Yes, full OEM/ODM customization is available. You can customize the working bed size (e.g., 1325, 1530, 2030, 2040, or larger), Z-axis clearance height, spindle power (up to 9.0kW+), tool magazine capacity (linear or carousel ATC), rotary attachment diameter, and specific CNC control systems.
The bridge saw is designed for straight-line, fast, heavy slab cutting and 45-degree miter slicing. The stone CNC router is equipped with rotating diamond router bits. You can use stone CNC routers for complex processing such as cutout routing, edge profiling/polishing, 3D relief carving, lettering, and drilling.
Our control systems accept standard G-code files generated by industry-leading CAD/CAM software, including Alphacam, Artcam, Type3, Ucancam, Mastercam, Fusion 360, and SolidWorks. We provide fully configured post-processors to ensure seamless toolpath exporting.
- You need daily cleaning and consistent lubrication to prevent abrasive stone sludge and water from damaging components.
- And you need to thoroughly wash down the workbed and drainage channels to prevent sludge from hardening.
- You should inspect the spindle’s water-cooling nozzles to ensure uninterrupted flow.
All ElephMax Stone CNC Routers come equipped with a heavy-duty stainless steel water sink, a recirculating water pump system, and multi-directional cooling nozzles. Crucially, key drive components—such as the X/Y/Z guide rails, ball screws, and rack gears—are protected by IP65-rated stainless steel covers and flexible waterproof bellows to prevent stone slurry from causing abrasive wear.
We implement a multi-layer anti-corrosion protection process:
- High-grade anti-rust primer and heavy industrial powder coating on the main steel frame.
- Stainless steel water sinks, water collection basins, and hardware fasteners.
- Fully enclosed protective bellows and auto-lubrication oil pumps that constantly coat linear guide rails with protective grease.
Our standard lead time is around 15-30 working days depending on customization complexity. We offer a comprehensive warranty on all major components and lifetime technical support. Contact us for detailed warranty terms for your specific machine configuration.
