Manual Edge Banding Machine Manufacturer in China
- With intermittent feeding and cutting functions, our machines can realize flexible switching between feeding and cutting.
- Equipped with suction cups, the machine offers stable workpiece positioning and reliable load support during operation.
- Adopting an intuitive digital display operation panel, our products are easy to operate.
- Have no limitation on the panel length, so you can use it to band wooden panels of various length and widths.
- They are very cost-effective and the most affordable banding machines for small businesses.
- Equipped with an automatic and foot-pedal guillotine cut-off system for precise end-cutting without manual shearing.
What is the Manual Edge Banding Machine?
The manual edge banding machine does not have an automatic conveyor, nor does it have an automatic clamping mechanism for the panels. The process needs to be completed manually by pushing the panels. Our manual edge banding machines provide flexibility and precision. With a compact structure and streamlined design, it reduces maintenance complexity and costs, ensuring stable and reliable operation. And our machines can also enable you to handle irregular edge processing. Without relying on large-scale automated production lines, you can efficiently manage a wider variety of orders.
Types of Elephmax Manual Edge Banding Machines
Equipped with suction cups, it has a strong bearing capacity and stability, intuitive digital display operation panel for easy operation.
Feature a plate-type quick positioning design to achieve ultra-thin edge bands, with no limitation on the panel length.
Why Choose Our Manual Edge Banding Machines
The manual edge banding machine is smaller and lighter than fully automatic models, making it easier to move and helping reduce your shipping costs.
Our machines are suitable for budget-limited industries. Low initial investment can also reduce investment risks and shorten the return cycle.
No complex automation system also makes our manual edge banding machine easy to maintain, thereby ensuring your stable operation.
They allow manual control of the angle and are suitable for processing panels of different sizes and shapes, making them ideal for multi-variety and small-batch production.

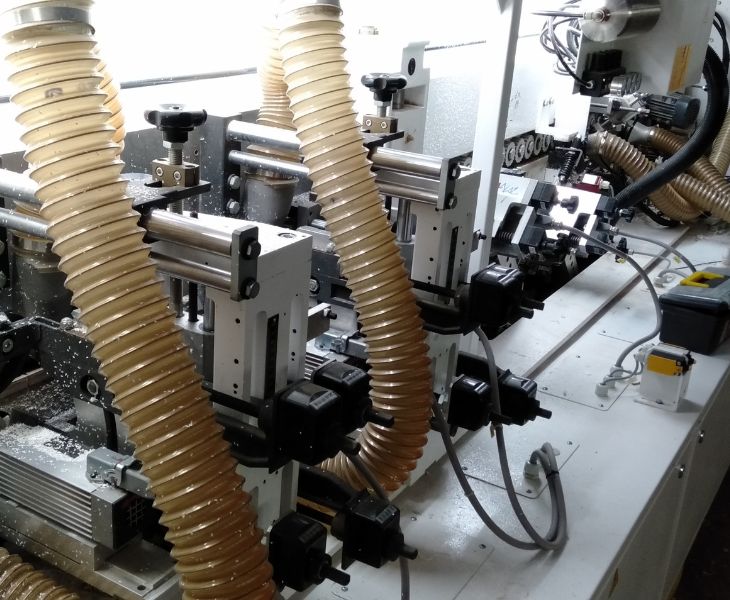

Adjustable Pressure and Speed for Good Banding Quality
Our manual edge banding machine allows operators to adjust the feeding speed and roller pressure according to different edge band thicknesses. If you use 3 mm wood edge banding, our manual edge banding machine helps prevent it from cracking. If you’re using thin PVC edge banding, the adjustable pressure helps prevent deformation. And the roller pressure can be easily adjusted, ensuring an even and smooth glue line without excessive glue overflow.

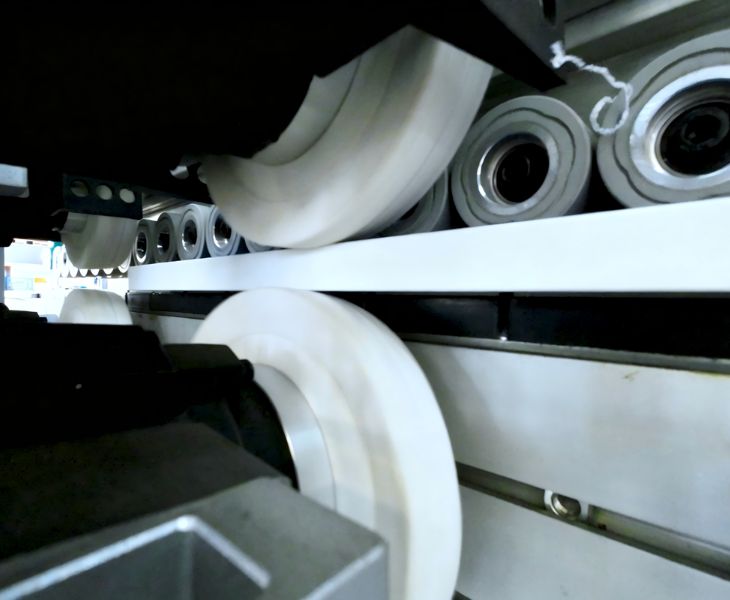

Precise Edge Banding for Narrow Panels and Strips
If you need to edge-band narrow strips or workpieces measuring 20–50 mm in width, automatic edge banding machines may have limitations due to restricted feeding support and positioning challenges. Our manual edge banding machines allow your operators to precisely control the workpiece position during processing, ensuring accurate edge alignment and consistent bonding on narrow edges while reducing visible gaps and bonding defects. Our F97 Special-Shaped Manual Edge Banding Machines provide an efficient solution for your narrow and irregular-shaped workpieces.
Why Choose Elephmax?

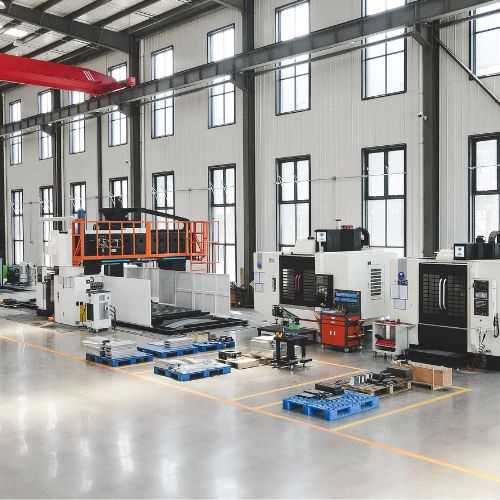

- Factory and Technical Team: 75,000 m² modern production base and a 500-person professional technical service team. 30+ locations worldwide to support installation and service.
- Rich Industry Experience: As a manufacturer of manual edge banding machines, we have 16 years of experience providing customized manual edge banding machines for sale to more than 9,000 domestic and overseas manufacturers.
- Customization and OEM Available: Adjustable power levels and software integration, color and appearance styles. OEM solutions with your logo for market distinction.
- Reliable After-sales Support: 12-month warranty, 60-day trial period, plus lifetime technical guidance and support.
Common Applications of Our Manual Edge Banding Machines
Our manual edge banding machines are widely used in the furniture industry and are highly suitable for small-batch production and edge banding of irregularly shaped panels.

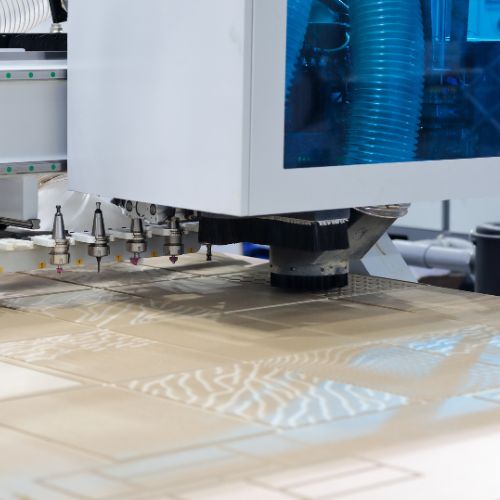

Cabinet sizes often change in production, but our manual edge banding machine can handle different sizes and shapes without limitation, making it easier for your workflow.
With a compact size, our manual edge banding machines work well for on-site custom furniture installation, and they can also be used for small adjustments during your project work.
More About Our Company
- Certification
- Manual Edge Banding Machines Video
- Specification1
- Specification2
Over 120 patents and authoritative certifications, including CE, ISO9001, BV, SGS, and TUV, meet internationally recognized standards.
Watch our machine perform to create smooth, seamless edges and improve the finish.
| Item | Specification / Description |
| Product name | W1 Folding Arm Manual Edge Banding Machines |
| Heating power | 1.2 kw |
| Motor Power | 0.18 kw |
| Total power | 1.4 kw |
| Edge Thickness | 0.3 – 3.0 mm (standard) |
| Edge banding materials | PVC, wood veneer, melamine, plastic and other materials |
| Panel thickness | 10 – 60 mm (customizable) |
| Edge banding width | 8-50 mm |
| Edge banding speed | 0-23m/min (adjustable, high-speed optional) |
| Working pressure | 0.3-0.6 MPa |
| Dimensions | 125 × 74 × 98 cm |
| Weight | 88kg |
| Gluing system | EVA / PUR system |
| Suitable materials | MDF, particle board, plywood, solid wood, composite panels |
| Item | Specification / Description |
| Product name | F97 Special-Shaped Manual Edge Banding Machine |
| Heating power | 1.0 kw |
| Motor Power | 0.18 kw |
| Total power | 1.2 kw |
| Edge Thickness | 0.3 – 3.0 mm (standard) |
| Edge banding materials | PVC, wood veneer, melamine, plastic and other materials |
| Panel thickness | 10 – 60 mm (customizable) |
| Edge banding width | 8-50 mm |
| Edge banding speed | 0-23m/min (adjustable, high-speed optional) |
| Working pressure | 0.3-0.6 MPa |
| Weight | 120kg |
| Dimensions | 100 × 75 × 100 cm |
| Gluing system | EVA / PUR system |
| Suitable materials | MDF, particle board, plywood, solid wood, composite panels |
Testimonials
Our project often needs changes in color and materials, so production flexibility is more important than large-scale production. The manual edge banding machine of Elephmax can quickly switch materials and is suitable for curved edge banding. I am extremely satisfied with this edge banding machine as it meets my requirements. The price is reasonable, and the equipment performance is excellent.
Saudi Arabia | Interior Decoration CompanyInterior decoration contractor, Ahmad Al-FarisiOur factory mainly produces tables, shelves, and wardrobes in small batches. We hope to improve product appearance at an affordable cost.
After using the Elephmax manual edge banding machine, we not only achieved cleaner edges but also increased daily output and kept investment under control. I am very satisfied with the improved efficiency.
Indonesia | Small Furniture FactoryFurniture Production Supervisor, Budi SantosoWe produce reception desks, wall cabinets and commercial interior decorations. As each project is different, various sizes of panels need to be processed, and a fully automatic production line is not required. The F97 Special-Shaped Manual Edge Banding Machines have no size limit and are very suitable for our factory. We are grateful to Elephmax for recommending this manual edge banding machine to us, and the effect is very good.
Australia | Custom Joinery WorkshopNathan Brooks, Production Manager
Although the manual edge banding machine has a simple structure and is easy to maintain, regular maintenance is still indispensable:
- Daily cleaning: removing dust and adhesive residue from the working part
- Weekly inspection: checking the condition of rollers, cutting tools, and heating elements
- Monthly checks: checking the glue pot temperature and machine settings are correct
Yes. We have a wide range of optional accessories to meet your upgrade needs, such as a heating lamp, an air compressor, a pre-melting device, upper glue pot, etc. It is mainly depends on your project requirements. In addition, the machine’s appearance can also be customized, including color and design style.
These features allow the machine to better adapt to your required materials, improve processing quality, and expand its application range.
The price of a manual edge banding machine depends on several factors:
- Machine configuration: The heating system, EVA or PUR glue pot system, and accessories like an air compressor can affect the cost.
- Customization requirements: Custom branding, special voltage, and other special requirements can make it cost more.
- Manufacturer reputation: Factory ability, quality control, and after-sales service also affect price.
- Purchase quantity: Buying in bulk usually gives a lower unit price and better overall cost.
First, you need to check the panel type you will process, including shape and size, and then choose a suitable manual edge banding machine.
You also need to think about different glues, such as standard EVA glue or stronger PUR glue. These two glues need different heating conditions, so you should select the configuration that best matches your production conditions. If the edge banding is used in wet environments with temperature changes, PUR is better because it is less likely to peel under temperature variations. EVA is better for dry environments.
In addition, edge banding materials usually include PVC and melamine. A good manual edge banding machine should work with different materials and should not need frequent or complex adjustments during use.
For standard panels with straight edges, skilled operators can produce about 75–95 meters per hour, with a daily output of 600–750 meters.
For sheets that include curves, irregular shapes, narrow strips, or repair and rework, operators can produce 40–60 meters per hour, with a total daily output of 320–480 meters.
Novice operators, on the other hand, can produce only 200–300 meters per day.
When operated by a skilled worker, the annual cost of EVA adhesive for a manual edge-banding machine is approximately 810–1,620 USD. The annual cost of PUR adhesive is approximately 1,460–2,430 USD.
With 1–2 days of training, operators can master basic procedures, such as turning on the machine, adjusting the temperature, and controlling the edge-banding speed.
In about three weeks, operators will be able to handle complex situations with proficiency, such as working with edge bands of different thicknesses, edge-banding irregularly shaped panels and narrow panels, and switching between PUR and EVA.
