Advantages of ElephMax CNC Bridge Saw
- Enables cutting at any angle and shape without repositioning the slab.
- The saw spindle can achieve precise inclination ranging from 0° to 45°, enabling inclined edges for the 45-degree countertop connection.
- Use high-power AC servo motors, linear rolling guide rails, and bevel gear transmission; the processing accuracy can reach ±0.1 mm.
- The high-speed rotating milling cutter can realize 3D relief carving.
Professional CNC Bridge Saw Supplier in China
The CNC bridge saw is a heavy-duty industrial stone-cutting machine automatically controlled by a computer numerical control (CNC) system. It can precisely cut stone slabs into kitchen countertops, floor tiles, wall panels, and custom decorative pieces.
With over 16 years of experience in manufacturing CNC stone bridge saws, ElephMax has helped multiple factories improve stone cutting efficiency, reduce production costs, and achieve consistent cut quality all over the world. Every ElephMax CNC bridge saw undergoes more than 160 quality inspection procedures to ensure it meets international standards before shipment.
To upgrade your stone cutting efficiency, contact ElephMax today for a customized CNC bridge saw solution!
ElephMax CNC Bridge Saw Types

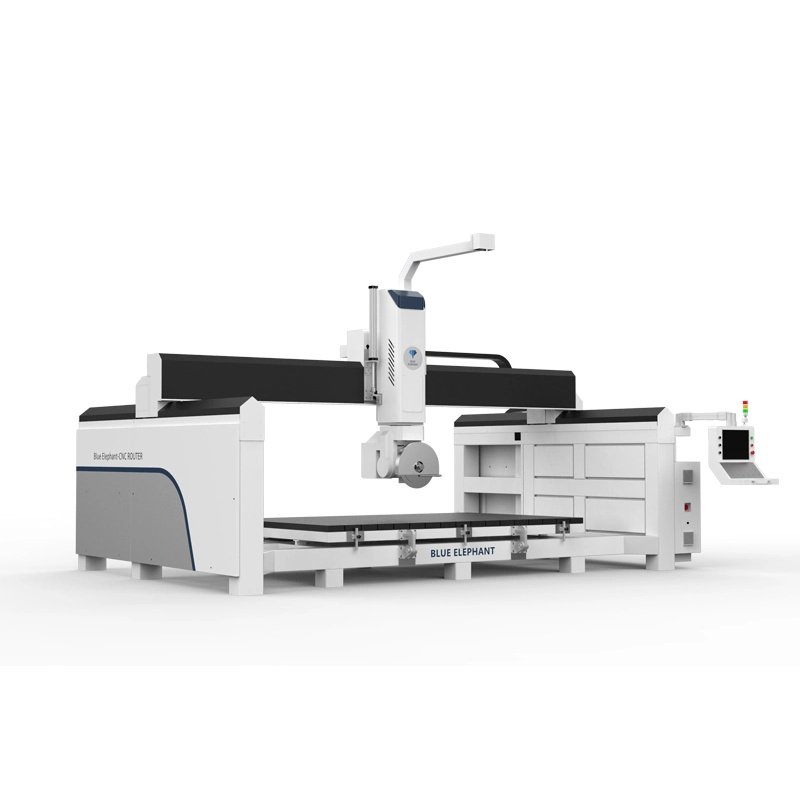

A 360° rotating head handles angled stone work from miter cuts to arcs and ovals, while the camera locates slabs and generates cutting paths automatically.
Photo-based slab positioning automatically maps the stone surface and generates the cutting path, reducing manual layout work before machining.

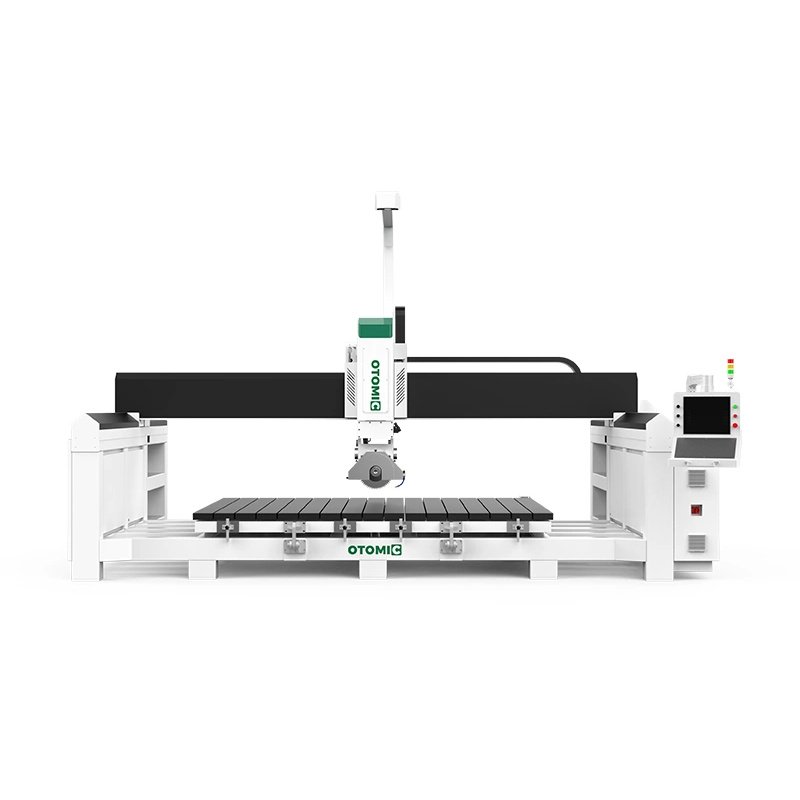

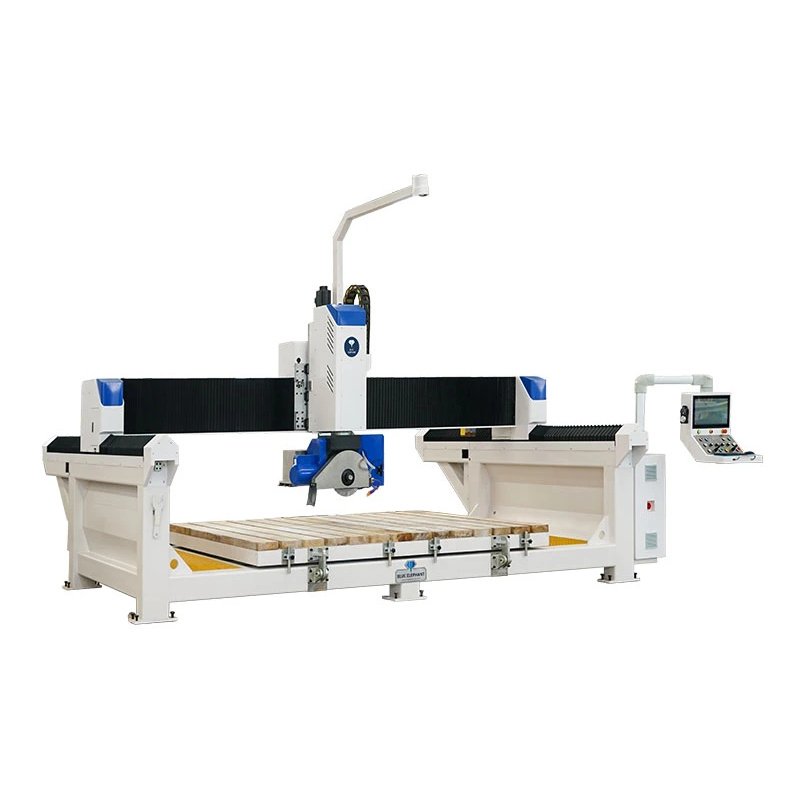

Italian ESA control and servo systems run the machine, paired with French Schneider low-voltage components and a 22kW permanent-magnet saw motor.

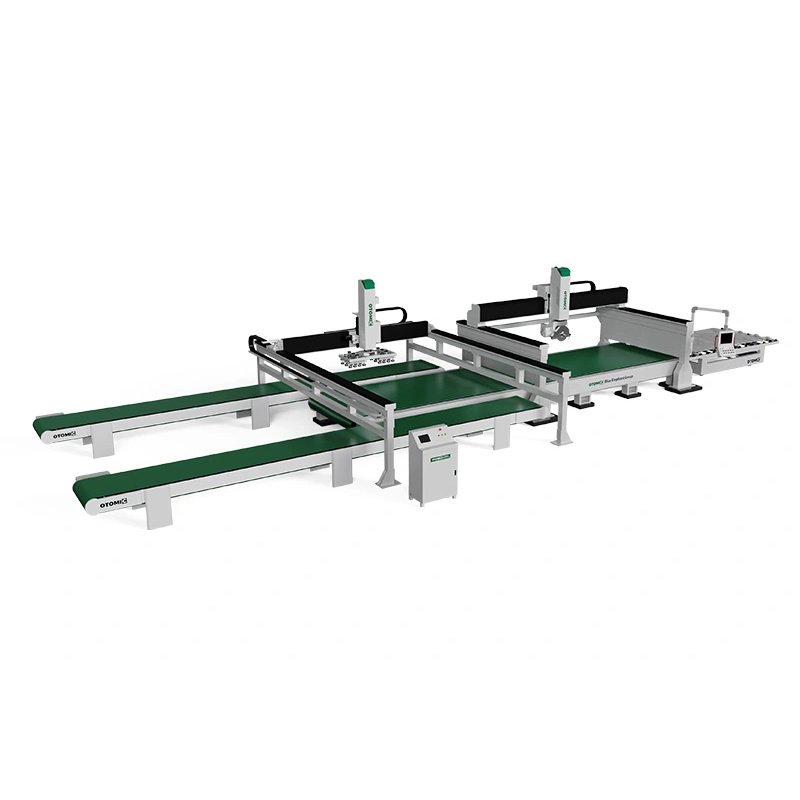

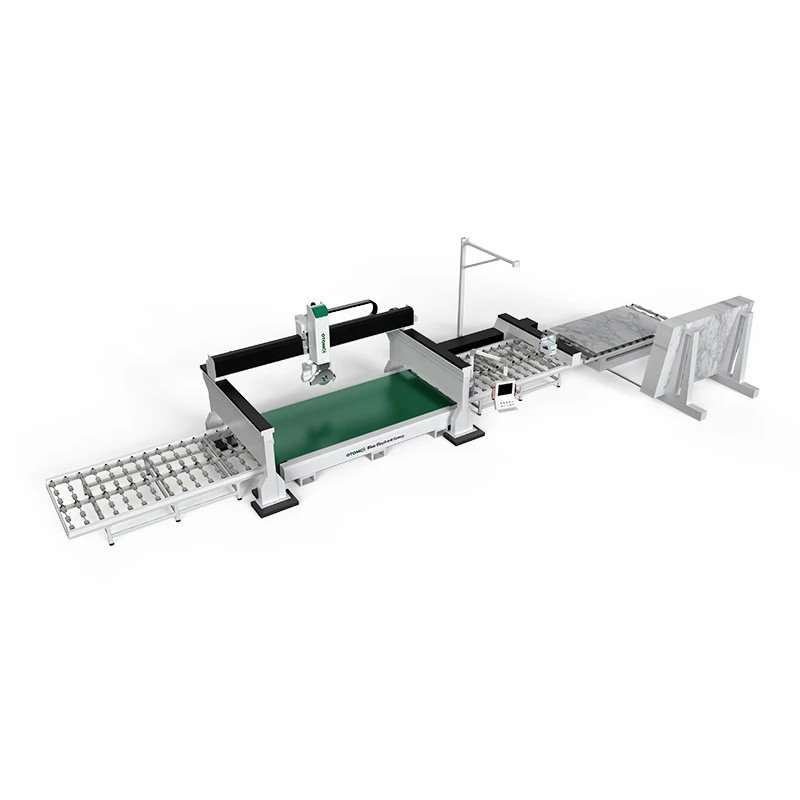

Automatic loading feeds slabs into the 5-axis bridge saw, while the system handles slab positioning, cutting and unloading in sequence for a continuous quartz stone production workflow.
Equipped with a high-speed milling spindle beside the main saw spindle. Can automatically switch to the milling cutter for water channel drilling or backplate engraving.

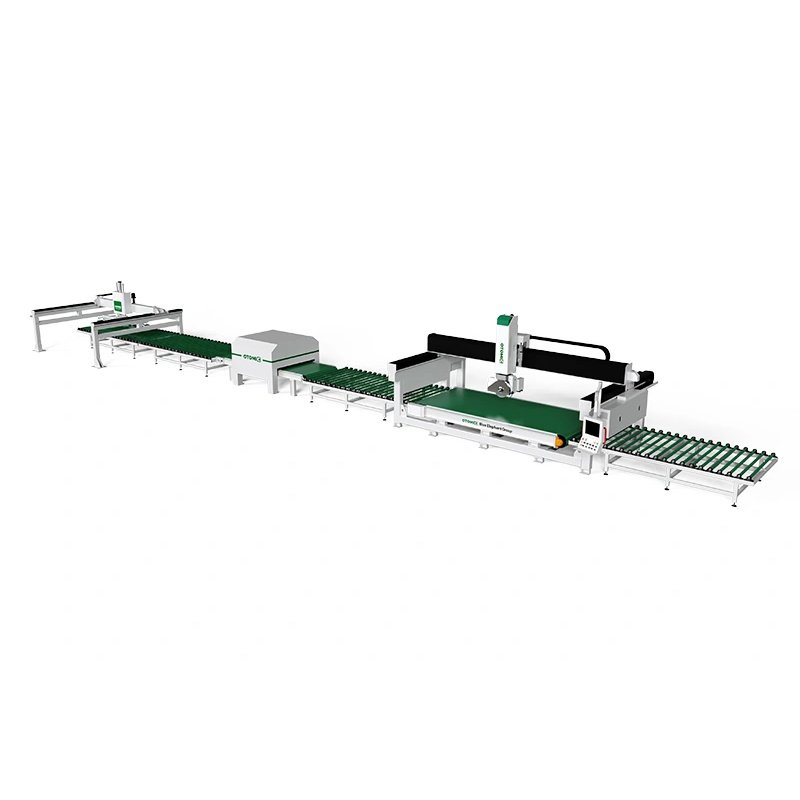

Cutting, chamfering, polishing, grooving, drilling and arc grinding are handled in one 5-axis line, covering granite, marble, jade and bluestone processing.
Camera scans the marble slab and creates layout plans for different cutting requirements, then one-click code generation sends the selected layout directly to the 5-axis bridge saw.
An 85° tilting table brings heavy stone slabs upright for loading and unloading, with a maximum handling weight of 800 kg.
ElephMax CNC Bridge Saw Features
Automatically identifies slab patterns, defects, and cutting paths to maximize material utilization.
The heavy-duty workbench can be lifted within the range of 0° to 85° using a hydraulic system, greatly facilitating slab transportation.
The cutting speed can be adjusted according to different material hardness. So the machine can process engineered stone, quartz, marble, granite, porcelain slabs, and sintered stone.
Automatically avoids natural cracks, flaws, and color differences of the stone with software, achieving texture alignment and maximizing the yield of the expensive stone materials.

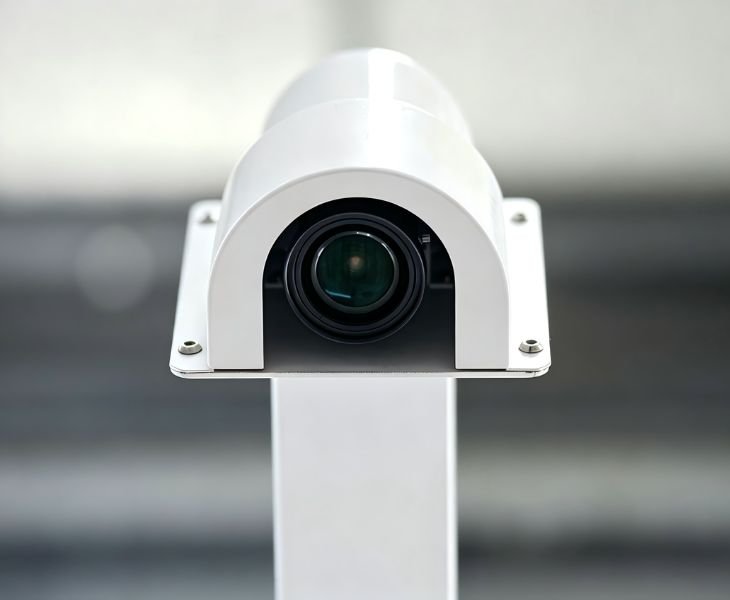

Automation and Intelligent Assistance System
Equipped with vacuum suction cups and automatic diameter measurement by the tool setter, ElephMax CNC bridge saws can greatly improve your production automation.
When the saw blade cuts through, it will damage the adjacent pieces. The vacuum pod will automatically lift the stone blocks as a whole and move them away, achieving fully automatic and collision-free cutting.
The mechanical gauge automatically measures tool diameter and tool length and compensates for the errors in the system to ensure that the cutting depth remains consistent.

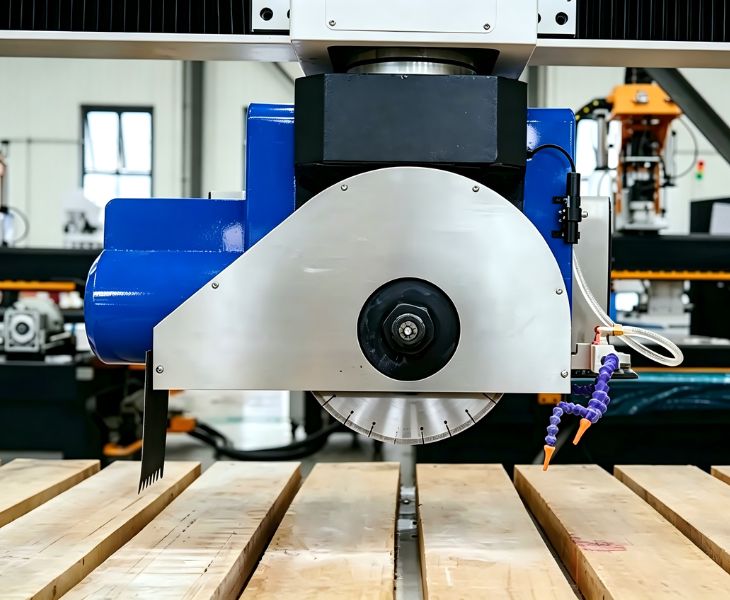

Built For Harsh Stone Processing
To ensure safety, ElephMax CNC bridge saw machines employ a hot-dip galvanized anti-corrosion process for long-term operation.
Besides, our CNC bridge saws are designed to have a sealed IP65 electrical enclosure, and protected linear guide bellows prevent dust and water spray. Equipped with an automatic water cooling system, the water flows directly onto the contact points of the saw blades, cooling the saw blade while suppressing the silica dust.
Why Choose ElephMax for Your CNC Bridge Saw Project?
ElephMax has now achieved 9,000+ successful cooperation cases worldwide. We get almost a 100% customer satisfaction rate and a 42.8% repeat purchase rate. This is because of our high-precision CNC bridge saw machines and complete after-sales support.
We provide free process analysis, professional workshop planning, immediate installation guidance, free software training, free equipment maintenance, future machine upgrade support, and a one-year warranty. We offer 24-hour multilingual technical support, both online and offline, whenever you need assistance.
If you want to find a one-stop solution for CNC bridge sawing, consider partnering with us!
ElephMax CNC Bridge Saw Applications

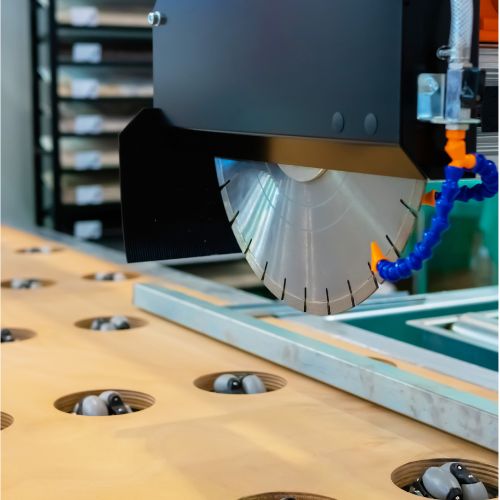

ElephMax CNC bridge saws are most widely used in machining L-shaped/U-shaped island countertops, water barrier strips, and various integrated basin countertops. Especially the 5 axis CNC bridge saw, it can automatically tilt for seamless mitered edge cuts and complex, irregular sink cutouts.

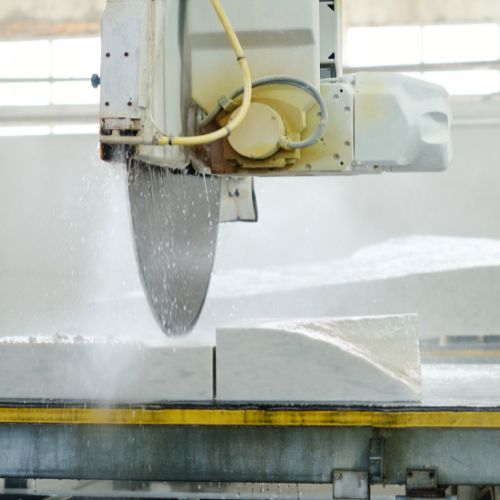

You can use ElephMax CNC bridge saws to deal with fine slicing of high-hardness, high-flexibility artificial rock panels and large-sized ceramic thin plates. With CAM software, our CNC system can operate with stress-relieving cutting paths for slabs. The VFD spindle can help you achieve a surgical-grade cutting surface without any chipping or cracks.

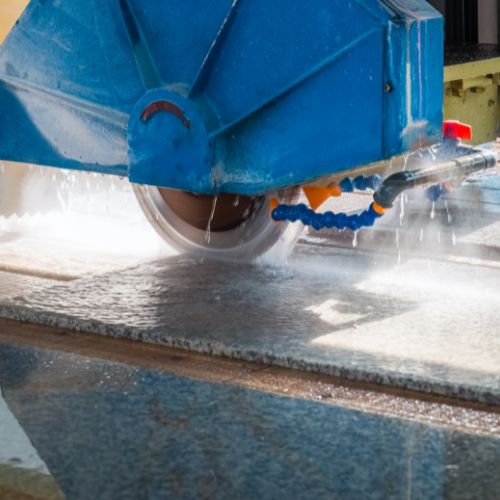

ElephMax CNC bridge saws can be used for the exterior wall marble dry-hanging panels of large commercial office buildings and high-end hotels. They automatically back-cut and slot, ensuring batch consistency.
You can apply ElephMax CNC bridge saws in processing V-shaped symmetrical marble background walls, Roman column main slabs, rotating staircase treads, and window and door frame lines for luxury villas and mansions. Using integrated digital pattern-matching software, operators can view slab grain and texture on-screen to align veins across seams before cutting.
ElephMax CNC bridge saws can also be used for customized processing of tombstones, monuments, and stone fountains’ and fireplaces’ decorative elements. They minimize the need for secondary manual edge finishing, significantly reducing downstream labor costs.
More About Our Company
- Certifications
- CNC Bridge Saw Machine Video
- Specification
Our certified production process and advanced testing equipment ensure that each CNC bridge saw for sale can provide reliable efficiency for various stone processing applications.
| X-Axis Travel | 3,200 ~ 3,500 mm |
| Y-Axis Travel | 2,000 ~ 2,300 mm |
| Z-Axis Travel | 300 ~ 500 mm |
| A-Axis Tilting | 0° ~ 90° |
| C-Axis Rotation | 0° ~ 360° |
| Max. Cutting Speed (X/Y) | 0 ~ 20,000 mm/min (Rapid Traverse Speed) |
| Saw Blade Motor | 15.0 ~ 18.5 kW / HP (20 ~ 25 HP) |
| Main Blade Speed Range | 800 ~ 2,800 RPM |
| Auxiliary Router Spindle Speed | 3,000 ~ 10,000 RPM |
| Saw Blade Diameter | Ø350 ~ Ø500 mm (Max Ø600/700) |
| Max. Cutting Thickness | 80 ~ 130 mm (Vertical Cut) |
| Auxiliary Spindle | 5.5 ~ 7.0 kW (Optional) |
| Worktable Dimensions | 3,200 × 2,000 mm |
| Worktable Tilting Angle | 0° ~ 85° |
| Vacuum Shifting Lift Capacity | 300 ~ 500 kg (Optional) |
| Onboard Industrial Camera | Included (Standard on 5-Axis) |
| CNC Control System | Syntec / ESA / ESA (Italy) |
| Drive & Transmission | AC Servo Motor + Linear Guide Rails |
| Positioning Accuracy | ±0.1 mm |
| Repeatability Precision | ±0.03 mm |
| Supported File Formats | DXF, DWG, G-Code |
| Power Supply | 380V, 50Hz, 3-Phase (Customizable) |
| Total Installed Power | 22 ~ 30 kW |
| Air Consumption | 6 ~ 8 bar (approx. 100 PSI) |
| Water Consumption | 3.5 ~ 4.0 m³/h |
| Machine Dimensions (L×W×H) | Approx. 5,600 × 3,300 × 2,600 mm |
| Gross Weight | 3,500 ~ 5,500 kg |
How to Maintain a CNC Bridge Saw?
CNC bridge saws need to be constantly exposed to high humidity, strong water flow, extremely abrasive stone slurry, and silica dust. Therefore, proper maintenance is important for its equipment life.
We recommend that everyday maintenance include slurry cleaning, linear guide wipe, and visual check.
Weekly maintenance includes lubrication, coolant tank and filters, and bellow inspection.
Monthly maintenance includes a backlash test, electrical cabinet care, and vacuum system check.
Quarterly and annual maintenance includes alignment and squaring, spindle bearing checks, and fluid replacement.
If you are not sure how to do it, ElephMax can provide free equipment maintenance.
ElephMax CNC Bridge Saw Selection Guide
| Machine Type | Key Advantages | Best For |
| 3 Axis CNC Bridge Saw | Cost-effective solution for straight cutting, simple miters, and daily slab processing. Ideal for businesses seeking reliable performance with a lower investment. | Entry-level stone fabrication workshops |
| 4 Axis CNC Bridge Saw | Supports automatic blade rotation for angled cutting, improving productivity and cutting accuracy for countertop fabrication. | Kitchen countertop manufacturers |
| 5 Axis CNC Bridge Saw | Handles complex shapes, bevels, arcs, sink cutouts, and multi-angle machining with maximum flexibility and precision. | High-end custom stone processing |
| Standard CNC Bridge Saw | Designed for routine slab cutting with stable performance, simple operation, and excellent cost efficiency. | General stone processing factories |
| Saw & Mill Combo CNC Bridge Saw | Combines sawing and milling in one machine, reducing secondary operations and improving overall production efficiency. | Fabricators requiring complete machining |
| Robotic SawJet CNC Bridge Saw | Integrates robotic handling with saw and waterjet technologies for fully automated, highly flexible, and precision manufacturing. Ideal for Industry 4.0 stone fabrication. | Intelligent automated production lines |
Yes, the CNC bridge saw is perfect for cutting and processing granite. Granite has high density, hardness, and high abrasiveness. ElephMax modern CNC bridge saw can deal with demanding characteristics with high precision. If you want to smoothly process granite, the CNC bridge saw you choose needs to satisfy some requirements (spindle motor power, VFD spindle, frame, etc.). You can consult our professional engineers to get more details if you have such requirements.
If your workshop handles low-volume orders consisting primarily of straight-line cuts, choosing a used granite bridge saw can help you save a significant amount of initial capital.
If you want to undertake high-end granite slab customization, villa and mansion projects, or 45-degree seamless connections, or if you lack skilled workers, investing in a new 5-axis CNC bridge saw is a better choice.
Yes, we can provide CNC bridge saw customization services according to your production line. And it can serve as an automated intelligent processing unit, integrating into your entire production line.
If you require such customization services, just contact our professional engineers.
The thickness of stone that a CNC bridge saw can process mainly depends on the diameter of the diamond disc blade and the vertical lifting stroke of the Z-axis.
Generally, the maximum processing thickness of a standard CNC bridge saw is 80 mm ~ 100 mm, of a heavy-duty CNC bridge saw is 130 mm ~ 290 mm, and of an extra-heavy CNC bridge saw is 350 mm ~ 500 mm or more.
Yes, ElephMax CNC bridge saws can process ultra-thin sintered stone without chipping because they can intelligently control the feed rate, perform stepwise incremental line cutting, and have vibration control and high-volume water cooling.
