Advantages of ElephMax CNC Nesting Machine
- Assemble irregular, large, and small parts on the entire sheet, minimizing material waste.
- Adjacent parts can share the same cutting line, saving materials and reducing the machine’s tool path.
- Equipped with a dedicated 5+4 vertical boring unit, eliminating the need to frequently change the main spindle tool.
- Equipped with High-Flow Matrix Vacuum Table with Matrix Zoning. Automatically secures raw material sheets onto the processing table.
Professional CNC Nesting Machine Supplier in China
The CNC nesting machine is a highly automated CNC woodworking device controlled by a computer and equipped with professional nesting optimization software. It arranges various board parts of different sizes on the entire sheet in the most compact way, maximizing material utilization.
ElephMax specializes in manufacturing CNC nesting machines and complete panel furniture production line solutions. Our nesting CNC router machines are manufactured strictly in accordance with CE and ISO quality standards and have gained the trust of customers in over 180 countries worldwide. We offer a comprehensive product range, with working dimensions ranging from 1300×2500 millimeters to 2100×3000 millimeters.
Whether you’re upgrading an existing workshop or building a new smart furniture factory, contact us today to receive a tailored nesting machine CNC solution!
ElephMax CNC Nesting Machine Types

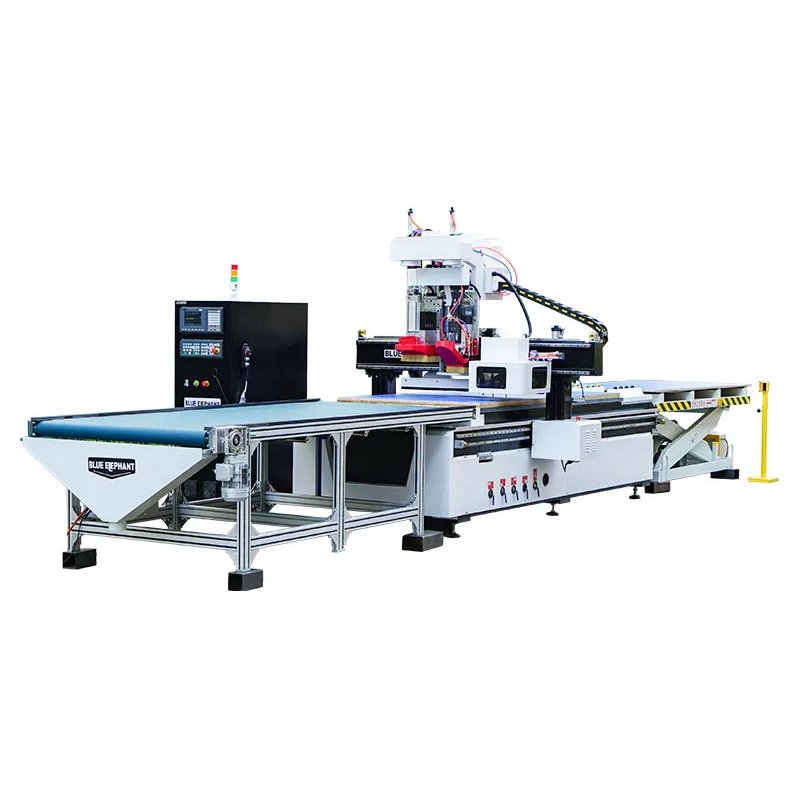

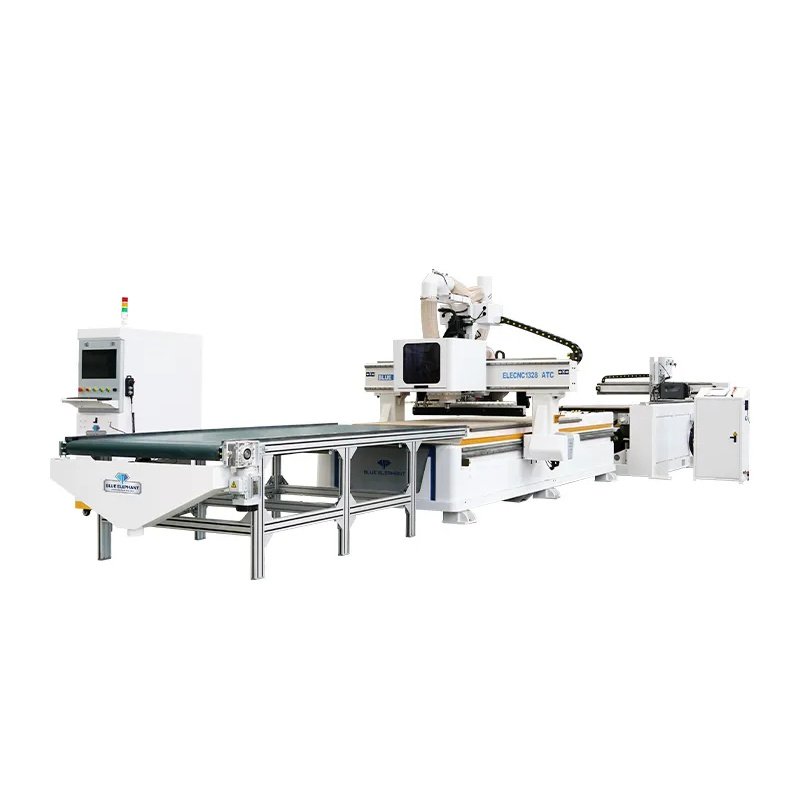

ATC nesting machine with 12-tool linear changer, auto loading/unloading, labeling function, 9.5kW air-cooling spindle, and 7-zone vacuum table.

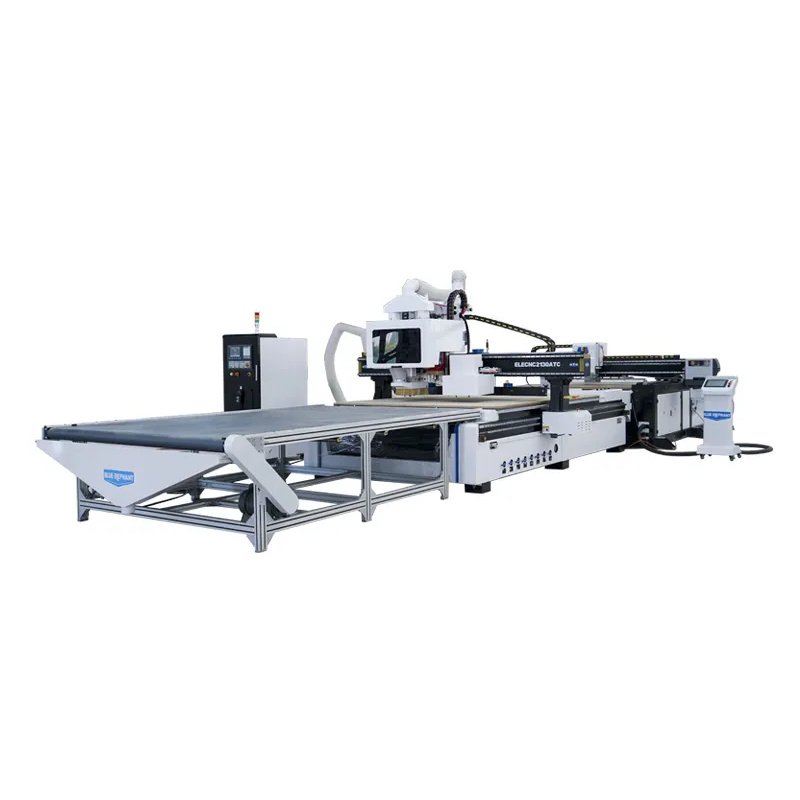

Large-format 2100×3000mm nesting center with HSD 9.6kW spindle, 12-tool carousel ATC, auto loading/unloading, labeling, and drill bank for cabinet production.

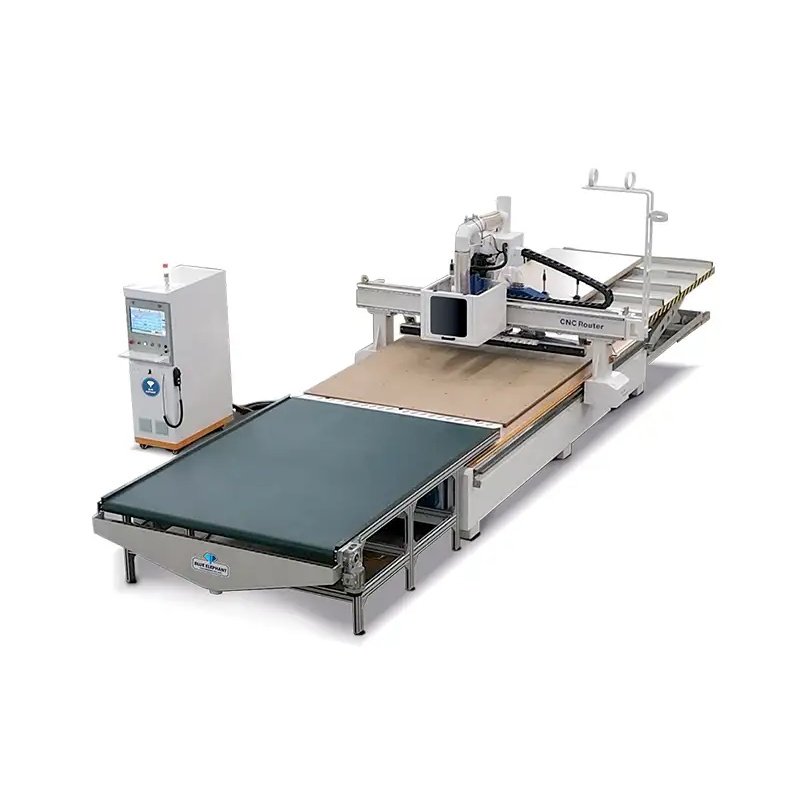

Heavy-duty 2070×2800mm nesting center with 9kW HQD spindle, under-gantry linear ATC, 8-zone vacuum table, dual Becker pumps, and full auto loading/unloading.
Extra-long 2070×4100mm nesting center with dual saws for chip-free edges, Hiteco 9.5kW spindle, linear ATC, 16-zone vacuum table, and labeling function.

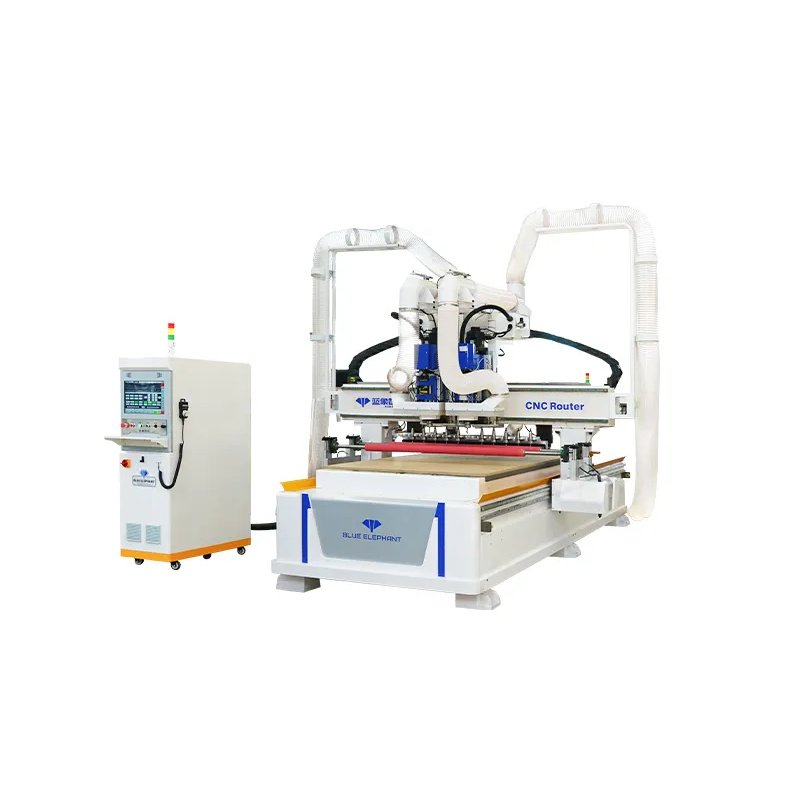

Double-head nesting center with two 9kW JST ATC spindles (12 tools total), dual-channel Delta control, anti-collision safety, and 20-40% faster processing.

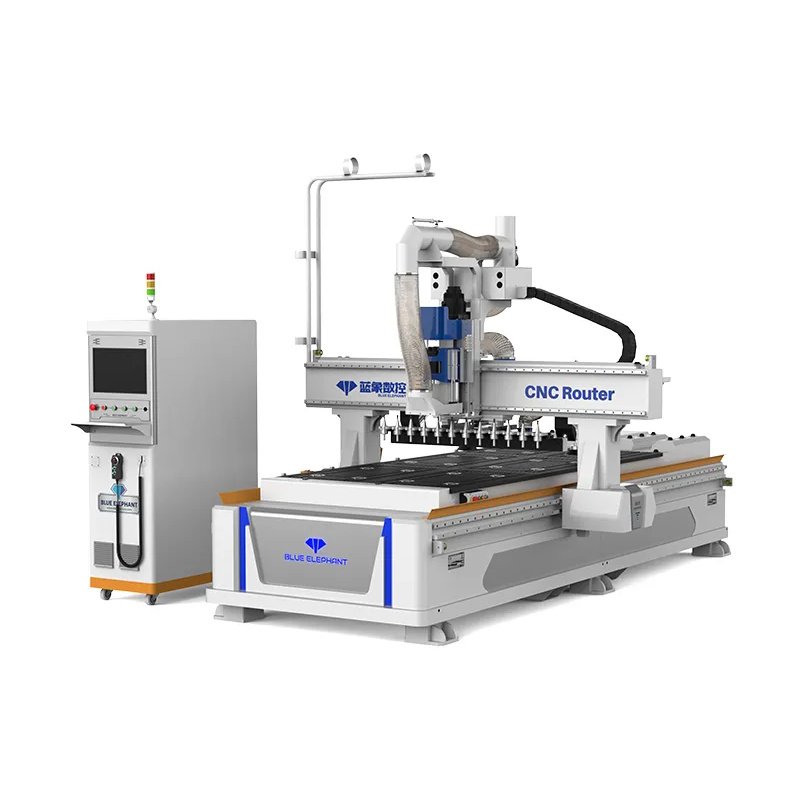

Single-spindle nesting center with 12-tool linear ATC, 9kW JST spindle, 7-zone vacuum table, SYNTEC control, and auxiliary push for easy unloading.

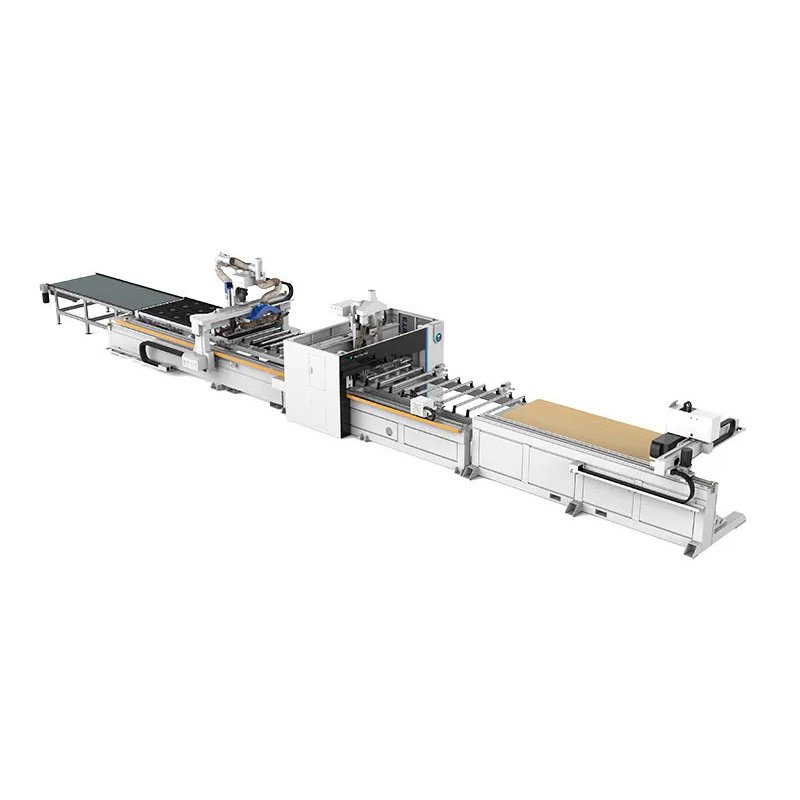

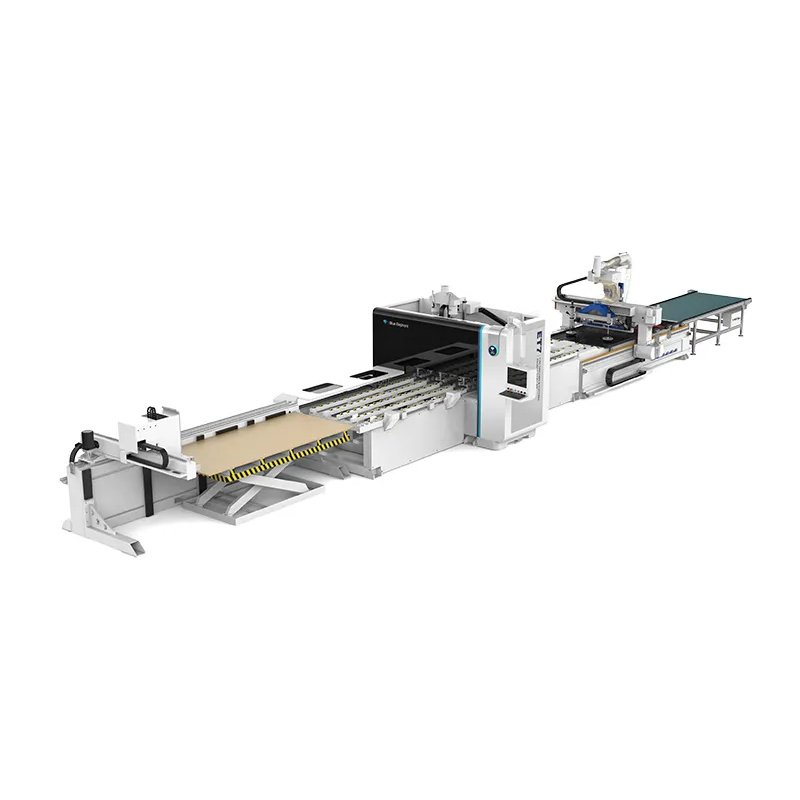

Labeling, drilling, and cutting production line with upper/lower double drills, 40kW power, customized control system, and seamless edge bander integration.

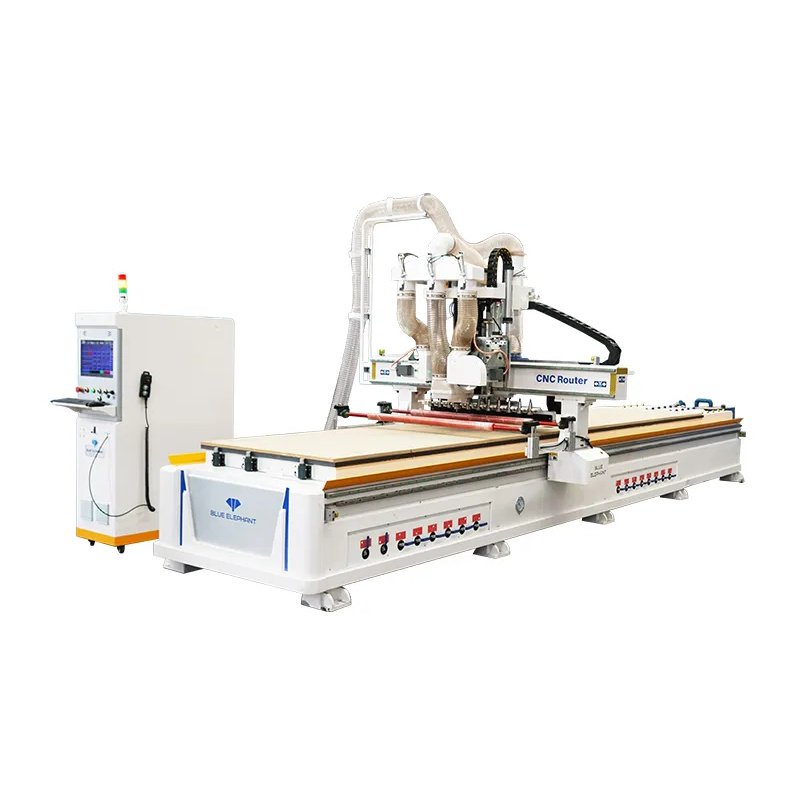

Dual-purpose cutting machine for wood and aluminum honeycomb panels with double-station table, 12-tool ATC, dual 5.5kW saw spindles, and 6m travel.
Intelligent labeling, drilling, cutting, and edge-banding production line with 9kW ATC spindle, double 3.5kW drills, 7.5t weight, and one-position clamping.
ATC nesting router with 9kW ES951 spindle, HSD 9+3+1 vertical drill bank, 8-second disc tool change, auto loading, and labeling for cabinet/wardrobe production.

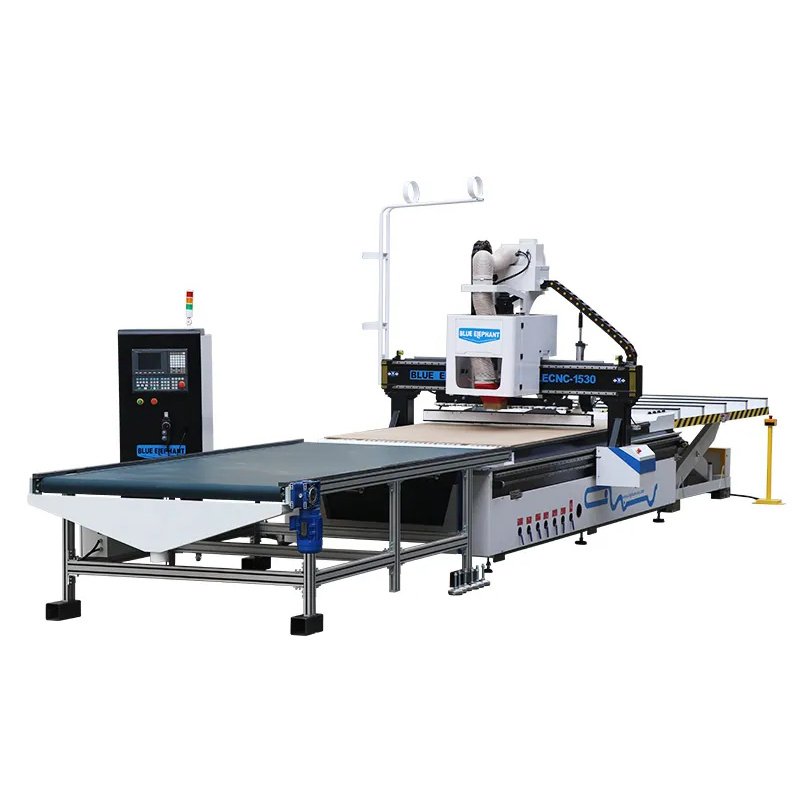

5×10-foot nesting router with auto loading/unloading, linear ATC, HSD spindle, Yaskawa servos, Syntec control, and aluminum T-slot table for furniture production lines.

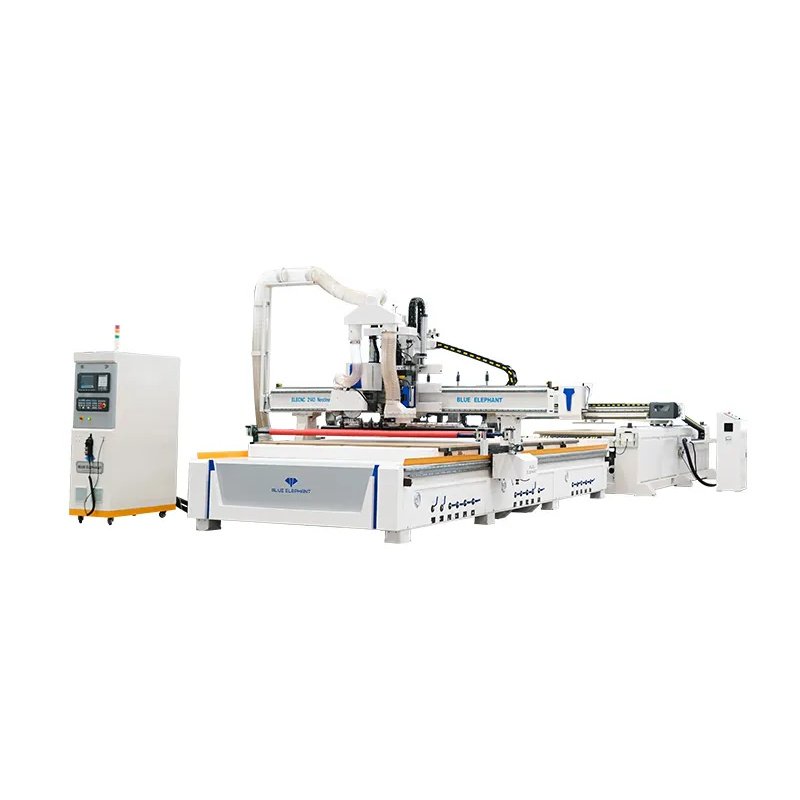

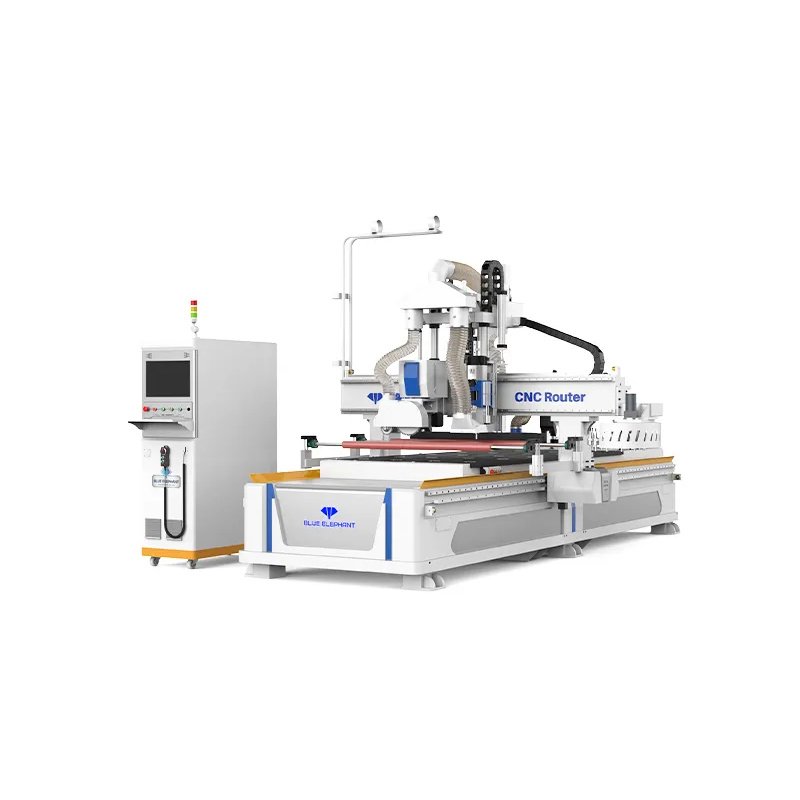

Nesting router with dual saws (small for 3-5mm, big for 55mm panels), HQD 9kW spindle, 12-tool linear ATC, boring head, and auto loading/unloading.

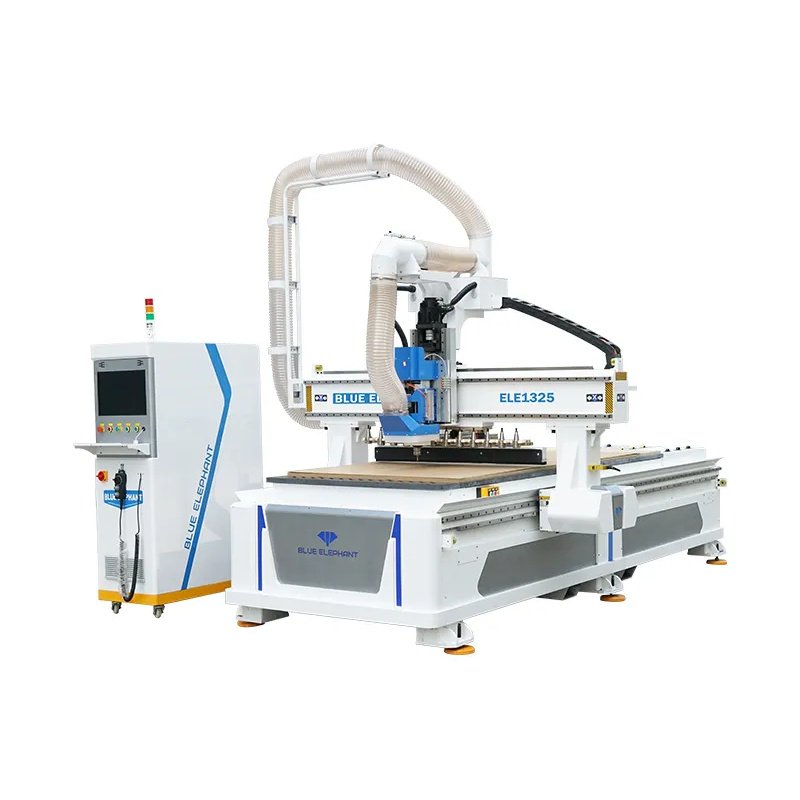

4×8ft nesting router with 12-tool linear ATC, Yaskawa 1kW servo+Shimpo reducer, aluminum T-slot & vacuum table, and 80m/min rapid traverse.

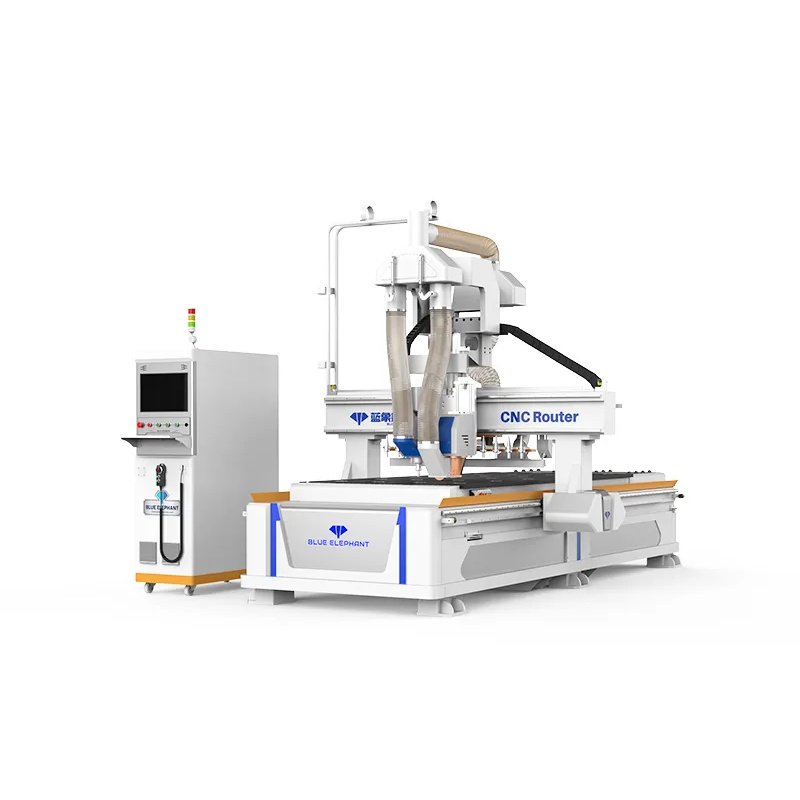

Nesting router with 9kW ATC spindle + Lamella cutting saw, 12-tool linear ATC, LNC MW2200 control, Omron limits, and 80m/min rapid traverse.

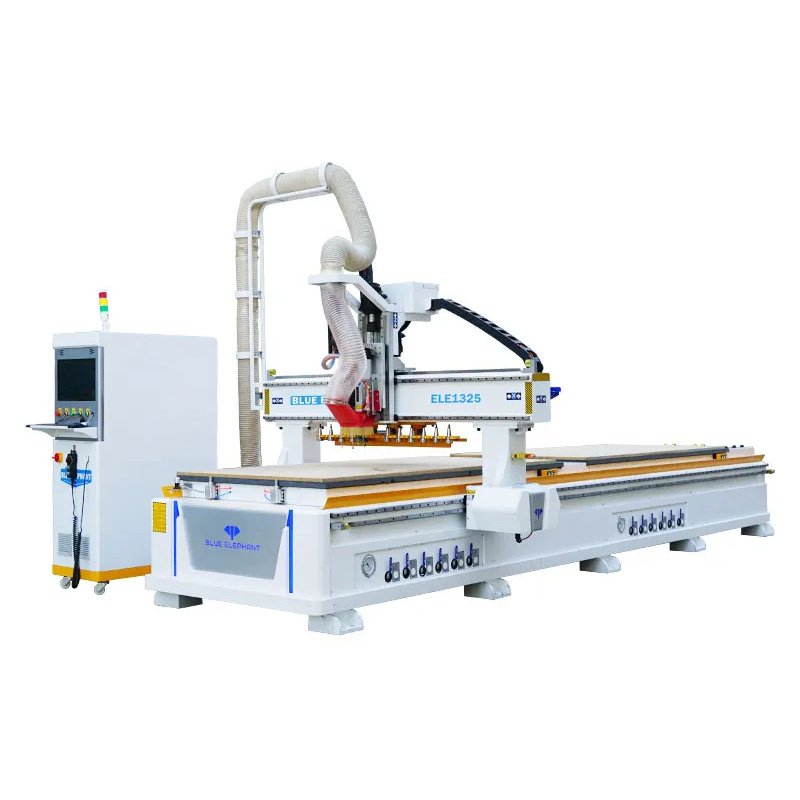

Double-station nesting router with two independent vacuum tables for zero idle-time loading/unloading, 12-tool linear ATC, LNC 2200 control, and 30-40% capacity boost.

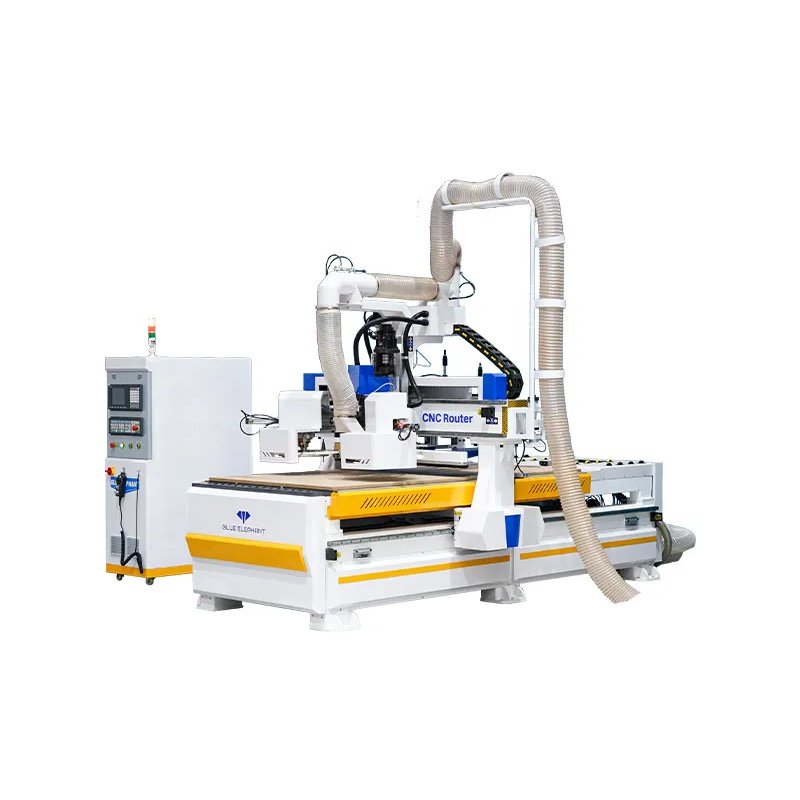

High-precision nesting router with 32-tool dual carousel ATC, TBI C5 grinding-grade ball screws on all axes, Yaskawa servos, and 6-zone vacuum table.
ElephMax CNC Nesting Machine Features
Adopt full steel heavy-duty gantry and bed bodies that have undergone overall quenching heat treatment, ensuring that the structure remains permanently undistorted.
Use high-power brand servo motors. With high-precision bevel gear reducers, guaranteeing that the X/Y/Z axes always maintain high positioning accuracy.
Equipped with photoelectric sensors or anti-collision blocks on the processing area edges and gantry, which can apply emergency braking to ensure human-machine safety.
Has a large-diameter central trailing dust collection hood that can remove 90% dust in real time, keeping the workshop clean and protecting the guide rails.

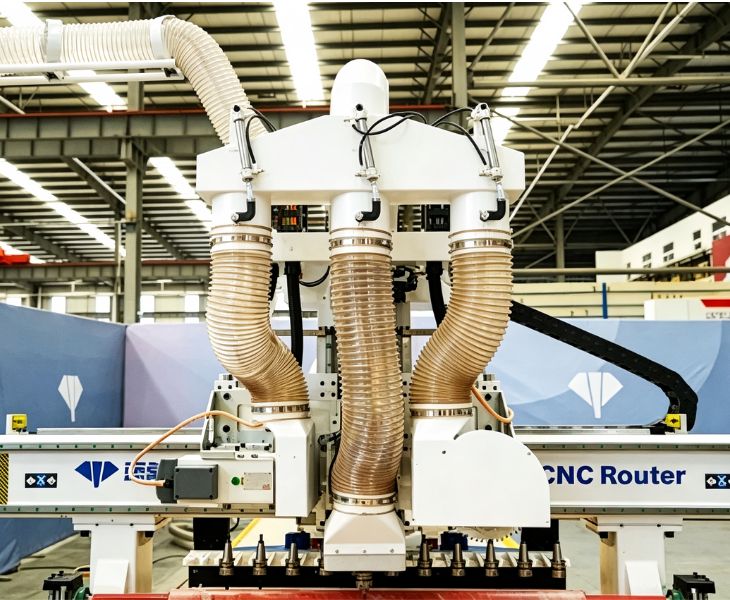

High-level Automation and Assembly Line Operations
To improve your working efficiency and convenience, ElephMax CNC nesting machines employ multiple automation systems.
Before cutting the material, the integrated barcode printing system automatically applies tracking labels to each nested part. Equipped with vacuum suction cups, our CNC nesting machines can automatically suck the raw material plates onto the processing table. Besides, the automatic tool length measuring instrument can calibrate the Z-axis height, and the built-in central automatic lubrication system can inject oil into the guide rail, extending the machine’s lifespan.

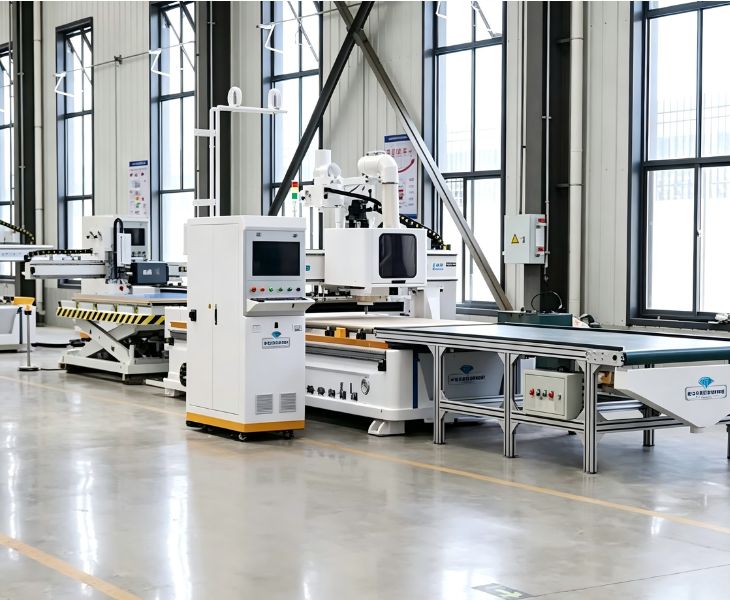

Advanced Vacuum Suction Matrix Bed
To ensure a high-strength gripping force, we apply advanced vacuum beds when designing the CNC Nesting Machine.
ElephMax CNC nesting machines mostly have 4/6/8 or more independent vacuum suction areas. Combined with a high-power vacuum pump, such as a water-cooled or dry-type vacuum pump, they can generate extremely strong negative pressure attraction. Even the smallest and lightest sheet parts remaining after cutting can be firmly fixed without any displacement. Therefore, this ensures the cutting accuracy.
Why Choose ElephMax for Your CNC Nesting Machine?
With over 16 years of experience in woodworking CNC technology, ElephMax has helped over 9,000 furniture manufacturers around the world enhance their production efficiency through intelligent CNC layout solutions.

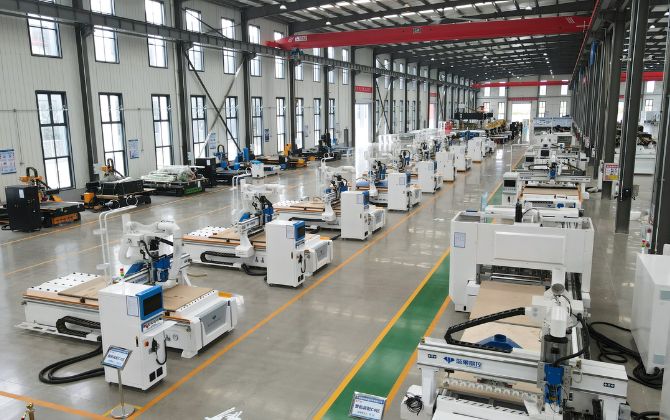

We have a 75,000-square-meter manufacturing plant, advanced production lines, and an experienced engineering team, which enables us to provide CNC nesting machines that meet the highest performance and durability standards.
Each CNC nesting machine undergoes 160 strict quality inspection procedures before shipment and has 120 patents and international certifications, ensuring stable accuracy, reliable operation, and long service life.
Whether you need an independent CNC nesting machine for sale or a complete panel furniture production line, we can provide customized solutions！
ElephMax CNC Nesting Machine Applications
The core application of ElephMax CNC nesting wood machines is to manufacture panel furniture, including making Cabinetry, Office Furniture, Retail Furniture, Modular Closets, Suite Furniture, etc. With the help of our CNC nesting machines, your working efficiency can be highly improved.

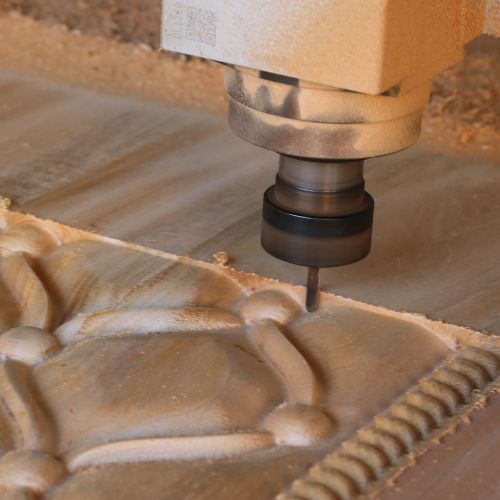

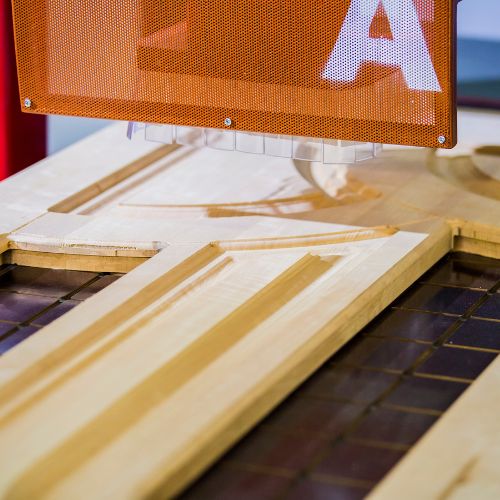

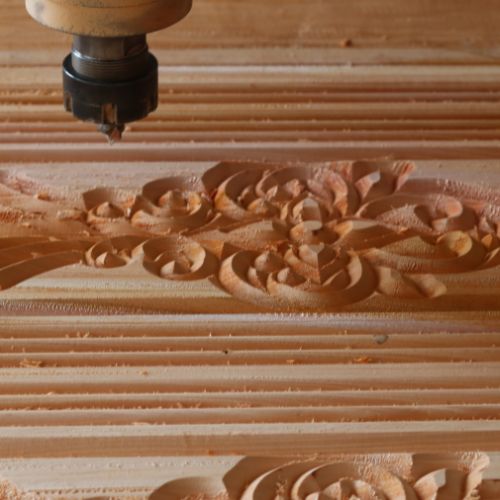

ElephMax CNC nesting machines are effective for the precise cutting of wood processing. For example, they can be used for dealing with decorative patterns on the surface of wooden doors, grooving, opening lock holes, and precise cutting of the edges of the door panels.
You can apply ElephMax nested-based CNC machining for cutting and engraving complex hollow screens, wooden sound-absorbing panels, wall panels, and textured 3D wall panels. Besides, those CNC nesting machines can quickly cut the panels into assembly pieces for the exhibition booths, making it easy to assemble and disassemble them on-site.

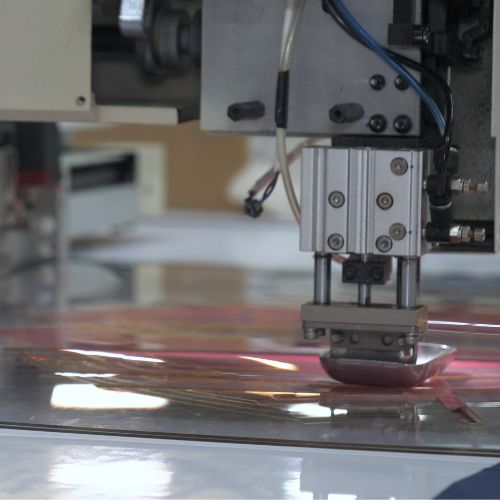

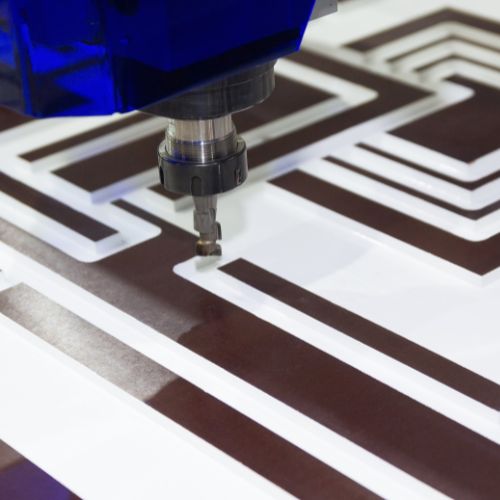

ElephMax CNC nesting machines have a significant advantage in large-scale advertising production. You can use them to cut acrylic, PVC foam board, and double-color boards and quickly cut high-density KT boards or corrugated cardboard for mall exhibitions and flash display events.
With appropriate tools and cold spray systems, ElephMax modern CNC nesting machines can even deal with materials beyond wood, such as engineering plastics, insulating materials, soft Metals, aluminum composite panels, automotive & marine interiors, etc.
More About Our Company
- Certifications
- CNC Nesting Machine Video
- Specification
Quality is the core of everything we manufacture. ElephMax CNC cutting machines comply with internationally recognized certification standards and undergo five-axis CNC milling and thermal stress-relief annealing (quenching) to eliminate internal steel tension, guaranteeing lifetime geometric structural alignment.
| Working Range | 1,300 x 2,500 mm (4’ x 8’); 1,500 x 3,000 mm (5’ x 10’); 2,100 x 3,000 mm (7’ x 10’); |
| Speed & Drive | 60-80 m/min max speed, Helical Rack & Pinion, Servo Motors |
| Spindle | 9.0 kW – 12.0 kW Electrospindle, 1,000-24,000 rpm |
| Tooling | Linear/Carousel 8-12 Slots ATC, 9 Vertical Drills (5+4) |
| Vacuum | Multi-zone Vacuum Table with 7.5kW+ Pump |
| Controller & Software | SYNTEC / LNC / OSAI system, Compatible with Cabinet Vision/CV |
| Power & Pressure | 380V/3-Phase, 6-7 kg/cm² Pneumatic, >24 kW Total Load |
| Weight & Structure | Heavy-duty welded steel, 3,800 – 7,000 kg |
Testimonials
“We purchased an ATC CNC Nesting Machine from ElephMax to upgrade our cabinet production line. The machine delivers stable performance even during long production shifts. Material utilization has improved noticeably, and our production capacity has increased by nearly 40%.”
Cabinet Manufacturer | Michael Thompson from Canada“We were looking for a fully automated solution to reduce labor costs, and this Automatic Loading & Unloading CNC Nesting Machine from ElephMax exceeded our expectations. The automatic loading system works smoothly, and the machine runs reliably even during long production shifts.”
Modular Furniture Manufacturer | Ahmed Al-Farsi from the United Arab Emirates“The frame of this 4×8 ATC CNC Nesting Machine is extremely stable, and the cutting precision remains consistent even after months of continuous operation. We mainly produce office furniture, and the machine handles different panel sizes with excellent repeatability. Customer support has also been responsive whenever we needed assistance.”
Office Furniture Factory | Daniel Müller from Germany“We replaced two conventional machines with one Multi-Process CNC Nesting Machine from ElephMax. It now completes cutting, drilling, and grooving in a single setup, which has greatly simplified our workflow. Productivity has increased while reducing labor requirements.”
Kitchen Cabinet Manufacturer | Carlos Ramirez from Mexico
CNC nesting uses advanced algorithms to tightly arrange 2D cutting patterns on a single sheet. It can maximize your material utilization, reduce waste, and shorten cutting time by using algorithms to arrange the components.
The CNC nesting software is a computer-aided manufacturing (CAM) program specifically designed for optimizing material cutting. It can automatically arrange the material, optimize the tool path, drill holes, and plan slots, generate NC code, and manage waste material.
ElephMax CNC nesting machines are compatible with many software, including CV (Cabinet Vision), TopSolid, Haixun, Yunxi, SigmaNEST, Lantek, ProNest, CypCut, etc.
Yes, CNC nesting optimization can significantly reduce material waste and shorten processing time. By true shape nesting, nest-in-nest, and remnant tracking, our CNC nesting optimization can increase your utilization rate of the sheet materials from the traditional 70% to 90%-95%.
To identify if a nesting router has high performance, you can check if it has the following features:
- Stress-Relieved Steel Gantry
- Multi-Zone Vacuum Table
- High-Capacity Rotary Vane Pumps
- Digital AC Servo Motors
- Helical Rack and Pinion
- High-Power Spindle & Automated Tooling
- Rapid Tool Changer
- Automated Material Handling & Control
- Industrial Controls & Software
- Automated Dust Extraction and Safety Sensors
ElephMax can customize the CNC nesting machine solution for you according to your specific requirements.
Generally, for start-up/small-budget workshops that have a limited budget, we recommend Multi-Spindle CNC Router (with Pneumatic Switching). If your business volume is stable and you plan to hire more staff or expand production in the future, we recommend ATC CNC Nesting Routers.
Compared with traditional equipment such as sliding table saws and electric saws, CNC nesting machines have lots of advantages in panel processing.
It maximizes material utilization, integrates workflow, highly improves the production efficiency, enhances processing precision and consistency, allows for flexible design, and saves labor.
Yes. ElephMax always provides installation services and 24-hour online and offline services. Whenever you have issues, we provide comprehensive onboarding support, including detailed video tutorials, interactive remote engineering assistance, and options for on-site commissioning by regional field technicians.
Usually, a fully automated CNC nesting cell typically costs between $25,000 and $250,000+.
However, the price is influenced by multiple factors, including the brand and specification of core components (spindle, drill bank, motors, drives, and CNC controller), automated configuration, bed structure, manufacturing process, Software integration, and after-sales technical support.
