Advantages of ElephMax CNC Foam Router
- Employ a U-shaped gantry frame with a lowered base, easily accommodating large molds.
- Use an overall thickened steel structure to weld the machine frame, followed by tempering and aging treatment, ensuring long-term positioning accuracy.
- Equipped with electrical cabinet cooling systems, which ensure electrical components’ stability.
- The feed rate can reach 15,000-25,000 mm/min or even higher, so the tool can remove the material in a short time.
Professional CNC Foam Router Supplier in China
The CNC foam router is a high-precision automated mechanical device, which is designed for cutting, engraving, and machining various foam materials. It is controlled by computer numerical control (CNC).
As a professional industrial foam cutting machine manufacturer, ElephMax has profound experience in helping foam fabricators, mold manufacturers, sculpture producers, prototype makers, and others improve their machining efficiency. We provide high-performance CNC foam machining solutions all over the world. And now, we have achieved more than 9,000 successful cooperation cases.
Contact ElephMax today to receive the ideal CNC foam router solution tailored to your own production needs!
ElephMax CNC Foam Router Types

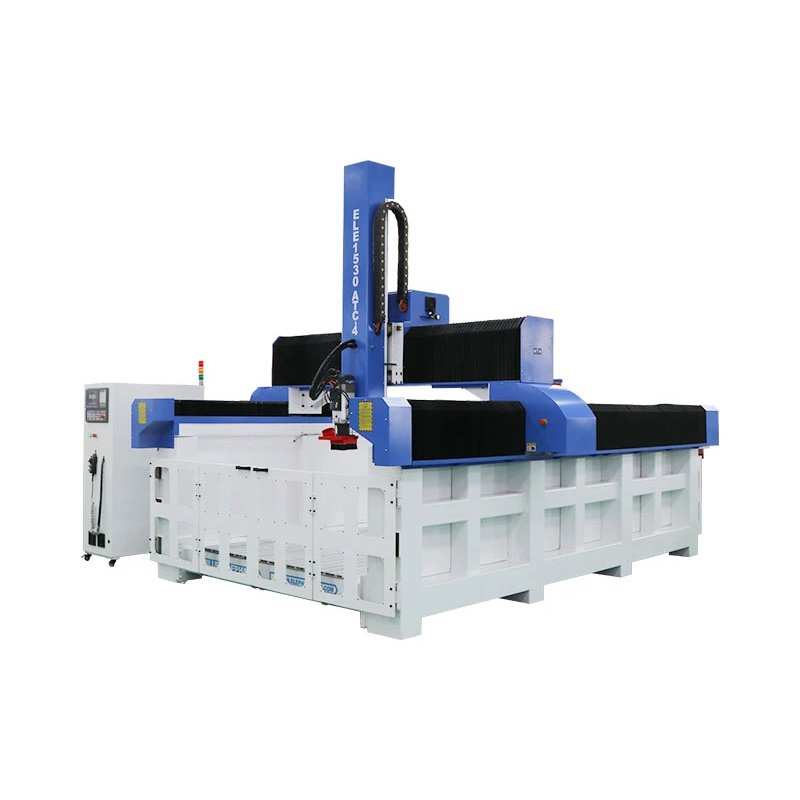

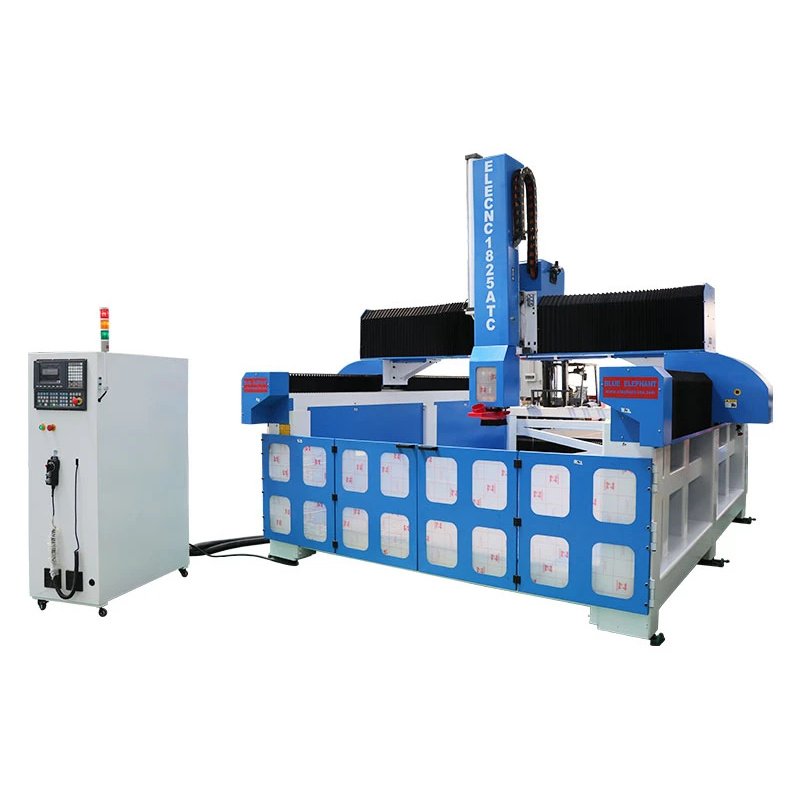

The 1100mm Z-axis clearance accommodates large foam blocks. The 8-tool linear changer handles different carving operations automatically.
The spindle swings 180° for three-dimensional machining. The 1100mm Z-axis allows deep cutting into large foam blocks.

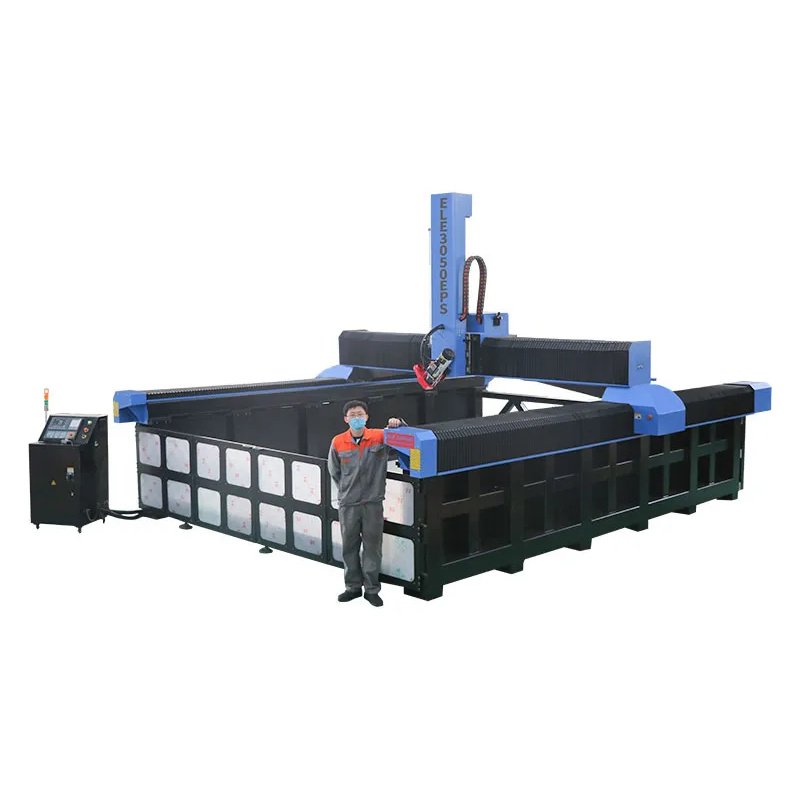

The 3000×5000mm table handles large molds. The 5+4 drilling bank adds vertical hole processing, while the 1100mm Z-axis handles deep work.

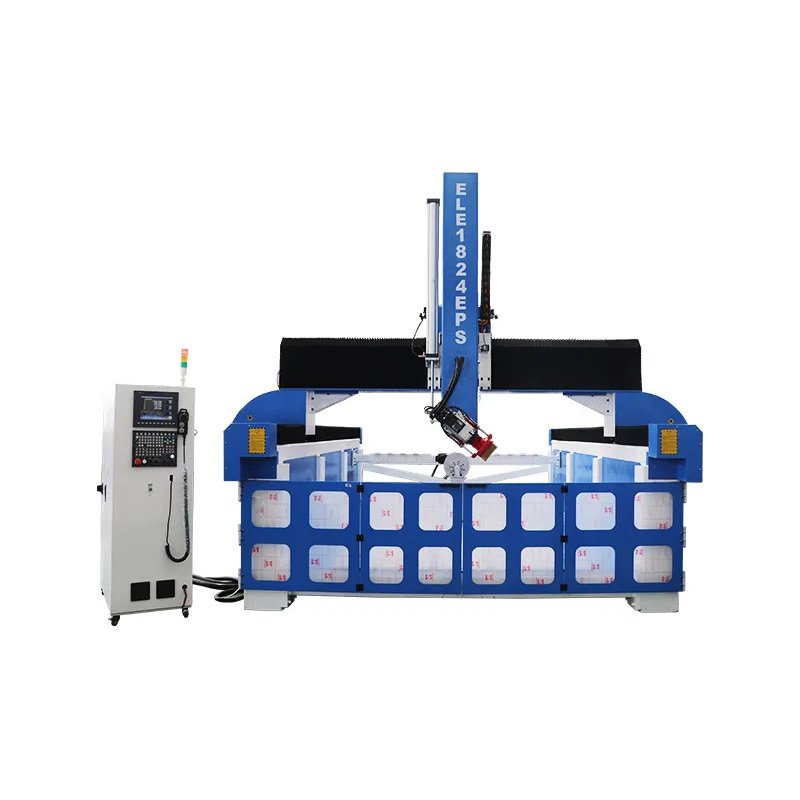

The 1200mm Z-axis handles deep foam blocks. The 8-tool linear magazine switches cutters automatically for different machining operations.
ElephMax CNC Foam Router Features
Supports the use of extremely long ball-end, taper, and foam-milling tapered end mills. Employs cutting tools with large chip-removal grooves to improve chip evacuation.
The matrix vacuum table firmly secures your workpiece with high vacuum force, preventing the displacement of the workpiece during cutting.
Use heavy-duty T-slot aluminum. Combined with mechanical clamps, pneumatic side-presses, or magnetic steel-fixture bases for securing non-standard blocks.
Equipped with a high-speed spindle and high feed speed, minimizing heat buildup, which may cause the foam to melt.

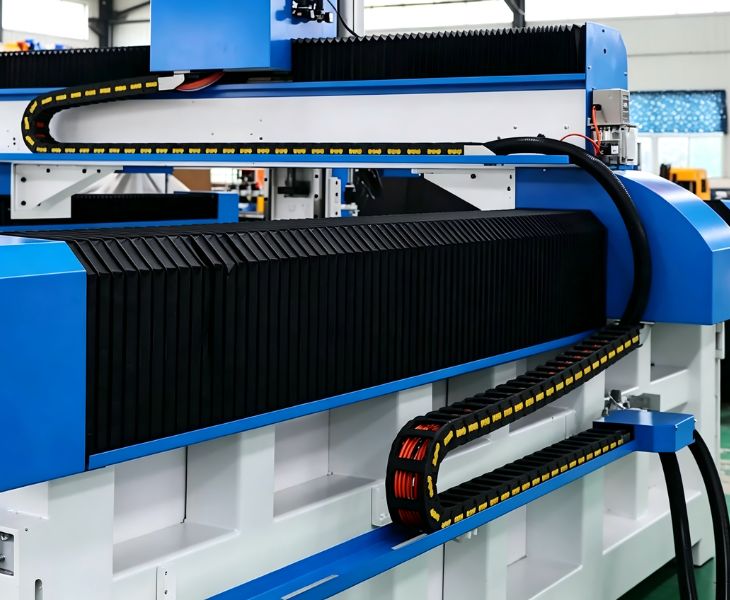

Customized Multi-Axis High-Speed CNC Control System
ElephMax advanced CNC foam routers employ professional-level CNC systems, such as Syntec New Generation, VHB, etc.
This system features power-off continuous milling, tool break protection, processing time prediction, and MPG handwheel fine-tuning functions. Those enable precise control of the tool path at high feed rates.

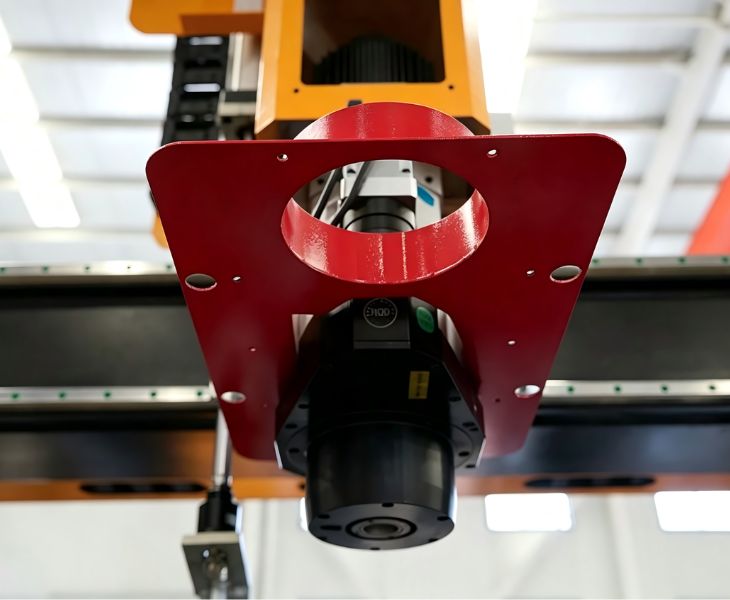

High-Power and High-Torque Servo Motor
To deal with rapid startup and emergency stop, ElephMax CNC foam routers are equipped with high-precision absolute encoder servo drive systems.
For the heavy Z-axis, we add an electromagnetic brake function on the servo motor. This can prevent the tool head from falling and injuring the machine.

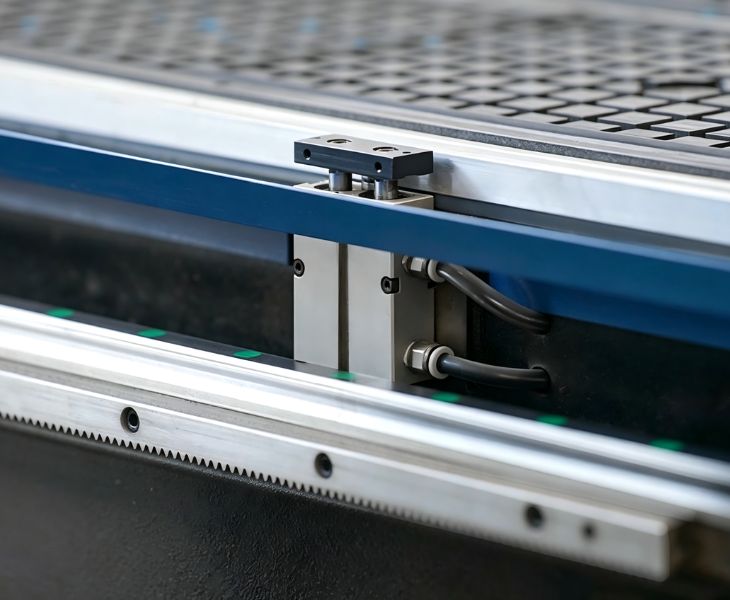

Full-enclosure Dust Collection and Guide Rail Lubrication Protection
To deal with fine airborne particles with strong static electricity generated during cutting, we design dual dust extraction hoods and a high-power industrial vacuum for CNC foam routers.
Additionally, our high-precision linear guides and ball screws are fully enclosed with protective covers and feature automatic timed lubrication systems. This prevents foam residue contamination and reduces wear.
Why Choose ElephMax As Your CNC Foam Router Partner?
ElephMax has over 16 years of experience in producing CNC foam routers. Backed by a 75,000 m² intelligent manufacturing facility, 160 quality inspection procedures, and a team of experienced engineers, we ensure the high performance of every machine.
Beyond providing CNC foam router machines, we offer support throughout your entire machine lifecycle. From free machine analysis based on your foam material, professional workshop layout planning, free software training, to free equipment maintenance consultation, one-year warranty, and 24/7 online and offline multilingual service, we are committed to helping maximize your productivity.
ElephMax CNC Foam Router Applications
You can apply the ElephMax CNC foam router in making automobile body moldings, fiberglass-reinforced plastic (FRP) molds, lightweight sandwich molds, and the commonly used lost foam casting patterns.
By replacing metal with cheaper rigid foam materials, you can develop large and complex molds at a low cost within a few hours.
ElephMax CNC routers for foam cutting are widely applied in manufacturing realistic background props for movies, TV series, and stage plays, giant mascot sculptures in amusement parks, mall interior decoration, outdoor 3D advertising signs, and illuminated letters.
Compared with pure manual carving, our CNC foam routers can reproduce the complex 3D character model in just a few hours.
ElephMax CNC foam routers can be used to customize packaging, such as high-precision optical instrument cases, special-shaped shock-proof foam liners for luxury goods and valuable electronic products.
They can precisely stop at any height and cut complex inner linings with multiple layers and different depth steps. So they fit the thickness of various irregular tools.
You can use ElephMax CNC foam routers to manufacture full-size concept car exterior display models, vehicle interior mock-ups, and aircraft and drone aerodynamic prototypes.
With 5-axis linkage technology, our CNC foam routers can carve out hollow interiors and intricate hyperbolic surface lines on a single large piece of foam, eliminating the need for assembly of small pieces.
In building cornices at the eaves, sculptural art on the facade, high-precision sandboxes and miniature architectural plan models, ElephMax CNC router machine for foam can also play a role. They serve as a lightweight construction alternative, significantly reducing structural load and lowering construction and installation costs.
More About Our Company
- Certifications
- CNC Foam Router Machine Video
- Specification
Each ElephMax CNC router for foam is manufactured in accordance with strict quality management standards. Now we have obtained 120+ patents and certifications, which fully demonstrate our commitment to providing reliable and stable CNC foam router machines.
| X, Y Axis Working Area | 2000 mm × 4000 mm (Customizable) |
| Z Axis Clearance / Travel | 800 mm – 1200 mm (Extra Deep for Large Foam Blocks) |
| Rotary Axis (4th Axis) Diameter | Φ400 mm × 3000 mm (Detachable type for 3D statues) |
| Spindle Power | 9.0 kW / 12.0 kW High-Torque ATC Spindle |
| Spindle Speed (RPM) | 0 – 24,000 RPM (Adjustable to prevent foam melting) |
| Cooling Mode | Air-cooled / Water-cooled |
| Tool Holder Type | ISO30 / HSK60F (Optional) |
| ATC Type & Capacity | Linear ATC or Carousel ATC (8 / 10 / 12 Slots) |
| Tool Length Sensor | Automatic Tool Calibration Tool Setter |
| Extra-Long Tool Compatibility | Supported (Up to 300mm – 400mm foam router bits) |
| Drive Motor & System | Japan Yaskawa / Delta Absolute Servo System |
| X, Y Axis Transmission | High-precision Helical Rack and Pinion |
| Z Axis Transmission | Taiwan TBI Ball Screw (with Electromagnetic Brake) |
| Guide Rails | Taiwan HIWIN / PMI 30mm/35mm Linear Square Rails |
| Max. Rapid Travel Speed | 40,000 – 60,000 mm/min |
| Max. Cutting Feed Rate | 15,000 – 25,000 mm/min (High-speed cutting for foam) |
| Positioning Accuracy | ±0.05 mm (Depending on machine size) |
| Repositioning Accuracy | ±0.03 mm |
| CNC Controller | Taiwan SYNTEC / LNC / Weihong (Supports 4-axis/5-axis linkage) |
| Command Language | G-Code, *.u00, *.mmg, *.plt |
| CAD/CAM Software Support | Mastercam, PowerMill, ArtCAM, Type3, AlphaCAM, etc. |
| Table Surface Type | Vacuum & T-slot Combo Table (High hold-down grid) |
| Vacuum Pump | 7.5 kW / 11 kW Water-ring or Dry-vane Vacuum Pump |
| Dust Collection System | Anti-static Double-bag Dust Collector (3.0 kW – 5.5 kW) |
| Lubrication System | Automatic Oil Lubrication System |
| Working Voltage | AC 380V, 3-Phase, 50Hz/60Hz (Can be customized to 220V/440V) |
| Compatible Materials | Expanded Polystyrene (EPS), Extruded Polystyrene (XPS), EVA, Polyurethane (PU) Foam, Tooling Board (Ren Shape), MDF, Wood, Acrylic, Plastic |
Testimonials
“Surface quality is critical for us. Since we got this ElephMax 5 Axis CNC foam router, it has produced complex curves accurately. This significantly reduces manual finishing and shortens our prototype development cycle.”
Michael TurnerAutomotive Prototype Manufacturer | United States“We purchased industrial CNC foam routers from ElephMax. It runs reliably in our mold production workshop. Its structure is rigid and machining accuracy is also great. This has helped us improve production consistency while reducing rework.”
Luca BianchiComposite Mold Manufacturer | Italy“Our EPS casting patterns are becoming larger every year, so we tried ElephMax large format CNC foam routers. Their large working area allows us to machine full-size foam blocks in a single setup. This greatly improves our production efficiency.”
David WilsonLost Foam Casting Manufacturer | Canada“ElephMax multi-spindle CNC foam router has greatly increased our daily output. And it also maintains consistent quality. Now we can produce decorative columns and architectural ornaments in large volumes more efficiently.”
Ahmed HassanArchitectural Decoration Manufacturer | UAE
How To Choose The Right CNC Foam Router For Your Production?
| CNC Foam Router Type | Key Advantages | Best For |
| 3-Axis CNC Foam Router | Cost-effective, easy programming, ideal for flat surfaces and basic 3D profiles | Standard 2D & 3D foam machining |
| 4-Axis CNC Foam Router | Rotary axis enables continuous machining of columns, statues, and curved parts | Cylindrical and multi-sided machining |
| 5-Axis CNC Foam Router | Simultaneous multi-axis machining, superior surface finish, fewer setups | Complex freeform surfaces |
| Gantry Type CNC Foam Router | High rigidity, excellent stability, supports oversized workpieces | Large-format foam machining |
| Moving Table Type CNC Foam Router | Stable workpiece positioning, high machining accuracy | High-precision medium-sized parts |
| Multi-Spindle CNC Foam Router | Multiple spindles machine several workpieces simultaneously, improving output | Mass production of identical parts |
| Manual Tool Change CNC Foam Router | Lower investment, simple operation, suitable for limited machining processes | Entry-level production |
| Automatic Tool Changer (ATC) CNC Foam Router | Automatic tool changing minimizes downtime and improves efficiency | Continuous multi-process machining |
| Hybrid CNC Foam Router | Processes foam together with wood, plastics, composites, and lightweight materials | Multi-material manufacturing |
Yes. The CNC router for EVA foam is actually designed for the mass production and high output of EVA marine decks, automotive gaskets, and protective interior linings of containers. If you are going to cut EVA foam with a CNC router, it should feature dedicated high-speed spindles, high-volume vacuum hold-down, and a heavy-duty frame, so it is ideal for handling industrial production.
When using a CNC router to cut foam, you need to consider the tooling, speeds, feeds, material hold-down, static and dust control, and machining strategy.
For the tooling, it’s best to choose rotary single-edge aluminum or foam-specific foam cutting bits, avoiding using multi-bladed standard woodworking router bits.
The material hold-down needs high-volume vacuum. If cutting hollow parts, you need a high-density MDF pad or a special PVC pad.
When machining, you need to leave machining allowance for secondary fine carving. And applying climb milling can make a cleaner, burr-free cutting edge.
Yes. The Z-axis travel of a CNC foam router is usually above 800mm – 1200mm, which can realize the one-time milling and forming of large-scale three-dimensional models. And its long tool capacity, high-speed feed rate, and multi-axis linkage enable the CNC foam router to carry out large-scale sculpture, lost foam patterns, full-scale vehicle body quick prototypes, etc. with 3D foam milling.
Usually, if you only need to deal with short-term projects or have no technological accumulation and site reserves, or your workpiece is extremely large in size and requires an industrial 5-axis CNC foam router, finding a third-party CNC foam cutting service may be more cost-effective and reliable.
However, if you are pursuing high-frequency, continuous and stable daily production, and your production is very sensitive to precision and time, purchasing your own CNC foam routers is necessary. This can also protect your business core secrets.
From several thousand dollars to tens of thousands of dollars, the price of a CNC foam router is largely influenced by multiple factors, including the number of axes, complexity, Z-axis clearance, work area, spindle, tool changer type, motors, drivers, transmission, CNC controller, software, auxiliary, and environmental systems.
Yes, ElephMax provides CNC foam router customization service. To deal with large foam blocks, we can elevate the Z-axis travel and the height of the gantry, customize modular large-scale X/Y travel, 5 axis dual-swivel head, add CNC-controlled heating wire and a full-enclosed air duct protective cover, an automatic timed lubrication and dust-proof system, etc. Tell us your requirements, and our professional team will offer a free process analysis and customize a tailored CNC foam router solution for you.
