Rotary Axis CNC Router Manufacturer
ElephMax rotary axis CNC routers are advanced four-axis CNC machines featuring X, Y, Z, and A-axis control. Unlike a true 4-axis CNC machine, the additional A-axis enables continuous 360° workpiece rotation. This allows precise machining of spiral grooves, angled holes, and other complex features that are difficult to achieve with standard CNC routers.
If your factory primarily produces stair railings, Roman columns, table and chair legs, or standard cylindrical carvings, a CNC engraving machine with a rotary axis offers excellent value for money, eliminating the need to pay for an expensive true 4-axis system.
We also offer custom services, providing free lifetime professional technical support, installation guidance, and after-sales service to ensure smooth machine operation throughout your production process. If you have any questions, please feel free to contact us.
Make Money Using ElephMax Rotary Axis CNC Routers
Small rotary CNC router for precise cylindrical engraving, perfect for advertising, crafts, and compact production applications.
This machine features a swing spindle and rotary axis for 2D/3D engraving and cylindrical machining. Supporting custom rotary axis configurations.
Compact 1200×1200mm CNC router with a customizable 200mm rotary axis for both flat panels and cylindrical workpieces.

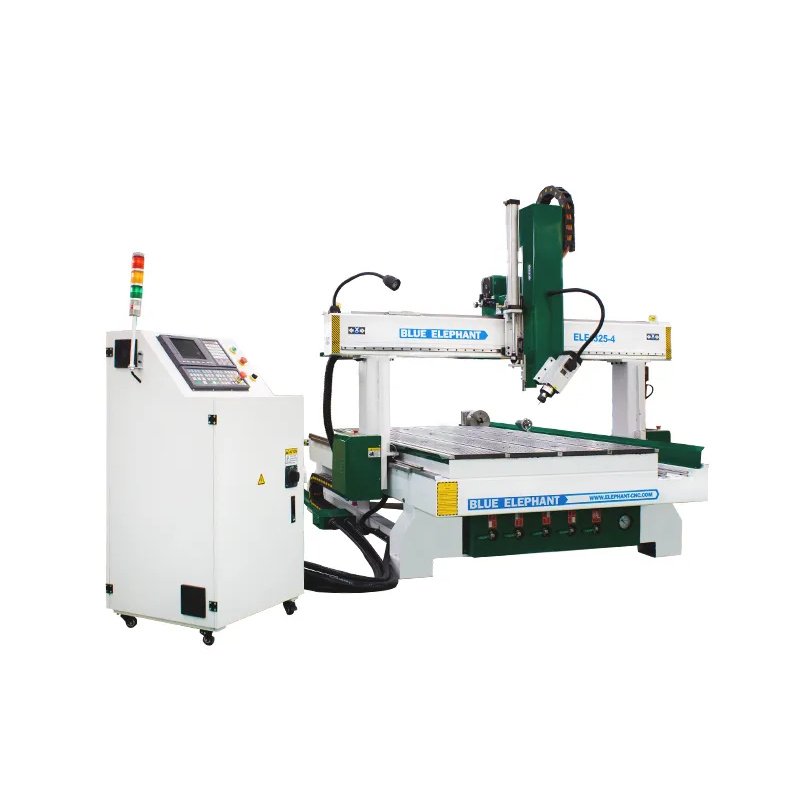

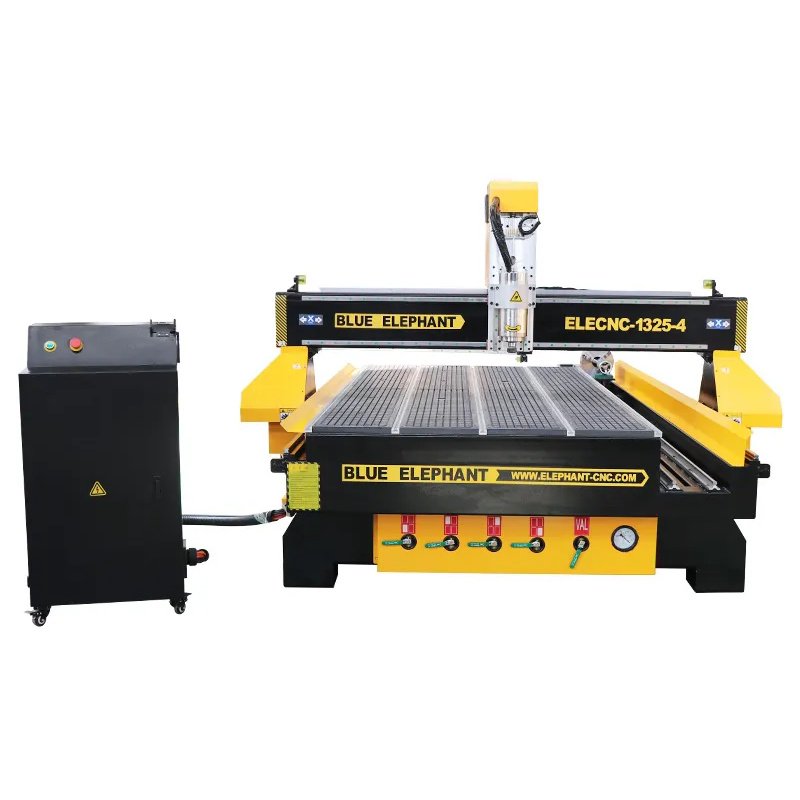

A 4×8 CNC router with a 200mm rotary device for carving cylindrical furniture parts, stair railings, table legs, chair legs, and Roman columns.
An 8-tool ATC and 200mm rotary axis let this 1325 router switch from flat-panel machining to cylindrical carving without manual tool changes.

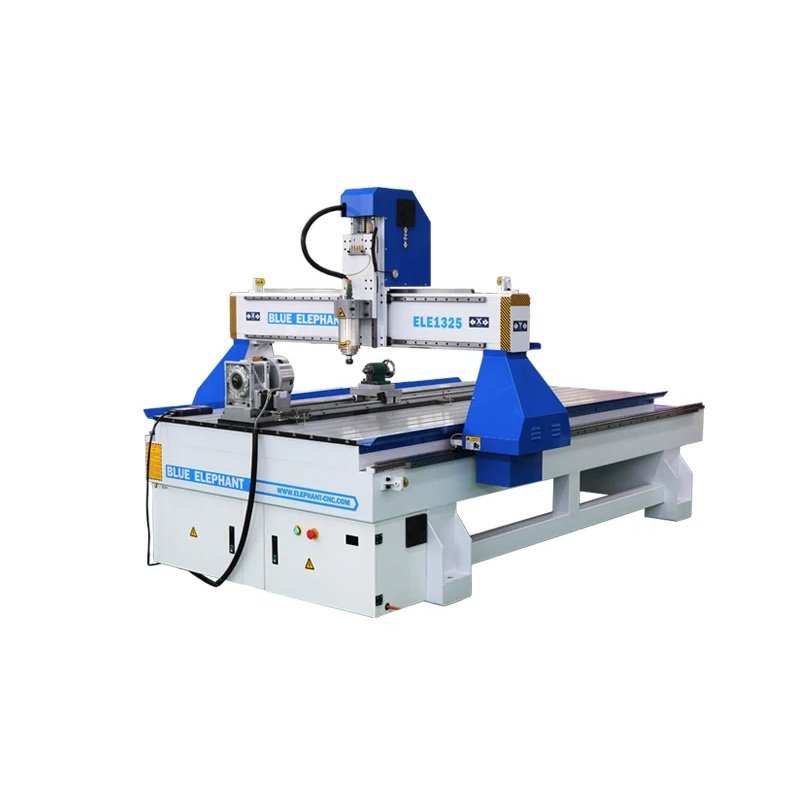

Entry-level 1325 router with a 200mm rotary axis and swingable spindle, bringing cylindrical carving and 3D/4D machining into one woodworking setup.
A 4×8 router built for both flat panels and cylindrical carving, with a ±90° fourth axis for angled 3D woodworking.
Rotary Axis CNC Machine’s Features
The rotary device allows complete surface processing around the workpiece, supporting detailed engraving and decorative carving applications.
Available with an automatic tool changer system to support multiple cutting processes with reduced manual tool replacement.
The rotary axis can be customized according to workpiece diameter, length, and specific production requirements.
Suitable for processing furniture components, wooden crafts, sculptures, handrails, pillars, and decorative elements.

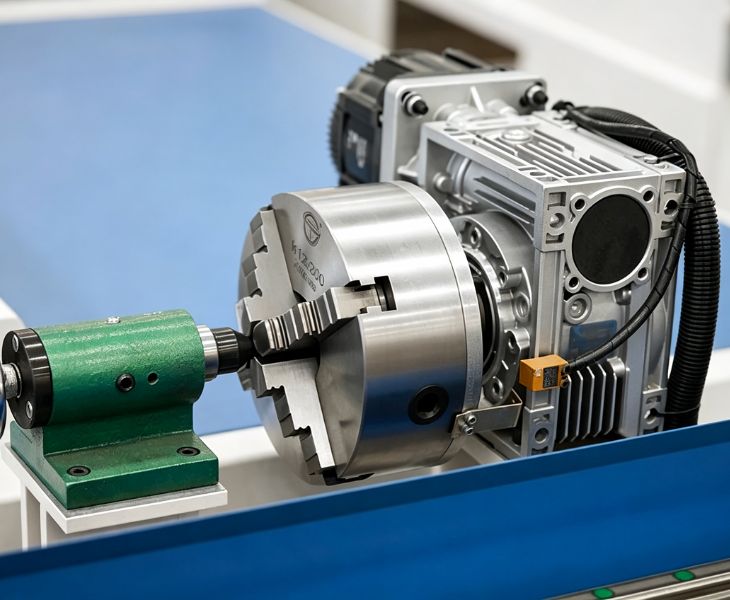

All-in-One Flatbed & Rotary Processing
The ElephMax machine can handle both flat sheets and cylindrical/rotary workpieces ,such as tubes and pipes. Our rotary axis CNC machine eliminates the need for separate flatbed cutters and rotary engravers—significantly cutting your machinery investment. Combining both capabilities into a single system simplifies your workflow and minimizes errors caused by repeated repositioning.Equipped with an intuitive touchscreen control panel, you can switch flat and rotary modes with just a quick tap on the interface.

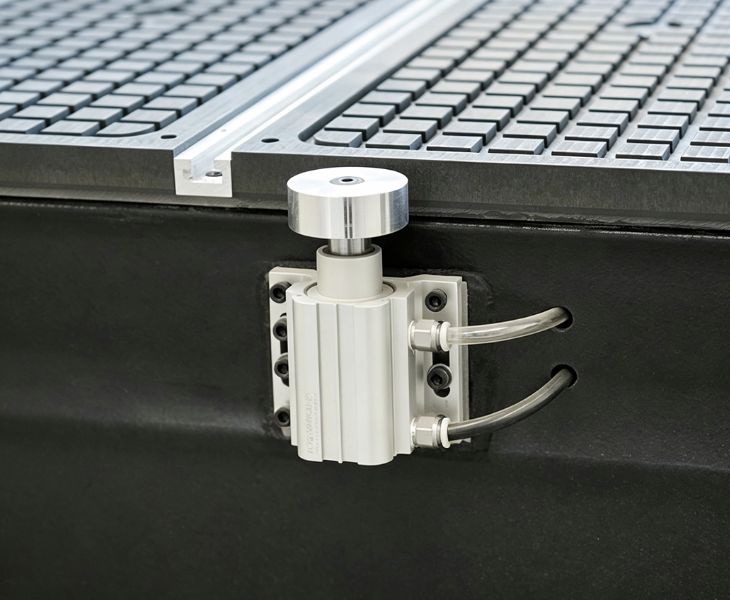

High-Rigidity Low-Bed Working Platform
Featuring a robust welded steel chassis, this rotary CNC system delivers outstanding rock-solid stability during heavy-load cutting, minimizing vibration and frame distortion as much as we can.
Additionally, the low-profile worktable design simplifies the loading and unloading of heavy sheets, making material handling faster, safer, and more effortless.

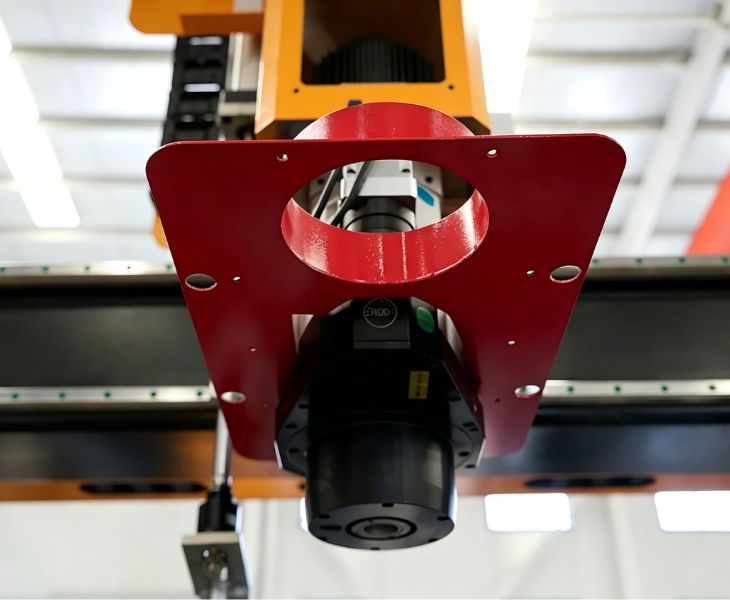

Varieties of Installation and Removal Methods (Flexible Adaptation)
The ElephMax rotary-axis CNC engraving machine is equipped with a rotary axis that offers optional mounting configurations. It can be mounted on the side of the worktable (side-mounted, leaving the flat machining area unobstructed) or fitted as a removable unit on the worktable surface for flexible removal. This makes your configuration flexible to suit machining requirements at any time, facilitating fixturing and loading/unloading.

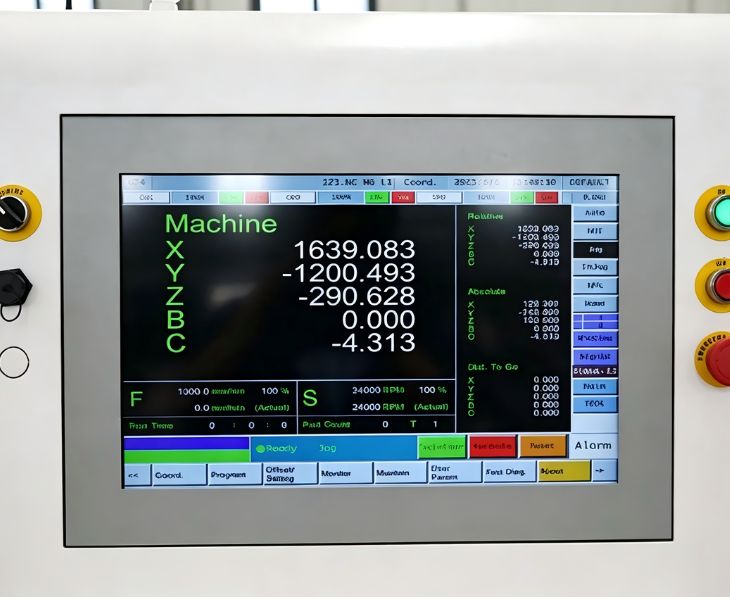

Intuitive CNC Software Operation
Compared with traditional four-axis or multi-axis CNC router, ElephMax rotary-axis CNC routers do not require the use of expensive specialist CAM software (such as Mastercam or PowerMill), nor do they necessitate the hiring of highly paid specialist CNC engineers. Once you have purchased the machine, you don’t need to worry about your staff struggling with drawing or programming. We have configured a variety of control systems available for our rotary-axis engraving machines that support ‘flat-pattern programming’; ordinary joiners or designers can master the operation with just a few hours of training.
Why Buy Directly From ElephMax?
- Over 16 Years of Industry Leadership: Extensive expertise as a trusted manufacturer in the CNC machinery sector.
- Massive Manufacturing Infrastructure: A 75,000 m² state-of-the-art production base featuring 25 dedicated production workshops.
- Expert Technical Team: Over 500 skilled specialists proficient in advanced CNC machinery production and precision control.
- Extensive Global Network: 10 dedicated technical service centers spanning 30 locations worldwide.
- Proven Global Trust: Successfully serving over 5,500 clients across 180+ countries and regions.
- Consistent Service: Delivering reliable large-scale capacity, world-class engineering expertise, and fast-response global support.
Applications of Rotary Axis CNC Routers
Rotary axis wood CNC router machines for furniture are ideal for furniture production that involves both flat panels and cylindrical components. They can process solid wood, MDF, and other materials to create detailed carvings on cabinet parts, table legs, chair legs, and decorative columns.

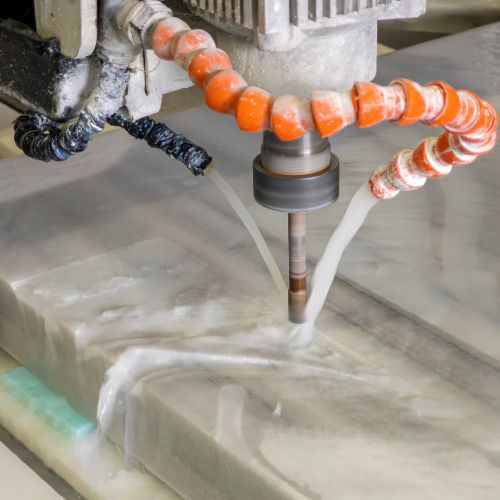

For stone carving applications, rotary axis CNC routers require strong machine rigidity and powerful spindle performance. With a stable structure and high-power water-cooled spindle, our machines support smooth engraving and cutting of various stone materials.
Metal processing requires stable machine structures to maintain machining accuracy. Our rotary axis CNC routers feature a rigid machine body and adjustable spindle speed options, allowing operators to select suitable parameters for different metal materials.
Acrylic processing demands clean edges and smooth finishing. Equipped with high-speed water-cooled spindles, our rotary axis CNC routers provide stable cutting performance for acrylic sheets and decorative components.
For small-batch prototypes and custom models, compact rotary axis CNC routers provide flexible machining capabilities. They support 360° cylindrical engraving and accurate cutting, making them suitable for product samples, crafts, and customized designs.
More About Our Company
- Certifications
- Rotary Axis CNC Routers Video
- Specification
ElephMax CNC machinery strictly adheres to international manufacturing standards. We have obtained over 120 authoritative certifications, such as CE, ISO 9001, BV, SGS , CSA,UL, and TÜV.
| Specification / Property | Value / Details |
| Working Area (X, Y, Z) | 1300×2500×300–600 mm up to 2000×6000×800 mm (Customizable according to processing requirements) |
| 4th Axis Configuration | Rotary Axis, Swivel Head (-90° to +90°), A/B/C Axis Options Available for Multi-Surface Machining |
| Spindle Power & Type | 3.5kW–12kW Air-Cooled / Water-Cooled Spindle; Optional High-Power Spindle for Heavy-Duty Processing |
| Spindle Speed | Up to 24,000 RPM for High-Speed Cutting, Engraving, and 3D Surface Machining |
| Tool Holder Compatibility | ER20, ER25, ER32, ISO30, HSK F63 Tool Holders Available |
| Automatic Tool Changer (ATC) | Linear ATC or Carousel Tool Magazine with 4–12 Tool Capacity for Continuous Production |
| Control System | Syntec, LNC, DSP, Mach3, NC Studio, and Customized CNC Control Systems Available |
| Drive System & Motors | Stepper Motors, Leadshine Servo Motors, Yaskawa AC Servo Motors for High-Speed and Stable Motion Control |
| Rotary Device | Side-Mounted Rotary Axis / Independent Rotary Device for Cylindrical Engraving and Complex 3D Components |
| Work Table Options | Vacuum Table, Aluminum T-Slot Table, Removable Table, Hydraulic Tilting Table Options |
| Maximum Travel Speed | Rapid Travel Speed Up to 80 m/min; Working Speed Up to 60 m/min Depending on Material and Configuration |
| Machining Accuracy | Positioning Accuracy ±0.03 mm to ±0.07 mm for Consistent 3D Carving and Multi-Surface Processing |
| Material Compatibility | Wood, MDF, Plywood, Plastics, Foam, Composite Materials, Soft Metals, Stone, and Other Non-Metal Materials |
| Application Capability | 3D Wood Carving, Furniture Components, Mold Making, Sculpture Processing, Cylindrical Engraving, and Custom Parts Manufacturing |
| Software Compatibility | Compatible with Popular CAD/CAM Software Including PowerMill, UG/NX, ArtCAM, Aspire, and Other CNC Programming Software |
The main difference lies in simultaneous motion. The rotary axis CNC router features a high-efficiency 3+1 rotary system—machining across three axes while using the rotary indexer for precise workpiece rotation. This makes it the ultimate, cost-effective choice for you to use a rotary CNC machine handling woodworking tasks like table legs, columns, and 360-degree cylindrical carvings. In contrast, a true 4-axis machine provides continuous four-axis interpolation for complex 3D surfaces and industrial molds.
If your factory primarily produces stair railings, Roman columns, table and chair legs, or standard cylindrical carvings, the ElephMax CNC engraving machine with a rotary axis is an excellent value-for-money choice, as there is no need to pay for an expensive true four-axis system; however. If you need to machine complex asymmetrical industrial surfaces or 3D models with no blind spots, please choose our high-spec four-axis simultaneous control version.
To ensure optimal performance and ROI,you should focus on these essential specifications:
- Rotary Axis Diameter & Length: Verify the maximum clamping diameter and effective travel length to ensure full-coverage machining of your largest target workpieces without blind spots.
- Spindle Power: Choose 4.5 kW to 6.0 kW (or higher) based on material hardness and cutting speed requirements.
- Motor & Drive System: Opt for Step-Servo or Full Servo Motors over standard Steppers for higher rotation precision, faster speed, and no lost steps under heavy rotary loads.
- Control System: Select reliable controllers like Syntec, NcStudio, or DSP to guarantee smooth multi-axis motion and easy mode switching between flatbed and rotary tasks.
- Bed & Frame Structure: Ensure a heavy-duty welded steel frame to absorb vibration and prevent structural deformation during heavy-load rotary operations.
Yes. A CNC engraving machine equipped with a rotary axis can perform both flat 2D cutting and 3D rotary engraving on the same machine. By switching between the flat worktable and the rotary axis attachment, it can perform 2D cutting, engraving and drilling on sheet materials, as well as produce cylindrical or irregular 3D shapes as a 3D wood carving CNC machine, such as columns, chair legs, sculptures and decorative components.
Thanks to its multi-axis movement and precise rotational control, this machine produces intricate, smooth 3D engraving details and a uniform, consistent surface finish, thereby reducing the need for your extensive manual sanding after machining.
When purchasing rotary CNC milling machines for export, you should focus on three key safety and quality certifications.
- CE certification is a mandatory requirement for access to the European market, confirming that the product complies with the EU Machinery and Electrical Safety Directives.
- ISO 9001 certification ensures that the factory adheres to a rigorous quality control system.
- Finally, for the North American market, electrical components and wiring must comply with UL or CSA standards in order to pass local safety inspections.
When choosing a rotary CNC Machine for your factory, you should consider three factors:
- Workpiece Size: Ensure the clamping range exceeds your material’s diameter and length, leaving extra clearance for fixtures.
- Material Hardness: Choose small to medium machines for wood and plastic, but heavy-duty models for metal and stone.
- Complexity: Standard models (e.g., 1300×2500) suit simple engraving. For complex 3D wrap-around reliefs or asymmetrical surfaces, opt for a high-end 4-axis simultaneous model.
