Advantages of ElephMax Sliding Table Saw
- The sliding table is made by extruding high-strength aluminum alloy and can support a full 4×8-foot sheet of material for smooth linear movement.
- The carriage employs high-hardness round stick rails or linear guides. It has been tested over 2 million reciprocating cycles.
- Equipped with self-cleaning dust-proof brushes, ensuring that the sliding seat has minimal play during repeated movement.
- The main saw blade and the marking saw can be adjusted to an inclination angle ranging from 0° to 45°.
- Equipped with an electronic digital display screen for angle adjustment of the support and display parameters in real time.
Professional Sliding Table Saw Supplier in China
The sliding table saw is a specialized woodworking machine mainly used for precisely cutting large wooden boards, artificial boards, and solid wood. ElephMax has over 16 years of experience in manufacturing sliding table saw machines.
We offer a full range of models, including economical, heavy-duty, precision, and industrial sliding panel table saws. And we customize configurations according to your specific production capacity and processing requirements.
Contact us today for a tailored sliding table saw solution for your business!

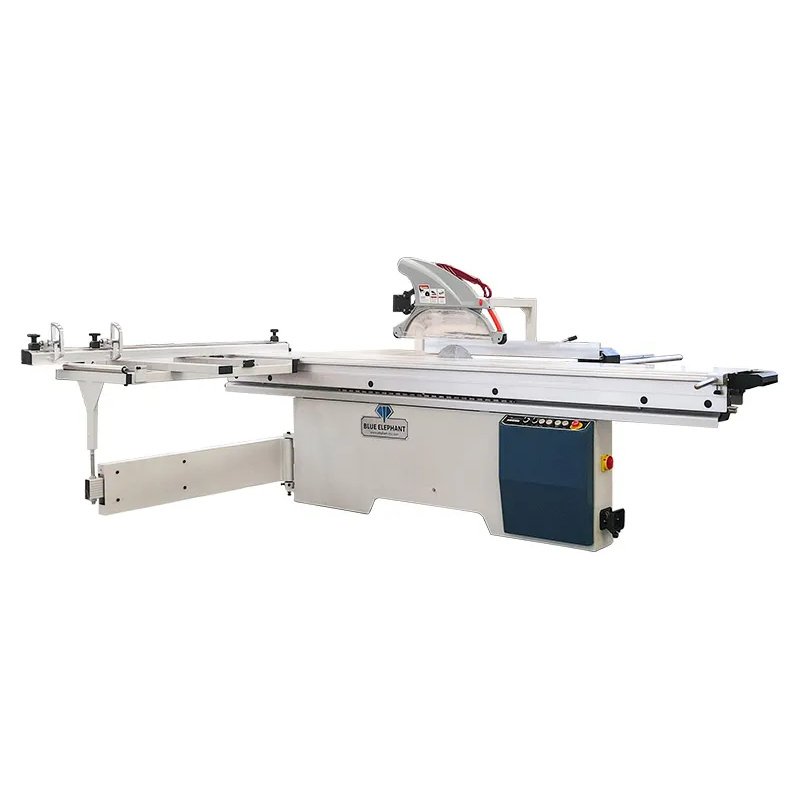

ElephMax Sliding Table Saw Types
A 4200 mm maximum cutting length and fine adjustment for processing diverse wood-based panels.
A 6.6 kW saw system with a European electric sliding table for demanding panel production.
It handles up to 125 mm cutting height with 0°–45° blade adjustment for versatile panel sizing.
Supports 100 mm cutting thickness and dual-blade operation for precise sizing of various wood panels.
Combines low-vibration operation with durable international-brand components for stable processing of plywood, MDF, and solid wood.
ElephMax Sliding Table Saw Features
Has a large steel or cast iron auxiliary platform and a telescopic arm for mechanical support. Can lift and balance the large plates.
Equipped with quick access ports on the surface of the machine body. Allows faster blade replacement and easier maintenance by using just a quick-lock wrench.
The long ruler template installed has a retractable extension rod and is equipped with two or more flip-stop blocks, enabling high-precision, batch, and repetitive length cutting.
The cross-section of the mountain-climbing handle comes with a precise angle scale, and it supports quick adjustment to any angle for diagonal slicing.

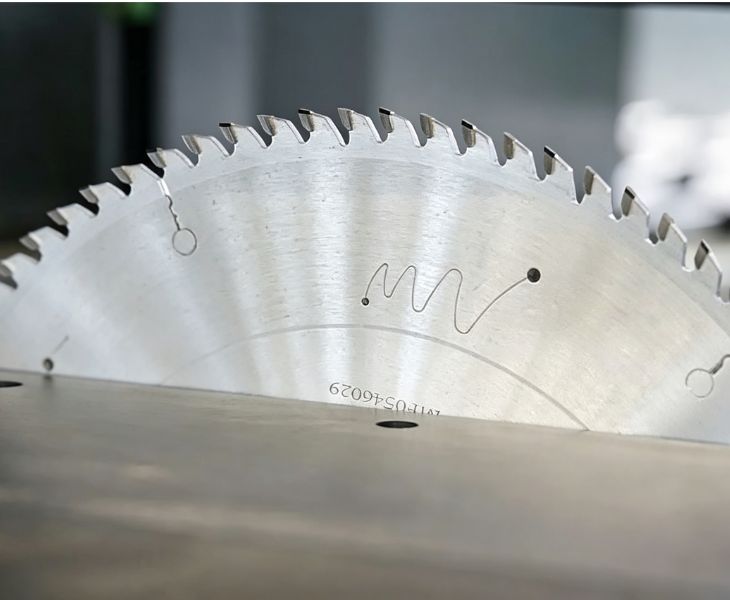

Dual-Blade Scoring System
ElephMax sliding table saws employ a dual-blade scoring system. The main blade has a diameter between 300mm and 400mm. It is driven by a high-power motor of 4kW to 5.5kW, which can smoothly cut through the board.
The scoring blade has a smaller diameter (about 120mm). It is driven by an independent small motor and rotates in the opposite direction at a high speed. It pre-trims a shallow groove of 1–2mm on the bottom surface of the board. This eliminates the problems of fraying at the base of melamine veneer panels and double-sided glued boards.
Enhanced Operator Safety Design
To ensure safety, we design multiple safe features when manufacturing sliding table saws.
First, the ElephMax sliding panel table saw is equipped with a large transparent protective cover suspended by a steel arm. Their internal part integrates an efficient dust collection channel.
Second, there is a riving knife placed behind the main saw blade. It can prevent the cut wood from clinging to the saw blade due to internal stress release, eliminating the fatal wood kickback at its source.
Third, we place prominent and red emergency stop switches at multiple locations. With these features, the operator safety is highly improved.
Why Is ElephMax Your Trusted Sliding Table Saw Manufacturer?
As a professional sliding table saw manufacturer, ElephMax has assisted more than 9,000 customers worldwide in optimizing their woodworking production operations.
We have a 75,000-square-meter intelligent manufacturing plant with advanced CNC equipment, automated production lines, and experienced engineers. With 120 patents and certifications and 160 quality inspection processes, our sliding table saw machines are designed for long-term performance.
If you decide to cooperate with us, we promise to offer 24/7 multilingual technical support and a one-year warranty, ensuring that your production can continue smoothly after delivery.
ElephMax Sliding Table Saw Applications

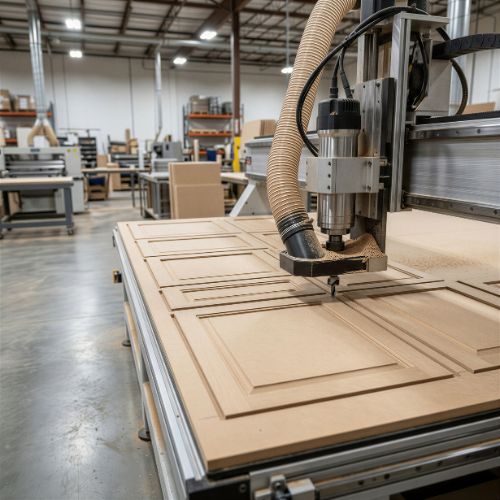

ElephMax sliding table saws are ideal for manufacturing custom wardrobes and integrated kitchen cabinets. With the dedicated scoring blade, they precisely cut through brittle melamine surfaces, ensuring tight, seamless joints during assembly.
You can apply ElephMax sliding table saws for manufacturing wooden wall panels, ceiling panels, flooring, and interior partition boards. Our sliding carriage table saws can ensure exceptional joint straightness. The linear guide rails can make straight cuts over lengths exceeding 3 meters.
ElephMax sliding table saws can be used to quickly cut industrial-grade plywood or thick wood boards into fixed-size components for packaging boxes and shipping pallets. With them, you can quickly complete the cutting of hundreds or thousands of pieces of wood of the same size, which significantly enhances production efficiency.
ElephMax sliding table saws can also be applied in high-precision miter cuts on the shells of wooden instruments or for the fine mortise and tenon joints of wood jewelry boxes. Combined with hold-down clamps, your wood can be firmly locked on the sliding table, and the 45° joint error during cutting is very small.
More About Our Company
- Certifications
- Sliding Table Saws Video
- Specification
ElephMax sliding table saws are all manufactured in accordance with internationally recognized quality management systems and undergo strict inspections during the production process. You can check our certifications below.
| Sliding Table Length | 1600mm / 2800mm / 3200mm (Standard) |
| Max. Cutting Length | 3100mm – 3400mm |
| Max. Cutting Width (Rip Capacity) | 1000mm / 1250mm / 1300mm |
| Max. Cutting Height at 90° | 80mm – 100mm (Up to 155mm) |
| Max. Cutting Height at 45° | 55mm – 75mm (Up to 105mm) |
| Main Saw Blade Diameter | Ø300mm – Ø350mm (Max. Ø450mm) |
| Main Saw Blade Bore | Ø30mm |
| Main Spindle Speed | 3000 / 4000 / 5000 RPM (Adjustable) |
| Main Motor Power | 4.0 kW (5.5 HP) – 5.5 kW (7.5 HP) |
| Scoring Blade Diameter | Ø120mm |
| Scoring Blade Bore | Ø20mm / Ø22mm |
| Scoring Spindle Speed | 8000 RPM – 9000 RPM |
| Scoring Motor Power | 0.75 kW (1 HP) – 1.1 kW |
| Blade Tilting Angle | 0° – 45° (Industrial standard: 0° – 46°) |
| Height & Tilt Adjustment | Manual (Handwheel) / Motorized / CNC |
| Working Voltage | 380V – 415V (3-Phase, 50Hz/60Hz) |
| Dust Extraction Port | Ø100mm (Bottom) + Ø80mm (Top Guard) |
| Net Weight | 650 kg – 1000 kg+ |
| Overall Dimensions | Approx. 3250 × 3350 × 1100 mm |
Testimonials
“We purchased an industrial sliding circular saw from ElephMax to upgrade our cabinet production line. The cutting accuracy is excellent. Even when using large, medium-density fiberboard, the sliding worktable operates very smoothly.”
Michael Thompson | Production Manager of a Kitchen Cabinet Manufacturer from the United States“After comparing several suppliers, we chose ElephMax’s precision sliding table saw. The machine handles plywood and melamine boards with clean, chip-free cuts. Installation guidance was clear, and our operators learned to use it quickly.”
Luca Moretti | Factory Director of a Custom Furniture Manufacturer from Italy“Our company produces wardrobes and office furniture, so we pay lots of attention to cutting precision. The ElephMax heavy-duty sliding table saw has been running every day for more than a year with excellent stability. It is reliable and easy to maintain. The after-sales team also responds quickly.”
David Wilson | Operations Manager of a Panel Furniture Factory from Australia“We integrated ElephMax’s sliding table saw machine into our existing production line. It significantly improved cutting efficiency and reduced manual adjustments. It also works well when processing laminated particle board and MDF.”
Carlos Hernández | Production Supervisor of a Furniture Manufacturing Company from Mexico
The sliding table saw features a movable worktable, making it suitable for large-scale board processing. While the standard table saw is equipped with a fixed worktable and requires manual operation, it is suitable for diversified small-batch operations in small workshops.
| Sliding Table Saw | Standard Table Saw | |
| Material Feeding | The table moves with the material. | The material is pushed manually across a stationary tabletop. |
| Footprint | Massive | Compact |
| Edge Tear-out | clean | High risk of splintering |
| Operator Safety | safe | Higher risk |
| Labor Efficiency | one-man operation | Need more people |
| Price | Higher | Budget-friendly |
If you are not sure which one to choose, contact us, and our team will give a professional solution according to your conditions.
Generally, the price of a lightweight, portable sliding table saw is $500 – $2,500; a standard-sized sliding table saw is $5,000 – $15,000; a high-end, CNC industrial sliding table saw is $15,000 – $35,000+.
However, the sliding table saw price is affected by multiple factors, including the control system (the degree of automation), table length, rail design, dual-blade scoring systems, power, weight, vibration resistance, and some other costs (such as installation and complementary support). You can contact us at any time to obtain a quotation.
You can purchase sliding table saws from OEM suppliers/manufacturers, factories, dealers, machinery brokers, and local distributors.
As a professional sliding table saw manufacturer, we provide factory-direct sliding table saw solutions worldwide. So you can contact us to get a direct sliding table saw solution and a transparent quotation.
Whether buying a used sliding table saw is worthwhile depends on your budget and the quality of the machine.
The depreciation of a used sliding table saw price is usually only 30% to 50% of the original price, so it is a cost-effective choice for buyers with limited budgets. However, there are some risks you need to take care of.
Used sliding carriage table saws usually have no warranty and are at risk of discontinuation and a shortage of spare parts. And if the used machine is severely worn or its PLC control board and the old-fashioned LCD screen are broken, then it may not be worth the investment.
Industrial sliding table saws can be equipped with a variety of attachments to enhance production efficiency, including marking saw units, digital limit positioning systems, pneumatic material clamps, dust removal systems, extended workbenches, roller support devices, and angle cutting devices.
Our engineers can recommend the most suitable configuration solution based on your panel size, production volume, and processing requirements.
Yes, we can offer portable sliding table saws. Most industrial sliding panel table saws are stationary machines, but if you want portable ones, our engineers can customize suitable solutions for you.
