Advantages of ElephMax ATC CNC Router
- The machine enables nearly continuous machining, and the processing time for single boards can be shortened by 30% to 50%.
- Heavy-duty machine construction and industrial servo systems enable stable operation at high feed rates.
- Compatible with mainstream CAD/CAM software, including Alphacam, Cabinet Vision, ArtCAM, Type3, etc.
- Complete cutting, drilling, grooving, pocketing, and engraving without manual intervention.
Professional ATC CNC Router Supplier in China
Unlike ordinary CNC equipment that requires manual shutdown and manual tool replacement, the ATC (Automatic Tool Changing) CNC router can quickly switch between different cutting tools during the processing according to the programmed machining sequence.
With over 16 years of ATC CNC router manufacturing experience, ElephMax has helped 9,000+ customers worldwide upgrade their production capabilities and improve productivity.
From heavy-duty machine frames to precision spindle assembly and controller integration, we carefully inspect every component.
Partner with ElephMax, and we will customize the most suitable ATC CNC router solution for you!
ElephMax ATC CNC Router Types
4×8 bed with 200mm rotary chuck. Carves balusters, table legs, columns. 8-tool changer. LNC2200 4-axis control. Flat work too.
Spindle swings ±90° for 3D molds and sculpture. 8-tool carousel. 400mm Z. 5×10 table. Yaskawa servos. Heavy frame for complex carving.
2000×3000mm bed. 12-tool carousel—largest magazine in series. 500mm Z. ±90° swinging spindle. Heavy frame for extended 3D jobs.

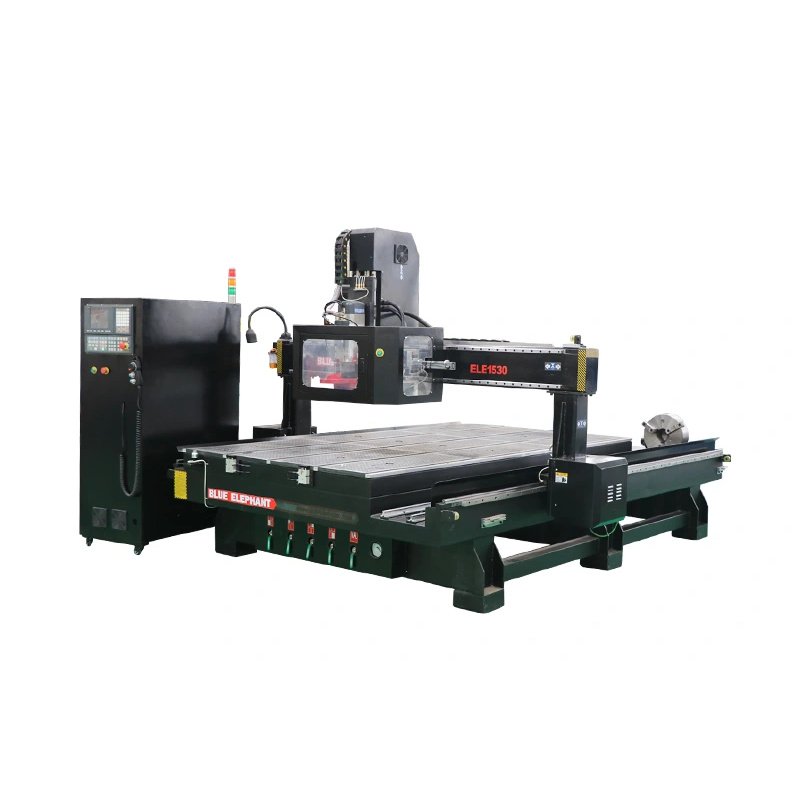

Rotary axis for cylindrical parts—columns, chair components. 8-tool carousel. 200mm chuck. Switch between flat sheet and round stock.
6-meter bed for extra-long panels. HSD spindle. 5+4 drilling bank. Carousel or linear changer. ±0.03mm accuracy on large format work.
7-meter bed. Movable rotary axis—position it anywhere along the table. ±90° swinging spindle. 9 cylinders hold long workpieces. 400mm Z.
ElephMax ATC CNC Router Features
Equipped with high-power vacuum pumps and 6-8-zone vacuum tables, enabling complete and seamless cutting of the entire board.
After each tool change, the machine will automatically measure the length of the new tool on the tool setter and automatically compensate for the Z-axis height.
Equipped with pneumatic positioning pins. Automatically align when the sheet material is placed and pushed down, reducing the time required for manual placement.
The entire machine body is fabricated by welding thick-walled steel pipes and subjected to a rigorous overall tempering treatment to eliminate internal stresses.
Intelligent and Complete ATC System
The core advantage of ElephMax ATC CNC router is our complete ATC system, including the intelligent tool magazine, automatic release, and pneumatic clamping.
The intelligent tool magazine can hold 8 to 24+ tools. It can be divided into two types: linear rack type tool magazine and carousel/disc type tool magazine.
The former is fixed at the tail of the machine bed. It has a simple structure, direct tool change, and high cost performance. The latter moves along with the gantry or spindle, changing tools by servo motor drive. It has a fast tool change speed, suitable for more complex processes.
High-End Powertrain and Transmission System
ElephMax ATC CNC routers always apply advanced hardware configuration. We typically employ 9.0 kW or higher ATC CNC router spindles, with standard ISO30, BT30, or HSK63 automatic tool changing interfaces.
To improve working efficiency, we use large-power servo motors and drivers, featuring closed-loop control, high speed, and large torque.
Besides, our X/Y axes adopt high-precision bevel gear transmission. The Z axis uses a high-precision ball screw, combined with large-sized linear square guide rails, ensuring stability during high-speed operation.
Why Choose ElephMax as Your ATC CNC Router Supplier?
As an experienced ATC CNC router manufacturer, ElephMax has a 75,000+ m² manufacturing facility, with advanced CNC production lines and precision equipment. And we’re backed by 120+ patents and international certifications, giving you confidence in every investment.
At ElephMax, each ATC wood CNC router is designed and manufactured using advanced production equipment and a strict quality management system. We arrange 160+ quality inspection procedures for each machine before delivery. Now, our customer satisfaction commitment is almost 100%, and the repeat purchase rate reaches 42.8%.
ElephMax ATC CNC Router Applications
ElephMax ATC wood CNC routers are ideal for manufacturing cabinets, wardrobes, office furniture, tatami mats, and other cabinetry and panel furniture. Our ATC can eliminate the depth error caused by manual tool changes (within ±0.03mm), ensuring that the furniture assembly is perfectly accurate.
You can apply ElephMax ATC CNC routers in manufacturing large-scale illuminated signs, 3D signs, exhibition display stands, LED acrylic light boxes, etc. They can well handle multi-material mixed processing, such as acrylic, PVC, two-color boards, MDF, etc. And they perform high-precision edge chamfering, eliminating the secondary polishing.
ElephMax ATC CNC routers are widely used for manufacturing solid wood composite doors, paint-free doors, shaker cabinet doors, 3D wave decorative panels, etc.
ATC can completely automate the seamless switching between multiple rough and finishing engraving tools, achieving grading processing. And they highly reduce your labor costs.
You can use ElephMax ATC CNC routers to improve the efficiency of manufacturing non-ferrous metal molds.
Mold manufacturing requires high rigidity and high cutting stability. ElephMax ATC CNC routers can maintain low resonance during high-speed cutting of aluminum or hardwood and minimize chatter marks.
More About Our Company
- Certifications
- ATC CNC Router Video
- Specification
Every ElephMax ATC CNC router is manufactured to meet internationally recognized quality and safety standards. Our certifications reflect our commitment to delivering dependable CNC solutions for manufacturers worldwide.
| X, Y, Z Working Area | 1300 × 2500 × 200 mm |
| Table Size | 1350 × 3050 mm |
| Spindle Power | 9.0 kW (12 HP) High-speed ATC Spindle |
| Spindle Cooling Type | Air-cooled / Water-cooled |
| Spindle Speed | 0 – 24,000 RPM |
| Tool Holder Type | ISO30 / BT30 / HSK63F |
| Tool Changer Type | Linear Type (Fixed at end) / Carousel Type (Rotary on Gantry) |
| Tool Magazine Capacity | 8 / 10 / 12 Positions (Customizable) |
| Tool Change Speed | 5 – 12 Seconds |
| Drive Motors | AC Servo Motors & Drivers (e.g., Yaskawa / Delta / Leadshine) |
| Transmission (X, Y Axis) | High-precision Helical Rack and Pinion |
| Transmission (Z Axis) | High-precision TBI Ball Screw |
| Guide Rails | Linear Square Guide Rails (HIWIN / PMI 25mm/30mm) |
| Max. Rapid Travel Speed | 50,000 – 80,000 mm/min |
| Max. Working Speed | 25,000 – 30,000 mm/min |
| Positioning Accuracy | ± 0.03 mm / 300mm |
| Repositioning Accuracy | ± 0.05 mm |
| Control System | Syntec / LNC / NC Studio (NK300) Industrial Controller |
| Command Language | G Code, M Code |
| Software Compatibility | Alphacam, Cabinet Vision, ArtCAM, Type3, Vectric Aspire, etc |
| Table Surface | Matrix Vacuum Table with T-slot (Combined Table) |
| Vacuum Pump | 7.5 kW Air-cooled Vacuum Pump (Rotary vane / Water ring) |
| Positioning Pins | Pneumatic Pop-up Positioning Pins (3 for X, 2 for Y) |
| Tool Calibration | Auto Z-axis Tool Sensor |
| Lubrication System | Centralized Automatic Oil Lubrication System |
| Dust Collection | 3.0 kW Dual-bag Dust Collector with Hood |
| Machine Structure | Heavy-duty Seamless Welded & Tempered Steel Frame |
| Working Voltage | AC 380V, 3-Phase, 50/60Hz (Optional: AC 220V 3-Phase) |
| Air Pressure Required | 0.6 – 0.8 MPa (6 – 8 Bar) |
| Net Weight (N.W.) | Approx. 2,300 – 2,800 KG |
| Gross Weight (G.W.) | Approx. 2,500 – 3,100 KG |
| Packing Dimensions | 3500 × 2250 × 2300 mm |
Testimonials
“We upgraded from a standard CNC router to ElephMax linear ATC CNC routers. Automatic tool changing eliminated constant manual interruptions. Our production flow is much smoother, and delivery times have become much more predictable.”
Michael Thompson | Cabinet Manufacturer | USA“The ElephMax carousel ATC CNC router has significantly improved our workflow for custom furniture projects. Switching between different tools is fast and accurate. The machine has been reliable since installation, and the support team was responsive throughout commissioning.”
Daniel Carter | Custom Furniture Manufacturer | Canada“We process MDF cabinets every day, and this ElephMax 4×8 ATC CNC router has greatly reduced downtime. The cutting quality is consistent, and the vacuum table keeps large panels firmly in place. ATC CNC router 4×8 is an excellent investment for high-volume cabinet production.”
James Wilson | Kitchen Cabinet Manufacturer | Australia“Our door production involves cutting, hinge pocketing, lock drilling, and profiling. ElephMax heavy-duty ATC CNC router performs all these operations automatically without frequent operator intervention. It has improved both machining consistency and production efficiency.”
Lars Andersen | Wood Door Manufacturer | Denmark“Our business handles a wide variety of retail display projects with frequent design changes. ElephMax linear ATC nesting CNC router adapts quickly to different production requirements while maintaining excellent precision. The software training provided by ElephMax also helped our operators get started quickly.”
Carlos Fernández | Store Fixture Manufacturer | Spain“We chose ElephMax 5×10 ATC CNC router after their professionals’ recommendation. The machine frame is extremely rigid. We appreciate the automatic tool measurement function because it maintains consistent machining quality across different tool changes. Overall, it has become one of the most productive machines in our workshop.”
Ahmed Hassan | Office Furniture Manufacturer | UAE
ATC CNC Router vs Standard CNC Router: What are the Advantages?
Now, more industries replace traditional CNC routers with ATC CNC routers due to their advantages. You can get more details from the chart below.
| Feature | ATC CNC Router | Standard CNC Router |
| Tool Changing Method | Automatic tool changer (ATC) switches tools without operator intervention | Manual tool changes required |
| Machining Efficiency | High—continuous machining with minimal downtime | Moderate—production pauses for each tool change |
| Number of Operations | Cutting, drilling, grooving, engraving, pocketing, and profiling completed in one cycle | Usually requires multiple setups and manual tool changes |
| Production Capacity | Ideal for medium- to high-volume manufacturing | Better suited for small batches or simple jobs |
| Machining Accuracy | Consistent accuracy through automatic tool measurement and calibration | Accuracy may vary after repeated manual tool changes |
| Labor Requirement | Lower—less operator involvement during machining | Higher—frequent operator intervention required |
| Machine Downtime | Reduced by automatic tool changing | Increased due to manual tool replacement |
| Complex Part Processing | Excellent for complex components requiring multiple tools | Less efficient for multi-process machining |
| Automation Level | High—supports automated and smart production lines | Basic automation with more manual operations |
| Return on Investment | Higher for manufacturers with continuous production demands | Suitable for businesses with limited production requirements |
From the comparison, an ATC CNC router can automatically change the tools, minimizing downtime, enhancing production efficiency, and reducing reliance on manual operations. Therefore, it is the preferred equipment for manufacturers dealing with large quantities or complex woodworking projects.
When choosing an ATC spindle for CNC router, you need to consider its power rating, cooling method (air or water), tool holder interface type (ISO30 / BT30 or HSK63F), bearing type (steel or ceramic), smart sensors, safety monitoring, and Variable Frequency Drive (VFD) compatibility.
If you are not sure how to select, you can contact us, and our professional team will tailor a solution according to your specific production conditions.
Usually, the price of an ATC CNC router can range from $5,000 to over $100,000.
This is influenced by lots of factors, including the tool changer mechanism and capacity, spindle power, axis configuration, drive motors, motion transmission, control system, frame rigidity, and some add-ons (such as vacuum bed, automatic loading and unloading nesting system, dust collector, etc.)
ATC CNC routers with different configurations vary a lot. You can tell us your configuration requirements and get a quick and transparent quote.
Before buying an ATC CNC router, you need to determine your production needs first. This decides your table size and spindle. Second, you need to consider the ATC system type, capacity, core hardware, control system, and software compatibility. Third, consider if you require some auxiliary systems such as vacuum pumps to help with your production.
Finally, it’s also important to ensure that your supplier provides a good after-sales service. To let you rest assured, ElephMax always offers complete before- and after-sales services, including future equipment upgrades, professional workshop planning, and free software training. We provide a one-year free warranty and 24-hour online and offline services in multiple languages, ensuring we solve your problems in time.
To deal with high-volume production, you can build an automated nesting CNC line. It is not an isolated machine, but a highly automated processing unit. It can significantly reduce time and save manpower.
The dual-table ATC CNC router is also a good choice. It has two independent vacuum suction work surfaces on the left and right sides, solving the problem of spindle idling caused by manual loading and unloading during long-cycle processing.
Equipped with CNC routers with automatic tool changers can undoubtedly improve your production efficiency. By automatic operation, it significantly reduces the time of manual operation and also avoids human errors. Usually, a worker can easily supervise 2 to 3 assembly line workshops with ATC CNC routers.
Yes. ATC CNC routers can be integrated into your existing automated panel furniture production line.
Once it completes, orders and layout design can be intelligently split by software. Then the automatic labeling machine completes the labeling. The lifting platform helps with auto loading, so the panel is pushed onto the vacuum bed of the ATC CNC router. Then the machine deals with the material. Finally, the pusher sends the processed furniture panels onto the end conveyor belt and cleans the processed area.
