Gaining more knowledge about CNC router maintenance can help you properly maintain the equipment, reducing the risk of equipment failure and downtime. This can enhance your professional credibility and help secure recurring, long-term orders from your customers.
This article will introduce you to the importance of CNC router maintenance and the maintenance points.
Why Is CNC Router Maintenance Important?
CNC routers are one of the largest investments in your workshop and have a high investment value. Maintenance can extend the lifespan of the spindle. With proper maintenance, a CNC router can maintain reliable operation for up to 20 years.
Moreover, the longer your machines operate, the higher the workshop’s income will be. Proper maintenance practices can protect your core investment and ensure continuous profitability. Unprofessional maintenance that causes downtime can damage your profits.
Regular maintenance can also help identify electrical, mechanical, and control system issues before they cause unexpected production interruptions. It can also ensure production quality and stability, prevent unexpected controller errors, and improve the precision of your products.
CNC Router Maintenance Checklist
Due to the different applications and wear levels of your CNC routers, the maintenance priorities also vary. Based on our years of maintenance experience, we have divided the following CNC router maintenance checklist for you according to the cycle.
Daily Maintenance Checklist for CNC Routers
Daily maintenance is the foundation for keeping CNC routers in optimal working condition. Daily maintenance doesn’t take up too much time. You just need these basic daily tasks to prevent small problems from accumulating and detect potential issues in advance, ensuring smooth operation of the equipment.
The main processes include:
- Clean the work area to remove chips, dust and debris. If your CNC router uses a cooling system for special materials, also check coolant contamination. Cleaning the work area helps prevent debris from accumulating and avoids contaminating your products.
- Check the lubrication level. Insufficient lubrication will increase friction, cause overheating, and accelerate the wear of the moving parts of your CNC routers.
- Check the pneumatic air pressure. Pressure fluctuations can affect the accuracy and performance of CNC routers, and may cause deviations during the processing.

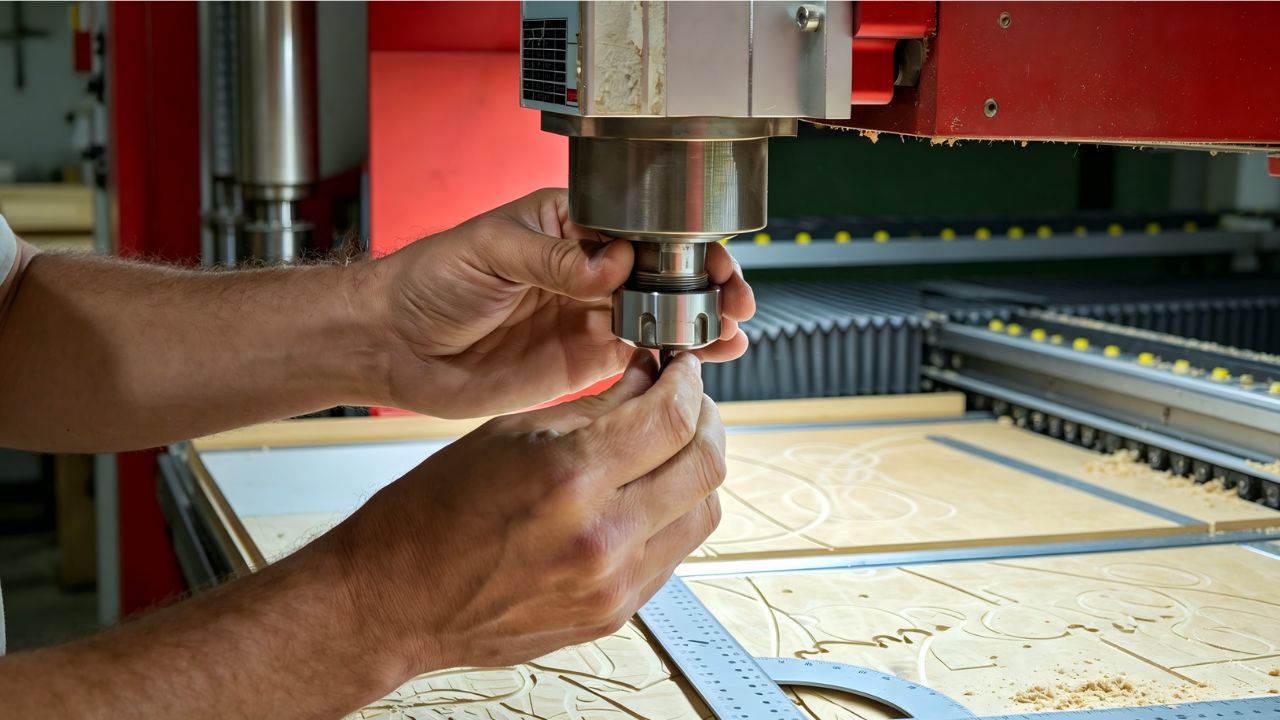

- Check the tool holder and the spindle. You need to ensure that all the tools are securely fastened. Loose or worn-out tools can cause machining inaccuracies and even lead to safety accidents.
- Monitor the air supply system. If the air pressure of your CNC routers is abnormal or the filters are clogged, it will affect the operation of the equipment.
- Check the safety functions. Safety protection devices are crucial for safeguarding the safety of your employees and equipment. Daily inspections can prevent serious accidents from occurring.
Weekly Maintenance Checklist for CNC Routers
Weekly maintenance can help you identify potential problems in advance, preventing minor malfunctions from escalating into costly downtime. You can refer to the following points:
- Clean and inspect the automatic tool changer (ATC). While cleaning the debris in the tool compartment, you should also check the tool holder for signs of wear. This will ensure smooth tool changing for CNC routers, and also prevent machining inaccuracies and reduce the risk of tool holder failure.
- Check the spindle cooling system (for water-cooled spindle models). Ensure coolant level, water quality and hoses are normal to prevent spindle overheating. You should also pay attention to whether the coolant is sufficient; otherwise, it may cause overheating, which will affect the quality of the finished products.
- Inspect the belts and pulleys. Worn and loose belts can cause operational instability, reducing the cutting accuracy of your CNC routers and the overall performance of the machine.
- Test the lubrication system. This maintenance measure is mainly to ensure that the oil supply of the system is normal. Adequate lubrication can reduce the friction and wear of the moving parts of your CNC routers.
Semi-Annual Maintenance Checklist for CNC Routers
Certain internal components are often overlooked by operators, but they are critical to the long-term efficiency of your CNC routers. Given their lower wear frequency, these components should be inspected on a semi-annual basis.
- Inspect the ball screw and bearings. You should pay attention to any signs of wear such as unusual noises, or excessive backlash, and re-lubricate as needed to reduce friction.
- Check the spindle cooling system and clean the water chiller filter (for water-cooled spindle machines). This is to prevent the CNC router from overheating during use and to maintain a certain temperature.
- Check the drive system. This mainly involves checking whether the motor rack-and-pinion systems, linear guide blocks and servo motor couplings are worn out. Regular inspections and problem-solving can prevent operational failures.
- Test the air supply system. You should mainly check whether the air filter and drainage system are clogged. The smoothness of the air pipeline is very important for the pneumatic components.
Annual Maintenance Checklist for CNC Routers
The annual maintenance focuses more on comprehensive maintenance to ensure that your CNC routers are in the best operating condition. Ordinary operators may not be able to meet such professional and technical maintenance requirements. Therefore, it is recommended that you have professional technicians carry out the annual maintenance.
- Overall machine calibration. This is to ensure that all the axes, movements and cutting paths are accurate; otherwise, it will affect the precision of your final product.
- Measure the spindle. By measuring the deviation and vibration level of the spindle, the wear condition and location of the spindle can be determined, thereby preventing further damage.
- Replace worn parts. Replacing worn parts such as seals and pressure components can help you reduce the risk of failures and extend the service life of CNC routers.
- Update the software. Updating the system software can enhance the performance of CNC routers and fix some issues. It is beneficial for the iterative improvement of your products.
Additional Considerations for CNC Router Maintenance Services
CNC Router Maintenance Efficiency
If you develop an efficient and time-saving maintenance plan, you can reduce the impact of equipment maintenance on production.
Most of the maintenance processes for CNC routers do not take a long time. For instance, adding lubricating oil to the rack and bearings only takes a few minutes. The less time-consuming maintenance tasks can be carried out during off-peak periods when there are fewer orders.
Therefore, by planning maintenance schedules, conducting preventive maintenance and preparing spare parts, you can enhance your maintenance efficiency.
CNC Router Maintenance Techniques
Modern CNC routers feature automated system logs that track operational data and flag maintenance alerts. Good maintenance techniques can enhance your professionalism, such as using system logs for inspection and data analysis.
Recording maintenance activities, issue histories, and resolutions helps reduce the likelihood of unexpected complications.
FAQ
Which CNC Router Maintenance Can Operators Do, and Which Require Professionals?
Daily cleaning tasks, checking the levels of lubricating oil and coolant, the cleanliness of the tools, and checking for any abnormal sounds and conducting safety tests can be carried out by your operators.
However, for semi-annual and annual maintenance, such as precision calibration, spindle inspection, internal inspection of the electrical cabinet, system software updates, and replacement of key components, it is recommended to have these tasks performed by professional technicians.
How Can You Identify Warning Signs That Your CNC Router Requires Professional Repair?
When the following situations occur with the CNC router, you should be vigilant:
- Abnormal vibration occurs
- Burn marks, burrs or poor surface finish appear on the edges of the processed products
- There is an abnormal noise from the spindle
- The suction force of the vacuum suction table weakens
- The control system repeatedly displays the same warning code
What Methods Are Used to Back Up Software Updates and Controller Parameters?
To ensure the security of data and the system, you can upload all machine data via RS232 or Ethernet, or back up the machine data to a USB storage drive for preservation.
In addition, the dedicated management software provided by the supplier can be used to connect the machine via a PC, enabling the upload, download and archiving management of parameters.
Will Machine Failures Caused by Negligent Maintenance Void CNC Router Warranty?
It is highly likely, since most suppliers require customers to follow the recommended maintenance procedures.
If the CNC routers of yours were directly caused to fail due to maintenance oversights such as insufficient lubrication, cleaning, or replacement of consumables, your warranty claim may be rejected. Your repair expenses may increase significantly.
Which Key Spare Parts Should Be Stocked to Minimize Machine Downtime?
You can prepare all kinds of frequently used consumables and easily damaged parts in advance. For common consumables, it is recommended that you have various types of air filters, lubricating oil, and the specified lubricating grease by the supplier.
The easily damaged parts that need to be prepared include the spindle chuck, transmission belt, sealing ring and bearings.
There are also some electrical spare parts such as servo motor brushes, fuses, and relays. You can stock the compatible models as needed. This way, when there is a loss, you can replace them quickly, effectively reducing the downtime of the equipment.
